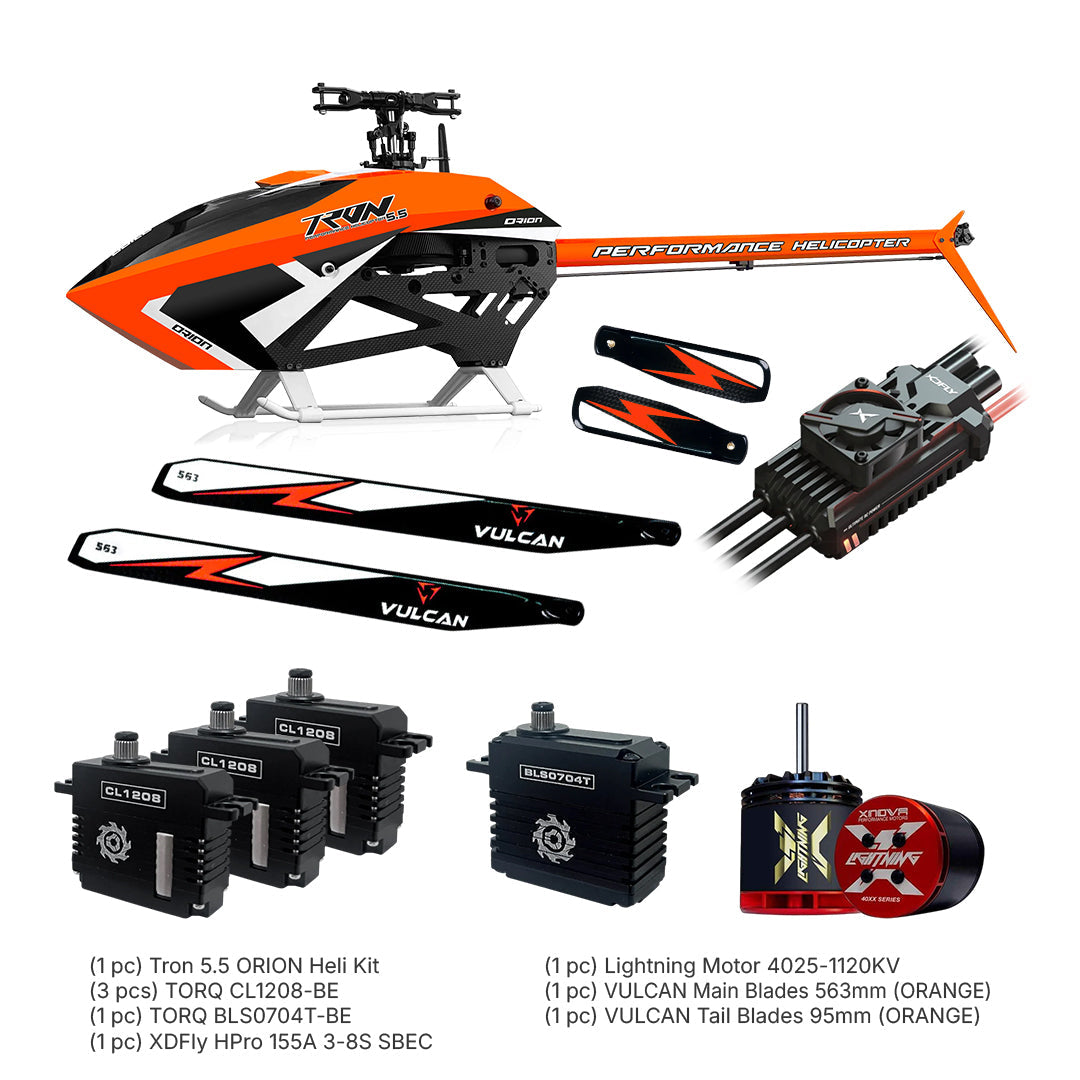

Tron 5.5 ORION Helicopter Kit (TR550-989) Combo

Tron 5.5 ORION Helicopter Kit (w/o Blades) (TR550-989) Combo

*** Included:

TRON-ORION  *1
CL1208-BE *3
BLS0704T-BE *1
1011550 *1
XN40251120L-A *1

VMB-563OR *1

VTB-95ORG *1

1/ Tron 5.5 ORION Helicopter Kit (w/o Blades) (TR550-989):

*** Features:
- Complete new upper and lower frame design and layout
- New redesigned larger main blade grips
- 100% full carbon frames
- New adjustable tail belt tensioner, which eliminates tail belt slap
- 3 large bearings for better main shaft support eliminating the need for a 3rd bearing block
- New larger CNC aluminum battery tray
- New tail servo mounting position with aluminum adapters for full or mini size servos
- Redesigned center hub and head dampeners
- Redesigned all metal swash plate, programmable to increase or decrease flight response
- Redesigned battery compartment layout allows for easier battery insertion and removal
- New motor mount design for ease of pinion replacement and/or motor maintenance
- New motor mount CNC frame stiffeners for increased frame support and rigidity
- Higher boom mounting position for improved CG allowing for more axial rolling maneuvers
- Overall larger appearance/size compared to original 5.5 without a significant increase in weight
- New massive 14mm one way bearing design for maximum durability and reliability
- New extremely durable and quiet 18mm CNC main gear (137T)
- Redesigned and painted tail fin (no more stickers)
- New painted tail boom
- Design incorporates additional room for electronics allowing for perfect fore/aft CG location
- Supersonic canopy mounts included in kit
- Two completely styles available: Orion and Gemini (different canopy style and lower main frame)
*** Specifications:
- Main blade size / 550-560MM ( not included )
- Tail blade size  / 92-97MM ( not included )
- Dry weight / (1400) grams without blades and electronics
- 3 different tail gear ratios available: 18,19,20 teeth ( stock=19T rear pulley and 80T front pulley = 4.21 tail rotor ratio)
- 13,14,15,16,17T motor pinion available with 6mm bore. ( stock = 14T included = 9.78 ratio)
2/ TORQ CL1208-Black Edition Mini HV Coreless Servo
*** Features:
- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design
*** Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V
*** Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V
*** Specifications:
- Motor Type: Coreless Motor
- Servo Arm Type: Futaba
- Weight: 40g
- Operating Voltage: 6.0V - 8.4V DC
- Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
- Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
*** Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.
3/ TORQ BLS0704T-Black Edition Full Size HV Brushless Rudder Servo:
*** Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
*** Speed:
0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V
*** Torque:
8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V
*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
*** Usage Note:
For helicopter rudder usage only. Please note that the TORQ BLS0704T-BE servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.

4/ XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class:
*** Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
*** Specification:
- Model:    HPRO 155A 3-8S SBEC
- Continuous Current(A):    155A
- Burst Current(A):    260A
- Input Voltage:    3-8S Lipo
- BEC Output:    6-12V Adjustable; Current Cont.10A, Peak 35A
- Size:    90x43x25mm
- Weight:    178g
- Power Wire:    10 Gauge 145mm Red/Black
- Motor Wire:    10 Gauge 150mm Black
- Programming Way:    XDFly Android&iOS APP/VBCT/E/RF2/Jeti
- Telemetry:    VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
- Applications:    550-580 Class electric helicopters or fixed-wing aircrafts
6/ Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A:
*** Xnova brushless high performance outrunner motor for 520-600 size helicopters for extremely hard 3d flying on 6s. Extreme powerful motor for Goblin 570, Synergy E5 - E6, T-rex 600 or Logo 500 up to Logo 600.
- Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
- Optimized and unique design, hand wound to perfection
- Smooth running, low cogging torque.
- New type of higher degree magnets.
- All other features same as performance series.
7/ VULCAN ROTORS Precision Main Rotor Blades 563mm (ORANGE):
*** Specification
- Length : 563 mm
Width : 54 mm
Root : 12 mm
Bolt Hole : 4 mm
Weight : 148 gr
Washer : 2 x 1mm
*** Description:
The Vulcan Rotors RC helicopter blades are a top-tier product crafted by the renowned Italian designers Stefano Lucchi and Massimo Bruttini. These blades are meticulously engineered from the ground up to cater to the demanding needs of 3D pilots, offering an exceptional blend of performance, agility, and stability.
*** Features:
1. Optimal Performance for 3D Pilots:
– Specifically designed to enhance the performance of 3D flight, ensuring that pilots can execute complex maneuvers with ease and precision.
2. Enhanced Flight Time:
– The blades are engineered to consume less power, allowing pilots to enjoy longer flight sessions without the need for frequent recharges.
3. Super Reactive:
– These blades are incredibly responsive, providing an agile feel that enables quick and precise control during flight.
4. Stability in Hard 3D:
– Despite their agility, Vulcan Rotors blades maintain remarkable stability, making them ideal for hard 3D flying. Pilots can push their helicopters to the limit without losing control or precision.
5. Italian Design Excellence:
– Designed by Stefano Lucchi and Massimo Bruttini, the blades embody Italian craftsmanship and innovation, ensuring a high-quality product that meets the rigorous demands of professional 3D pilots.
With Vulcan Rotors blades, pilots get a perfect combination of extended flight time, exceptional reactivity, and unwavering stability, making them a must-have for anyone looking to elevate their 3D flying experience.

8/ VULCAN ROTORS Precision Tail Rotor Blades 95mm (ORANGE):
*** Technical Features:
- Length : 95 mm
- Width : 26/29 mm
- Root : 5 mm
- Weight : 6 gr
- Bolt Hole : 3 mm
*** Description
The Vulcan Rotors RC helicopter blades are a top-tier product crafted by the renowned Italian designers Stefano Lucchi and Massimo Bruttini. These blades are meticulously engineered from the ground up to cater to the demanding needs of 3D pilots, offering an exceptional blend of performance, agility, and stability.
*** Features:
1. Optimal Performance for 3D Pilots:
– Specifically designed to enhance the performance of 3D flight, ensuring that pilots can execute complex maneuvers with ease and precision.
2. Enhanced Flight Time:
– The blades are engineered to consume less power, allowing pilots to enjoy longer flight sessions without the need for frequent recharges.
3. Super Reactive:
– These blades are incredibly responsive, providing an agile feel that enables quick and precise control during flight.
4. Stability in Hard 3D:
– Despite their agility, Vulcan Rotors blades maintain remarkable stability, making them ideal for hard 3D flying. Pilots can push their helicopters to the limit without losing control or precision.
5. Italian Design Excellence:
– Designed by Stefano Lucchi and Massimo Bruttini, the blades embody Italian craftsmanship and innovation, ensuring a high-quality product that meets the rigorous demands of professional 3D pilots.
With Vulcan Rotors blades, pilots get a perfect combination of extended flight time, exceptional reactivity, and unwavering stability, making them a must-have for anyone looking to elevate their 3D flying experience.
