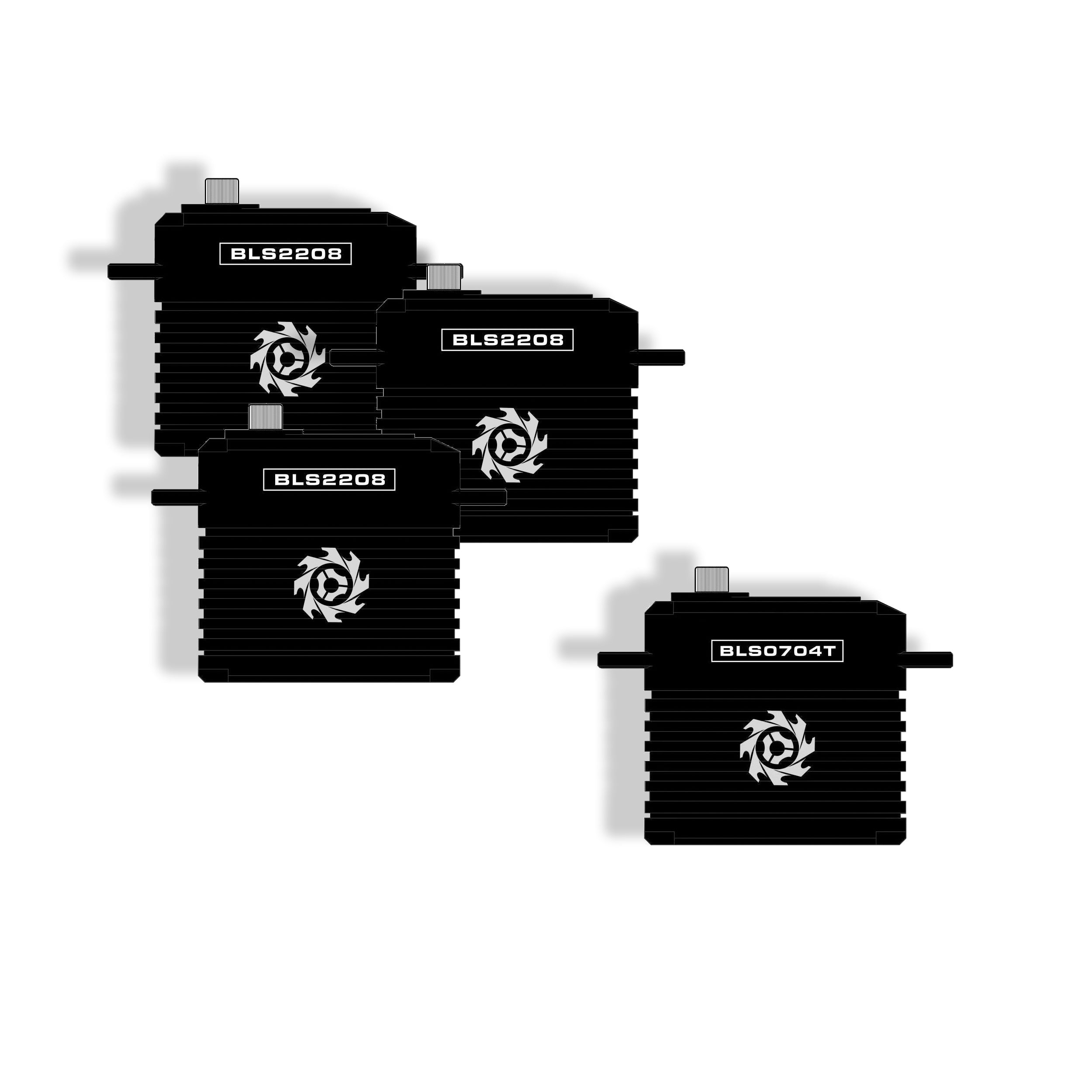

Torq BLSBE Combo - Brushless Fullsize Black Edition Servo Set

Includes :

• TORQ BLS2208-BE x 3
• TORQ BLS0704T-BE x 1

BLS2208-BE Spec:

Speed:

• 0.07 sec / 60° @ 8.4V
• 0.08 sec / 60° @ 7.4V
• 0.09 sec / 60° @ 6.0V

Torque:

• 25Kg.cm / 347.18 oz in. @ 8.4V
• 22Kg.cm / 305.52 oz in. @ 7.4V
• 18Kg.cm / 249.97 oz. in. @ 6.0V

Specifications:

• Motor Type: Brushless
• Servo Arm Type: Futaba
• Working Frequency: 1520us / 333Hz
• Weight: 78g
• Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
• Voltage Range: 6.0V - 8.4V

BLS0704T-BE Spec:

Speed:

• 0.035 sec / 60° @ 8.4V
• 0.040 sec / 60° @ 7.4V
• 0.045 sec / 60° @ 6.0V

Torque:

• 8.0Kg.cm / 111.09 oz. in. @ 8.4V
• 7.0Kg.cm / 97.21 oz. in. @ 7.4V
• 6.0Kg.cm / 83.32 oz. in. @ 6.0V

Specifications:

• Motor Type: Brushless
• Servo Arm Type: Futaba
• Working Pulse Width / Frequency: 760us / 560Hz
• Weight: 78g
• Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
• Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested if you use our servo on Nitro Heli.
