Tron 5.8 HERITAGE Helicopter Kit - Gray/Neon Yellow - Combo

Tron 5.8 HERITAGE Helicopter Kit (w/o Blades) - Gray/Neon Yellow - Combo

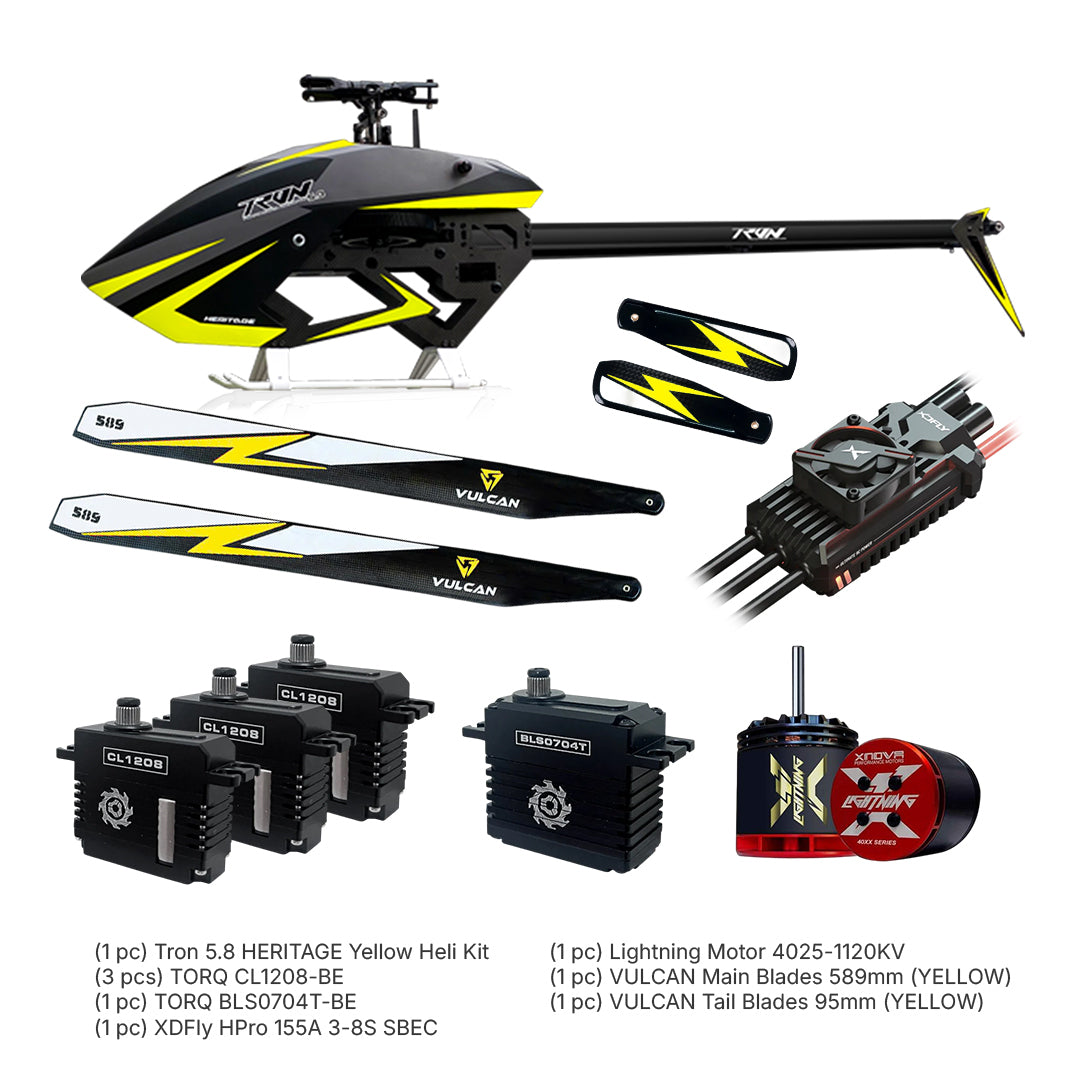

*** Included:

TR580-998 *1
CL1208-BE *3
BLS0704T-BE *1
1011550 *1
XN40251120L-A *1
VMB-589Y *1
VTB-95YL*1

1/ Tron 5.8 HERITAGE Helicopter Kit (w/o Blades) - Gray/Neon Yellow:
- Recommended main blade size 580mm. (550mm - 610mm possible). Tail blade size 86 - 95 mm.

- Supersonic canopy mounts included in kit. ( Backside )

- Semi Fusion edition design included in kit. ( frame and tail fin stickers )

- Wide battery compartment with quick lock and release system. (Same as Tron 5.5.)
- Light, yet very stiff and robust.

- Dry weight= 1530 grams without blades and electronics.

- Full-size tail servo.
- Mini or full-size cyclic servo option. (Adapters included in kit)

- Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.

- Compatible with  a wide range of motor sizes.  4020, 4025 or 4225 series. From 1000KV-1350KV for 6s and 560KV for 12S ( 6mm shaft diameter with min 15mm lenght required )

- 16T/6mm motor pinion included. (13,14,15,17T optional available)

- POM-CNC machined main gear 137T / mod 0.9 which provides very efficient operation.

- 3th bearing support for main shaft.

- Heavy duty one way bearing and hub design.

- Innovative FBL tray. ( Adjustable dampening hardness)

- Octa boom design with oval side shapes, no boom supports needed.

- Capable to use a wide range of lipo batteries. 6,8,10 or 12S. ( 6S-5000mAh to 5500mAh recommended or 12S- 3300mAh stick pack )
- Perfectly thought-out servo layout in conjunction with the FBL system and ESC.

- Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.

- High visibility canopy for perfect orientation in flight. 2 option available.

- Sustainably produced.

*** Features at a Glance:
- Optimized servo and rotorhead geometry

- Accepts full size & mini size cyclic servos

- Adjustable dampened gyro mounting tray

- Bearing supported motor pinion system

- Octo boom without boom supports

- High visibility canopy & fusion style decals

- Supersonic rear canopy mounts

*** Specifications:
- Main Blade Length: 580-610mm
- Tail Blade Length: 85-96mm
- Motor Drive Gear: 16T
- Main Drive Gear: 137T
- Autorotation Tail Drive Gear: 80T
- Tail Drive Gear: 19T
- Drive Gear Ratio: 8.563:1:4.21
- Weight (Airframe Only): 1530g

2/ TORQ CL1208-Black Edition Mini HV Coreless Servo
*** Features:
- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design
*** Torque:
13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V
*** Transit Speed:
0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V
*** Specifications:
- Motor Type: Coreless Motor
- Servo Arm Type: Futaba
- Weight: 40g
- Operating Voltage: 6.0V - 8.4V DC
- Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
- Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)
*** Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.
3/ TORQ BLS0704T-Black Edition Full Size HV Brushless Rudder Servo:
*** Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction
*** Speed:
0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V
*** Torque:
8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V
*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
*** Usage Note:
For helicopter rudder usage only. Please note that the TORQ BLS0704T-BE servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.

4/ XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class:
*** Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
*** Specification:
- Model:    HPRO 155A 3-8S SBEC
- Continuous Current(A):    155A
- Burst Current(A):    260A
- Input Voltage:    3-8S Lipo
- BEC Output:    6-12V Adjustable; Current Cont.10A, Peak 35A
- Size:    90x43x25mm
- Weight:    178g
- Power Wire:    10 Gauge 145mm Red/Black
- Motor Wire:    10 Gauge 150mm Black
- Programming Way:    XDFly Android&iOS APP/VBCT/E/RF2/Jeti
- Telemetry:    VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
- Applications:    550-580 Class electric helicopters or fixed-wing aircrafts
6/ Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A:
*** Xnova brushless high performance outrunner motor for 520-600 size helicopters for extremely hard 3d flying on 6s. Extreme powerful motor for Goblin 570, Synergy E5 - E6, T-rex 600 or Logo 500 up to Logo 600.
- Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
- Optimized and unique design, hand wound to perfection
- Smooth running, low cogging torque.
- New type of higher degree magnets.
- All other features same as performance series.
7/ VULCAN ROTORS Precision Main Rotor Blades 589mm (YELLOW)
*** Specification
- Length : 589 mm
Width : 54 mm
Root : 12 mm
Bolt Hole : 4 mm
Weight : 148 gr
Washer : 2 x 1mm
*** Description:
The Vulcan Rotors RC helicopter blades are a top-tier product crafted by the renowned Italian designers Stefano Lucchi and Massimo Bruttini. These blades are meticulously engineered from the ground up to cater to the demanding needs of 3D pilots, offering an exceptional blend of performance, agility, and stability.
*** Features:
1. Optimal Performance for 3D Pilots:
– Specifically designed to enhance the performance of 3D flight, ensuring that pilots can execute complex maneuvers with ease and precision.
2. Enhanced Flight Time:
– The blades are engineered to consume less power, allowing pilots to enjoy longer flight sessions without the need for frequent recharges.
3. Super Reactive:
– These blades are incredibly responsive, providing an agile feel that enables quick and precise control during flight.
4. Stability in Hard 3D:
– Despite their agility, Vulcan Rotors blades maintain remarkable stability, making them ideal for hard 3D flying. Pilots can push their helicopters to the limit without losing control or precision.
5. Italian Design Excellence:
– Designed by Stefano Lucchi and Massimo Bruttini, the blades embody Italian craftsmanship and innovation, ensuring a high-quality product that meets the rigorous demands of professional 3D pilots.
With Vulcan Rotors blades, pilots get a perfect combination of extended flight time, exceptional reactivity, and unwavering stability, making them a must-have for anyone looking to elevate their 3D flying experience.

8/ VULCAN ROTORS Precision Tail Rotor Blades 95mm (YELLOW):
*** Technical Features:
- Length : 95 mm
- Width : 26/29 mm
- Root : 5 mm
- Weight : 6 gr
- Bolt Hole : 3 mm
*** Description
The Vulcan Rotors RC helicopter blades are a top-tier product crafted by the renowned Italian designers Stefano Lucchi and Massimo Bruttini. These blades are meticulously engineered from the ground up to cater to the demanding needs of 3D pilots, offering an exceptional blend of performance, agility, and stability.
*** Features:
1. Optimal Performance for 3D Pilots:
– Specifically designed to enhance the performance of 3D flight, ensuring that pilots can execute complex maneuvers with ease and precision.
2. Enhanced Flight Time:
– The blades are engineered to consume less power, allowing pilots to enjoy longer flight sessions without the need for frequent recharges.
3. Super Reactive:
– These blades are incredibly responsive, providing an agile feel that enables quick and precise control during flight.
4. Stability in Hard 3D:
– Despite their agility, Vulcan Rotors blades maintain remarkable stability, making them ideal for hard 3D flying. Pilots can push their helicopters to the limit without losing control or precision.
5. Italian Design Excellence:
– Designed by Stefano Lucchi and Massimo Bruttini, the blades embody Italian craftsmanship and innovation, ensuring a high-quality product that meets the rigorous demands of professional 3D pilots.
With Vulcan Rotors blades, pilots get a perfect combination of extended flight time, exceptional reactivity, and unwavering stability, making them a must-have for anyone looking to elevate their 3D flying experience.
