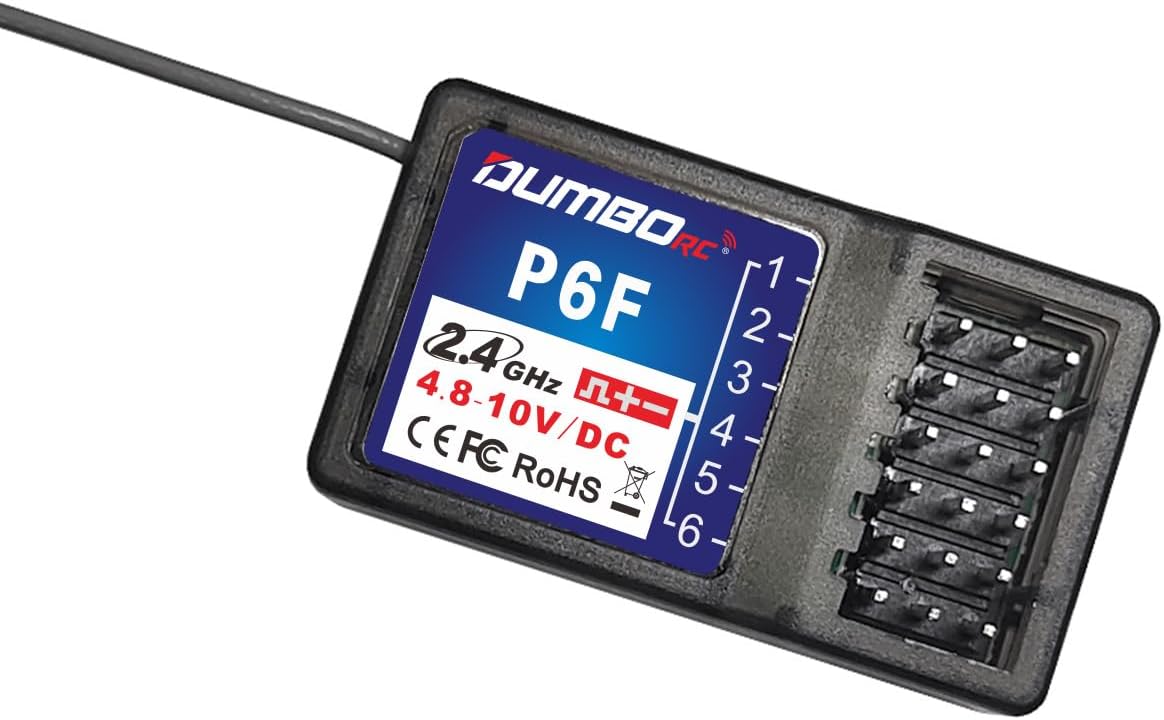

DUMBORC P6F 6 Channels 2.4GHz RC Receiver

Vendor: DUMBORC
SKU: P6F
$14.99
$14.99
Apply for Dealer Pricing
DUMBORC P6F 6 Channels 2.4GHz RC Receiver

DUMBORC P6F 6 Channels 2.4GHz RC Receiver

$14.99

DUMBORC P6F 6 Channels 2.4GHz RC Receiver

$14.99

Product Description

dumborc

If the Receiver you get is P6F, please don't worry, P6F is the upgraded version of X6F.

Servo Mode Setting (for P6F Receiver)

Press the binding button 4 times quickly, and the servo signal output by the P6F receiver will switch between the digital servo and the analog servo. When the servo signal output by the receiver is inconsistent with the model of the servo, the servo will make a "squeaking" sound, vibrate and be accompanied by heat generation. At this time, it is necessary to switch to the correct servo mode.

dumborc p6f

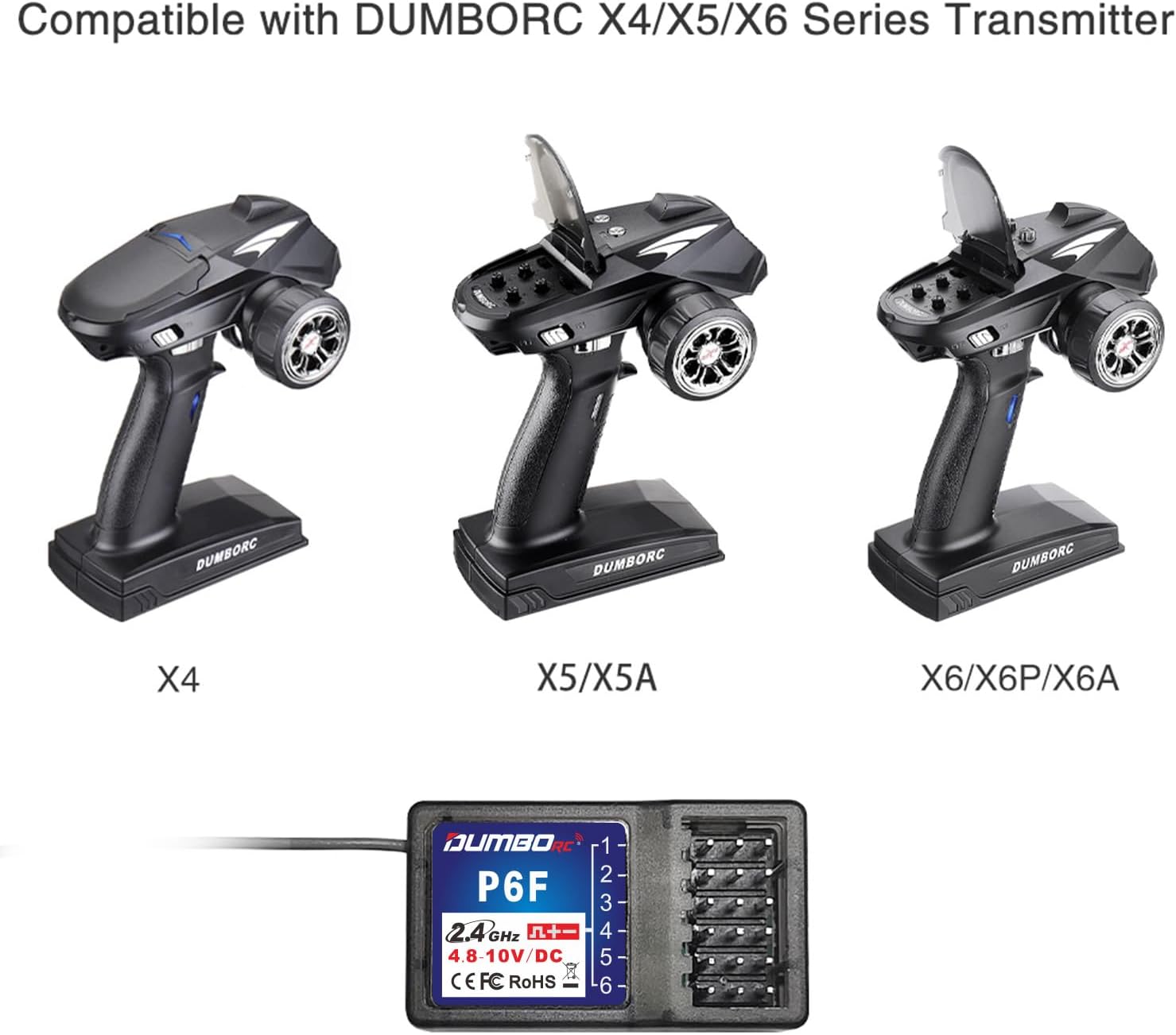

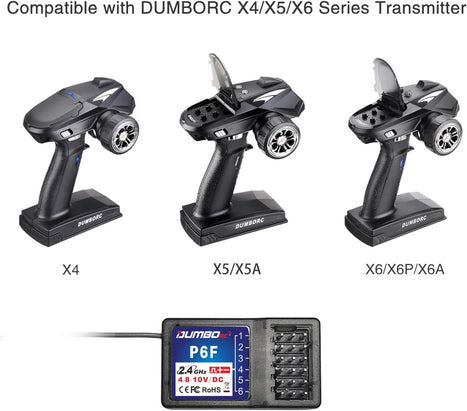

Compatible with Dumborc transmitter

03

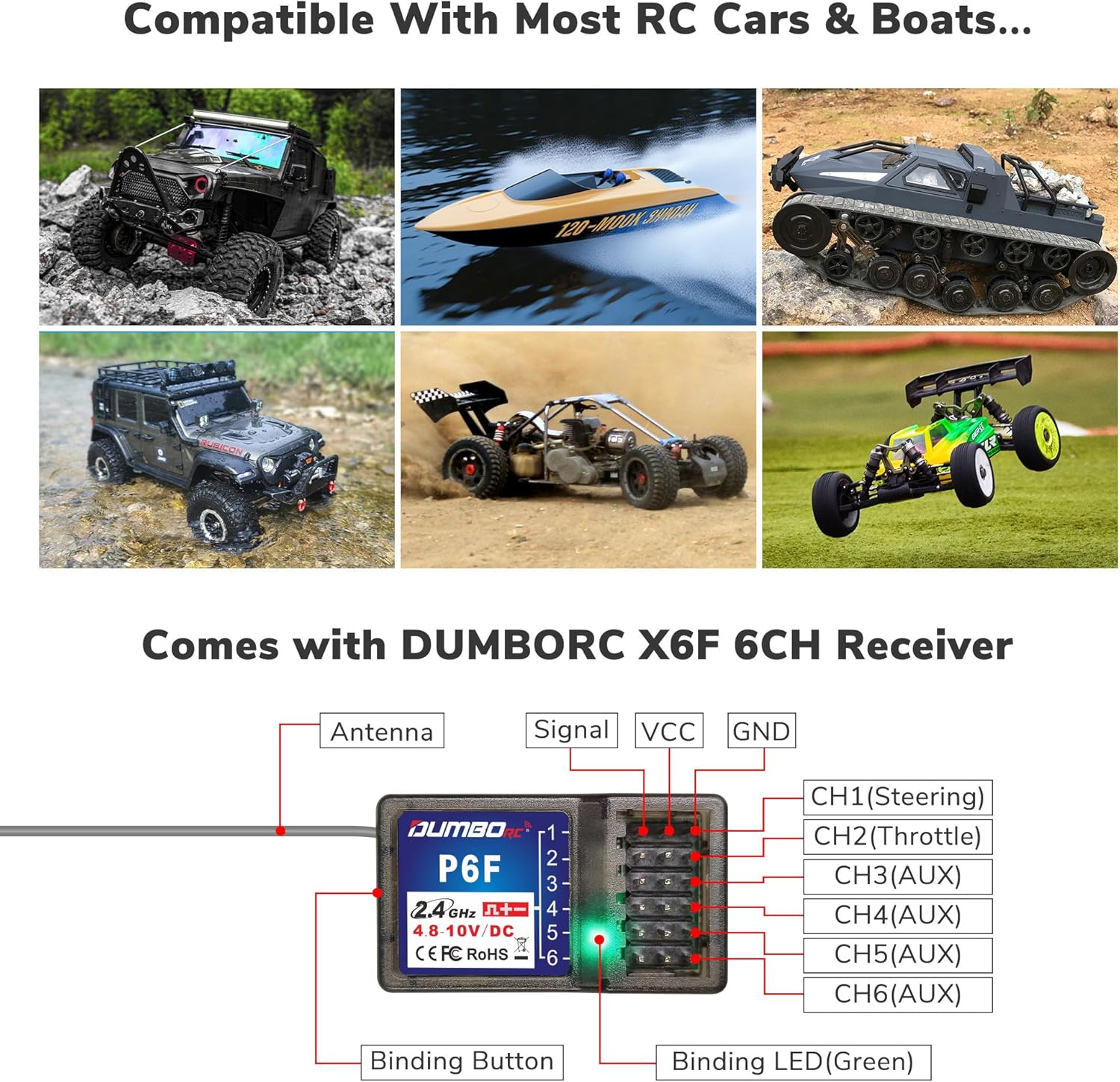

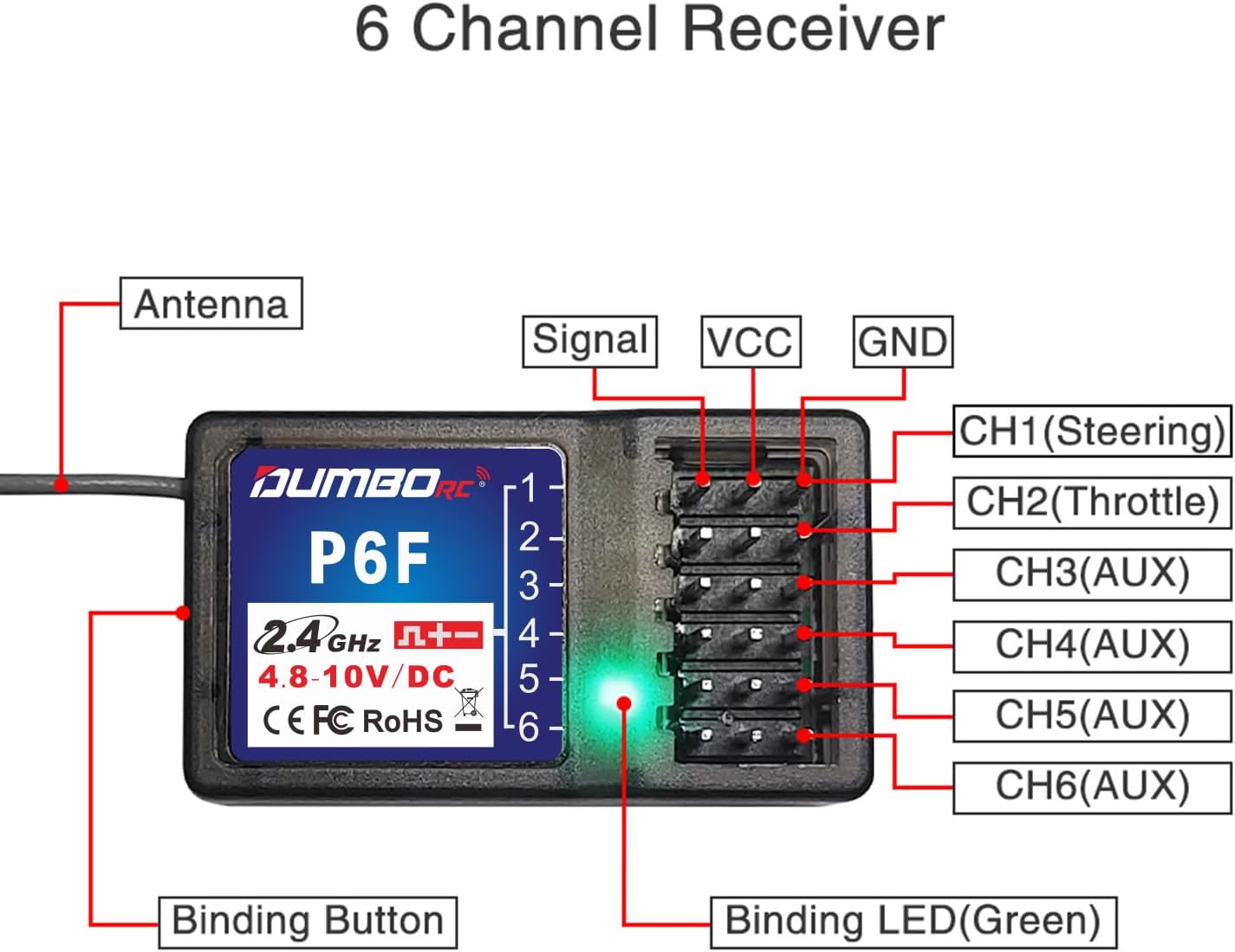

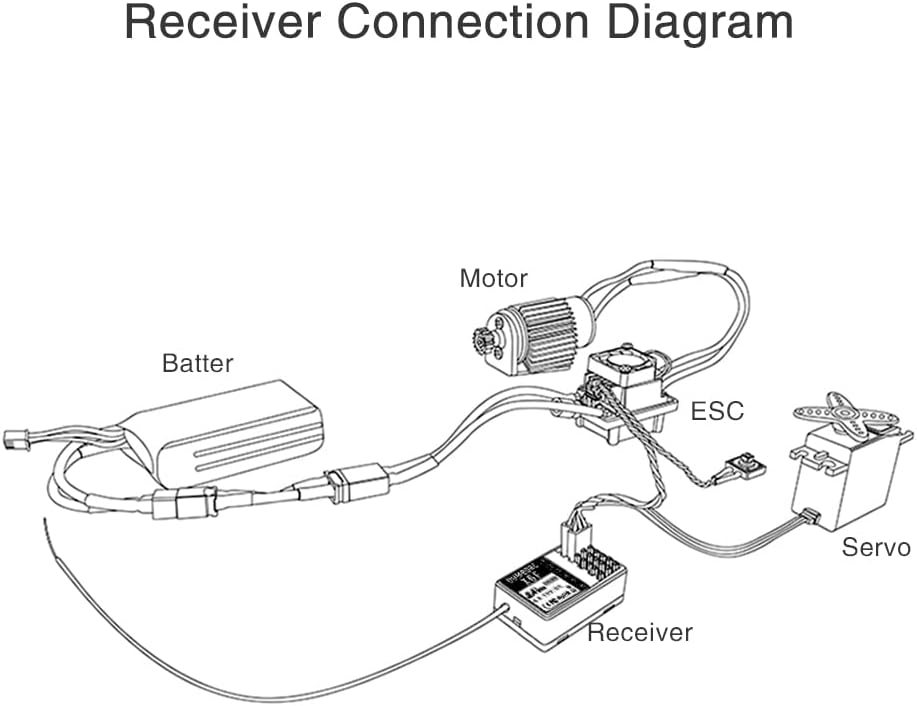

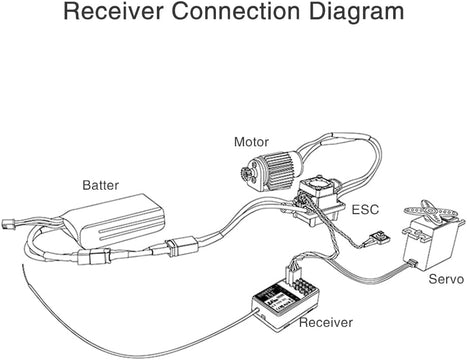

Connection diagram

Specifications:

  • Channel: 6
  • Gyro supported: NO
  • Signal Output: PWM
  • Model type: Most RC car/boat
  • Control distance: More than 1300 Feet
  • Working Voltage: .4.8~10V DC
  • Channel Resolution: 4096
  • Frequency: 2.4GHz ISM
  • RF Power: <10dbm
  • Size: 1.37*0.79*0.51in(35*20*13mm)
  • Weight: 6g(0.21oz)
  • Package included: 1 * X6F Receiver
