Align T-REX 760X KIT Dominator

$1,037.99

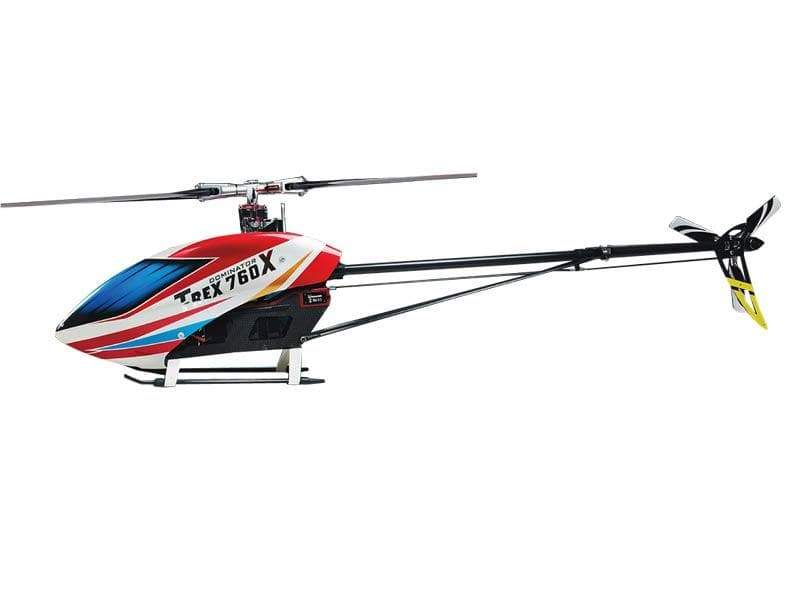

The brand new Align T-REX 760X features with new body length and new 760 main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.

The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter's high quality design is accented with precision machined red and silver metal parts.

T-REX 760X introduced many new design with top equipment providing excellent performance allowing any flying style no matter F3C or 3D flight. If you don't have any big helicopter, T-REX 760X must your best choice.


RH70E23XW

Landing skid is tilted 5 degree forward which improves crashworthiness.

RH70E23XW

New extended 760 carbon fiber main blades effectively improve the flying stability and power performance. Enhance the power for better control and redefine your flying experience. And it features new airfoil and printed graphics, increased rigidity and extended length, effectively increases anti-torsion strength during flight.


RH70E23XW

Brand new tail blade designed to sustain optimal tail authority performance under high head speed and extreme flight conditions.

RH70E23XW

Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.


RH70E23XW

The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.

RH70E23XW

Two new holder arms with CNC cutting provide a neat and smooth lines and appearance, showing out of the ordinary.
After thinking again and again and numerous washes to practice the essence, gestate a new F3C holder arm, effectively doubling the flight stability, and the excellent fine control accuracy; not only in the static flight has more advantages in the dynamic flight also has more outstanding control feeling. The 3D holder arm has excellent rigidity and toughness, suitable for extreme 3D flight, features with more direct and faster response, also enhance the flight stability, allowing to stimulate the infinite possibilities.


RH70E23XW

Align Advanced Metal Swashplate firmly connects to rotor grips preventing rotor head disengagement during intense flight. Two linkage ball mounting holes provided to improve control of system movement. A resolution hole or larger movement reaction hole can be selected based on your flying preference or style.

RH70E23XW

Main Rotor Grip Arm and Linkage Rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance.


RH70E23XW

Our new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.

RH70E23XW

The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight).


RH70E23XW

New 3K Main frame embedded with battery mounting rails with patented spring loaded latching mechanism. Brand new CG adjustable CNC Aluminum Battery Mount with movable latch design allow to adjust CG for different battery size, as well as providing great protection for the battery and convenient way for mounting.

RH70E23XW

Integration of CNC Aluminum alloy and POM Polyacetal which can lower friction between the linkage ball and the Metal Anti Rotation Bracket. In addition, this new design increases the efficiencies and accuracy of the servos.


RH70E23XW

Composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.

RH70E23XW

Highly enhance structural strength, effectively increase the torsional capability.


RH70E23XW

The brand new 700E three tail blade set is specially made from aerospace grade aluminum alloy with precise mechanical process, highly enhance structural rigidity and precision. Total 3 tail blades design allow to achieve superior tail-lock performance and excellent controlling feel. For those who is addicted to 3D flying, you must convert to the three tail blade set and enjoy the amazing powerful flight performance.





Standard equipment

•760X Painted Canopy x 1
•3D Holder Arm x 1
•F3C Holder Arm x 1
•Progressive Lightweight Landing Skid x 1
•700 PRO Carbon Fiber Vertical Stabilizer x1
•Main Blade Holder x 1
RH76E11XW



Electric equipment

•850MX Brushless Motor(490KV/4535) x 1 RH70E23XW

Specification

•Length: 1390mm
•Height: 360mm
•Width: 195mm
•Main Blade Length: 760mm
•Main Rotor Diameter: 1702mm
•Tail Rotor Diameter: 287mm
•Motor Drive Gear:12T
•Main Drive Gear:112T
•Autorotation Tail Drive Gear: 102T
•Tail Drive Gear: 23T
•Drive Gear Ratio: 9.33:1:4.43
•Weight(w/o Battery): Approx. 3750g

Accessories

•T-REX 760X Kit Set x 1 set
•760 Carbon Fiber Blades x 1 set(2pcs)
•105mm Carbon Fiber Tail Blades x 1 set(3pcs)
•850MX Brushless Motor(490KV/4535) x 1


Radio transmitter and electronic equipment required for assembly:
•Transmitter(7-channel or more, helicopter system)
•Receiver(7-channel or more)
•6S Li-Po 4500 ~ 6000mAh x 2
•Digital Pitch Gauge
•CCPM Servo x 3
•Tail Servo x 1
•ESC x 1
•Flybarless System x 1
