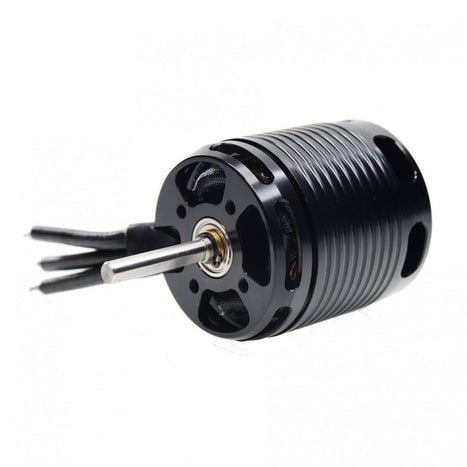

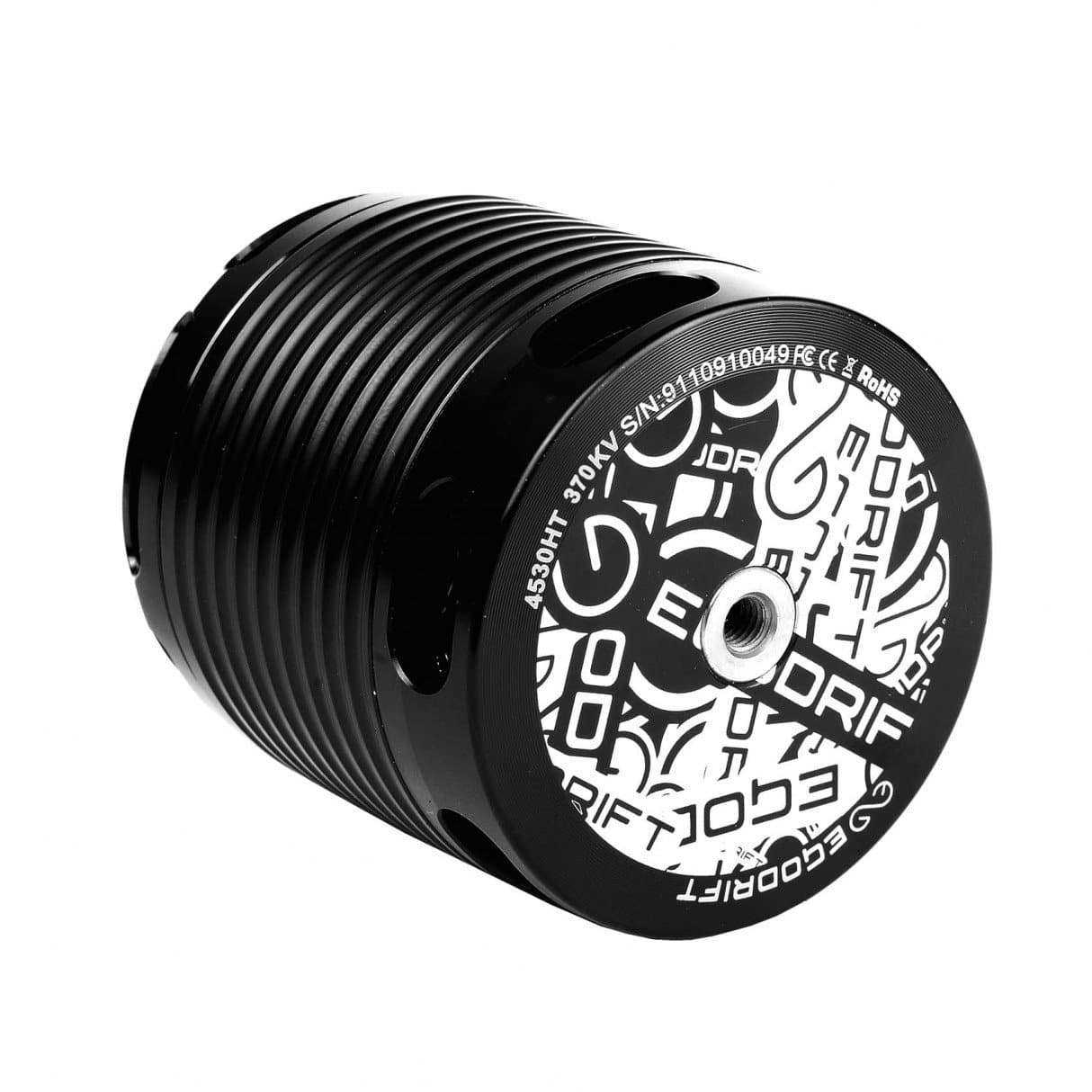

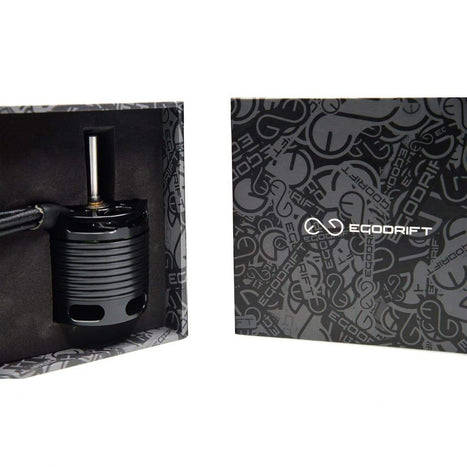

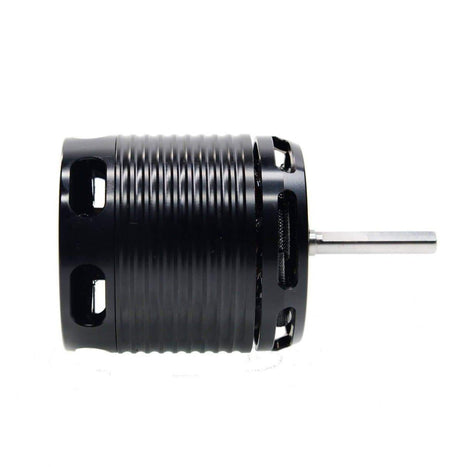

Egodrift Tengu 4530HT / 370kV Motor (35mm shaft)

Vendor: Egodrift
SKU: 11847
Please hurry! Only 0 left in stock
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect

Egodrift Tengu 4530HT / 370kV Motor (35mm shaft)

$459.00
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect
Egodrift Tengu 4530HT / 370kV Motor (35mm shaft) - HeliDirect

Egodrift Tengu 4530HT / 370kV Motor (35mm shaft)

$459.00
Description

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 370kV and fits all 760-800mm class helicopters, such as the Logo 800 and Logo 800Xxtreme (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm or 55mm (please choose)SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 536g
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.12mm
  • Motor shaft: Hardened Steel
  • LiPo cells: 12S, 14S
  • Motor kV: 370 kV
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 2.5A
  • Maximum Current: 104A (Peak 206A / 2 seconds)
  • Maximum Power: 5200W (Peak: 10300W / 2 seconds)
  • Internal resistance: 38 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
