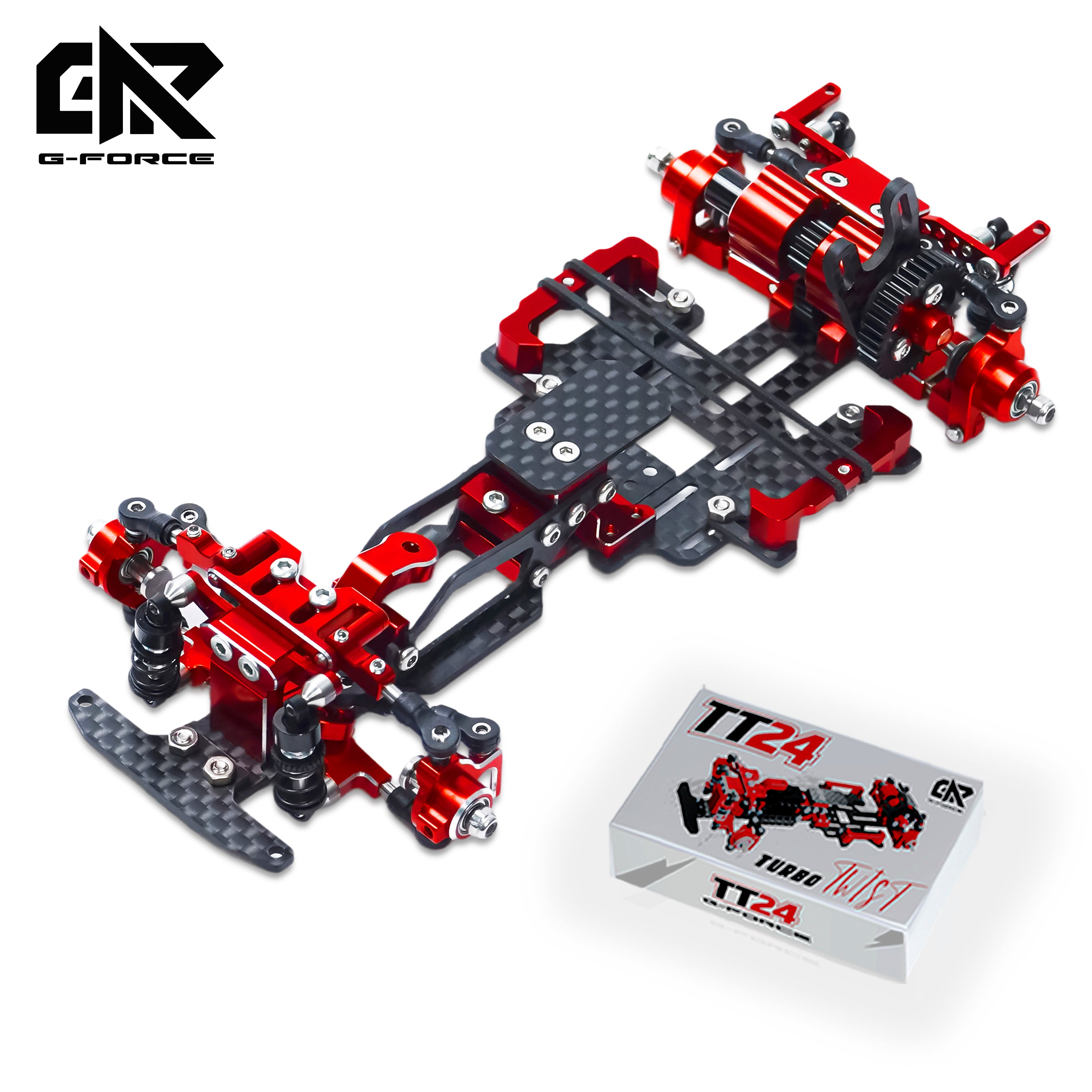

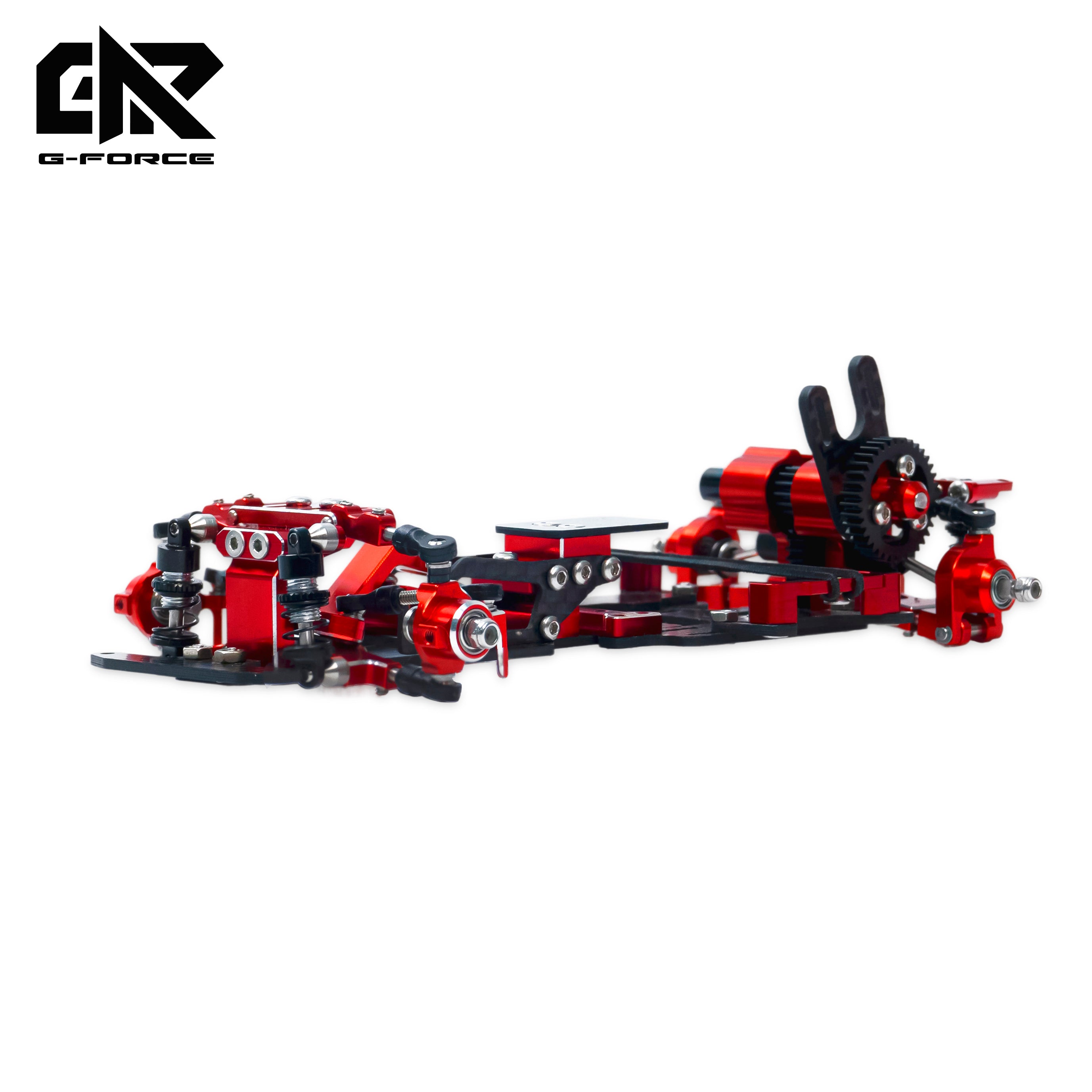

G-Force TT24 1/24 Full CNC Aluminum drift chassis.

Turbotwist24 High-Precision 1/24 Scale Chassis System

The Turbotwist24 is an advanced, precision-engineered chassis platform designed for the 1/24 RC racing class. Built for high configurability and consistent performance, it provides competitive drivers and technical tuners with a robust framework to optimize handling characteristics, mechanical balance, and component integration.

Product Overview

Manufactured using premium materials including full-aluminum components and a 1.5mm carbon-fiber chassis plate, the Turbotwist24 delivers exceptional rigidity, durability, and lightweight performance. Its modular design supports a wide range of tuning parameters, making it ideal for a variety of track types, surface conditions, and driving preferences.

Key Technical Features

• Chassis & Geometry Adjustability Wheelbase: Adjustable from 98mm to 120mm for tailored handling dynamics.
• Width: Fine-tunable between 72mm and 80mm to optimize track stance and cornering stability.
• Caster & Camber Adjustment: Precision control of steering and tire contact angle to enhance grip and responsiveness.
• Ackermann Geometry: Four adjustable positions to refine steering characteristics and reduce understeer or oversteer tendencies.

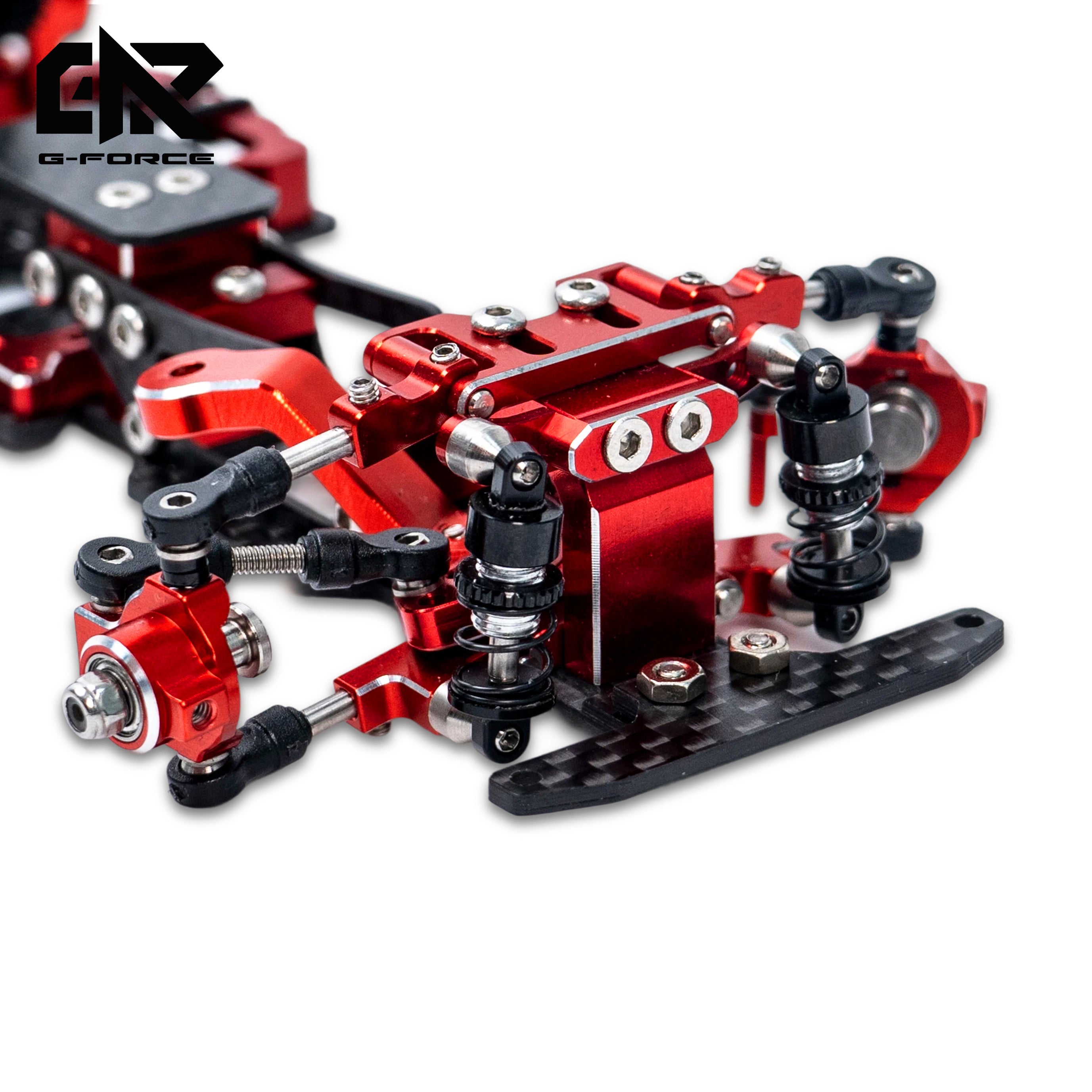

• Suspension & Steering Systems Double Front Suspension Arms: Dual-arm configuration enhances suspension articulation and reduces vibration feedback.
• Servo Compatibility: Supports all thick-format 1/28 servos, including OMG 03DF and AGFRC A11, ensuring broad component integration.
• Adjustable Servo Angle: ±15° of tuning capability to optimize linkage alignment and torque response.
• Drivetrain & Motor Configuration Adjustable Motor Angle: 60° of adjustability enables precise tuning of motor position to balance torque delivery and weight distribution.
• Reversible Motor Setup: Backend is reversible for rapid transition to a rear-motor configuration, offering flexibility for different track layouts.
• Rear Solid Axle: Reinforced for stability and durability under high loads.
• Dual-Side Motor Mounting: Allows left or right motor placement based on preferred handling bias and space constraints.
• Battery Management System Universal Battery Compatibility: Accommodates both 1/28 and 1/24 scale battery sizes.
• Adjustable Battery Tray: Provides customizable positioning for center-of-gravity optimization and secure battery placement.

Construction & Mounting

• Full Aluminum Architecture: High-strength aluminum elements provide structural integrity while minimizing flex.
• 1.5mm Carbon-Fiber Main Plate: Delivers exceptional torsional stiffness with minimal weight.
• Magnetic Body Mounting System: Ensures fast, reliable body attachment with no mechanical latching components.

The Turbotwist24 sets a new benchmark in 1/24 scale chassis configurability and performance engineering. Designed for serious hobbyists and competitive drivers, it is an ideal platform for those seeking full control over setup parameters and consistent on-track results.
