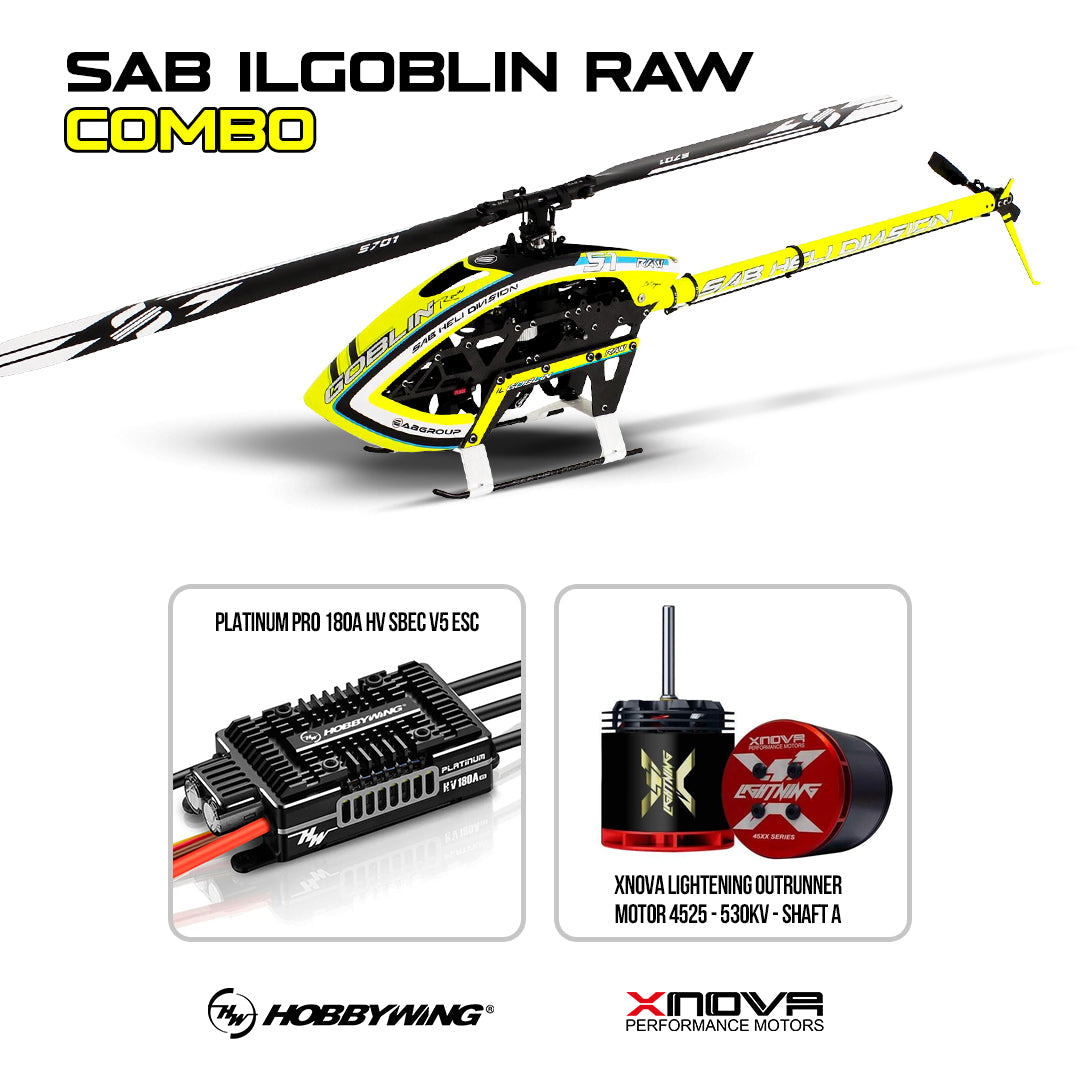

1 x IlGoblin Raw (SG763)
1 x HobbyWing Platinum PRO 180A HV SBEC V5 ESC
1 x Xnova Lightening Outrunner Motor 4525 - 530KV For RC Helicopter Shaft A
ILGoblin RAW is a simpler version of the PRO with an aluminum tail boom, this version will have the same main components of the ilGOBLIN PRO.
AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
• 21T motor pulley (other pulley sizes available).
• 1 battery tray with straps.
• S701 (700 mm main blades)
• S105 (105 mm tail blades)
