Description

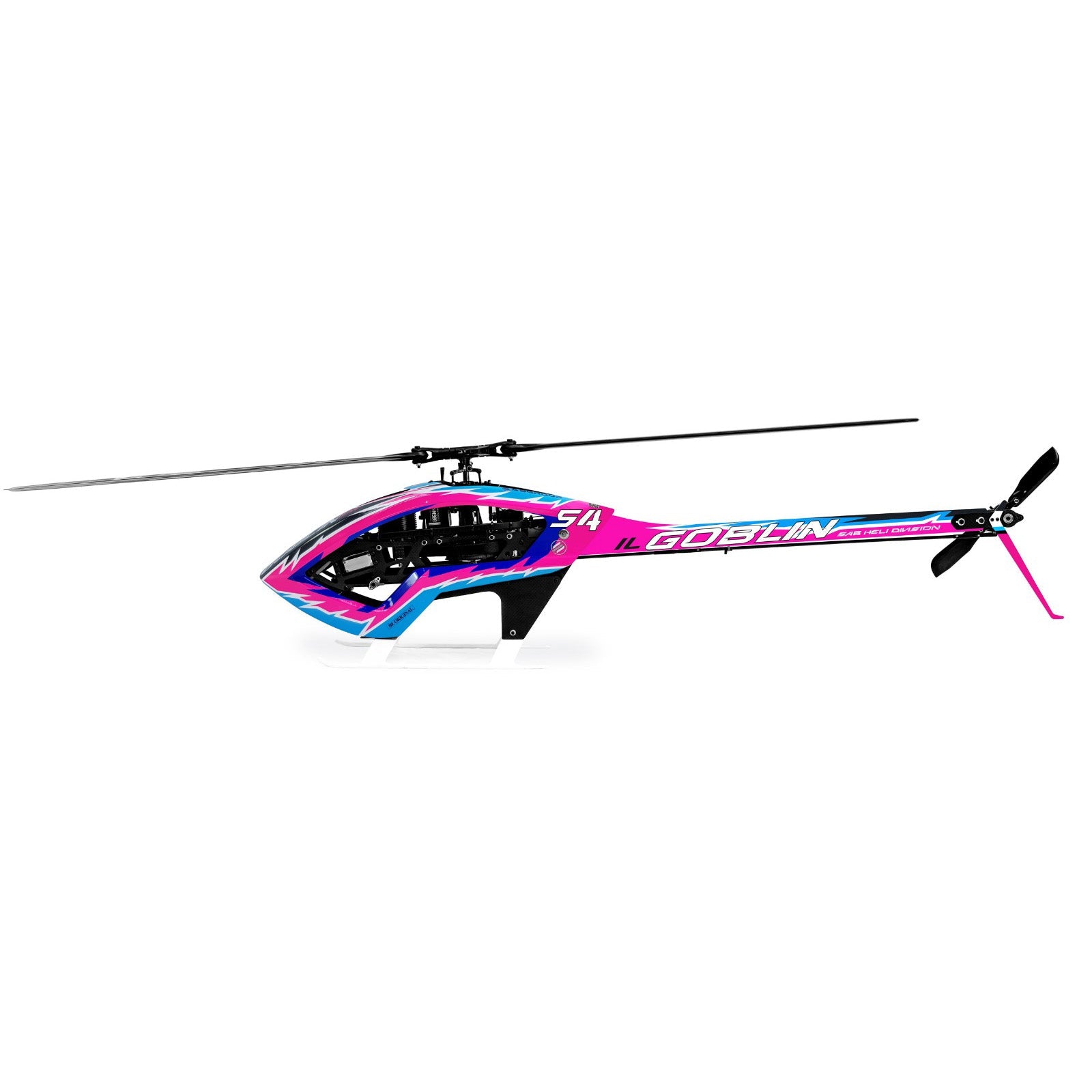

System X Community presents The new ilGoblin PRO 520 SXC style with a cherry on top

Please download the manual sheet HERE

Learn more and get additional support about SystemX HERE

Here are the main innovations:

Upgraded Features:

  • H1747-S 23mm Aluminum Blades Grip Arms: Fast and Precise responses on cyclic and collective commands
  • H1941-S Swashplate Leveler: A must-have tool for building the helicopter
  • Additional H1912-25-S 25T Aluminum Tail Pulley: Speed up the tail rotor, optimized for low-headspeed flying
  • Additional H0215-16-S/H0215-18-S: 16T/18T Aluminum Motor Pulley: Options for varying motor KV or headspeed range
  • Canopy and Tail Boom in a special color scheme with gloss finish
  • Pink Main and Tail Blades match the color scheme



    Developed based on the well proven Goblin RAW 500, the ilGoblin 520 brings many improvements to the platform:

    - ilGoblin Pro Canopy/Boom shape

    - New, stronger one way bearing

    - New, stronger motor belt transmission

    - New, smoother tail belt transmission

    - Full Size tail servo compatible (Mini Tail Servo Mount H2272-S sold separately)

    - 520mm main blades/82mm tail blades

    The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

    Specifications:

    AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)

    Main rotor diameter: 1220 mm (with 520 mm main blades)

    Main blade length: 480 to 530mm

    Tail rotor diameter: 222 mm (with 82 mm tail blades)

    Tail blade length: 80 to 85 mm

    Cyclic Servos: Mini size 35mm

    Tail Servo: Mini size 35mm/Standard size 40mm

    Main Rotor Ratio: 1: 4.47 to 5.88 (16T/17T/18T Motor Pulley Includes)

    Tail Rotor Ratio: 3.88.1 (27T Tail Pulley)

    Main shaft: 8 mm, Tail shaft: 5 mm

    Molded carbon tail boom

    Typical motor: 6S, 800/900 KV

    Battery room: 48x48x150mm



    Features:

    Tail Servo Located In Front

    Positioning the tail servo at the front optimizes the center of gravity (CG) of the ILGoblin 520, and provides compatibility with both mini (Mini Tail Servo Mount H2272-S sold separately) and full-size tail servos.



    IL Goblin Scheme Canopy and Boom

    Following the success of the scheme on the ILGoblin 700, we extended its use to other product lines.



    12mm One Way Bearing and 13mm Motor Belt

    Utilize a 12mm one-way bearing and 13mm motor belt for maximum head speed



    520mm Main Blades and 82mm Tail Blades

    New SAB 520mm main blades and 82mm tail blades are available in a new orange color design.



    Carbon Moulding Tail Boom

    The boom utilizes the same molding technique as the ILGoblin 700, and it weighs only 100 grams



    New Plastic Ball Linkage

    The redesigned plastic ball linkage is significantly stronger and more robust, reducing maintenance time



    KIT Includes:

    • 16T, 17T, 18T motor pulleys.

    • 25T, 27T tail pulleys

    • 23mm aluminum blade grip arms

    • 1 battery tray with integrated connectors.

    • Swashplate leveler

    • S520 Pink (520 mm main blades).

    • S82 Pink (82 mm tail blades).
