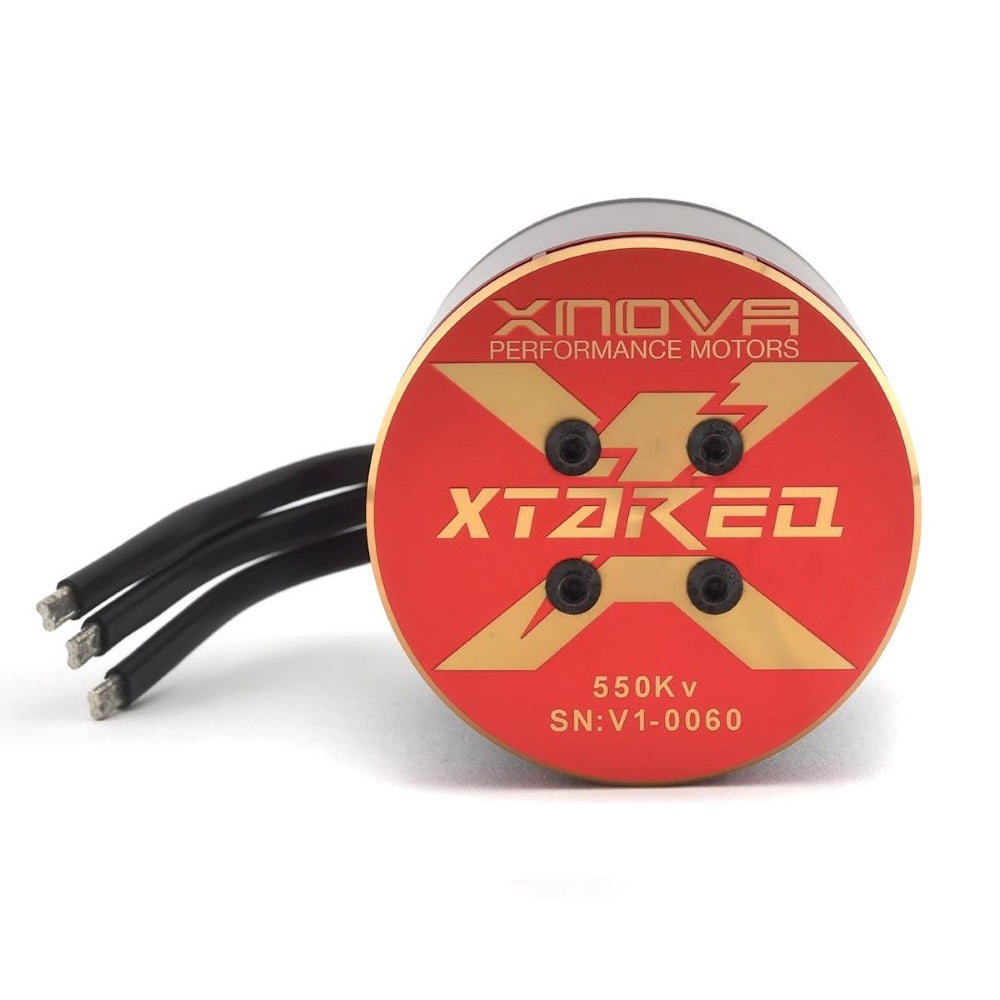

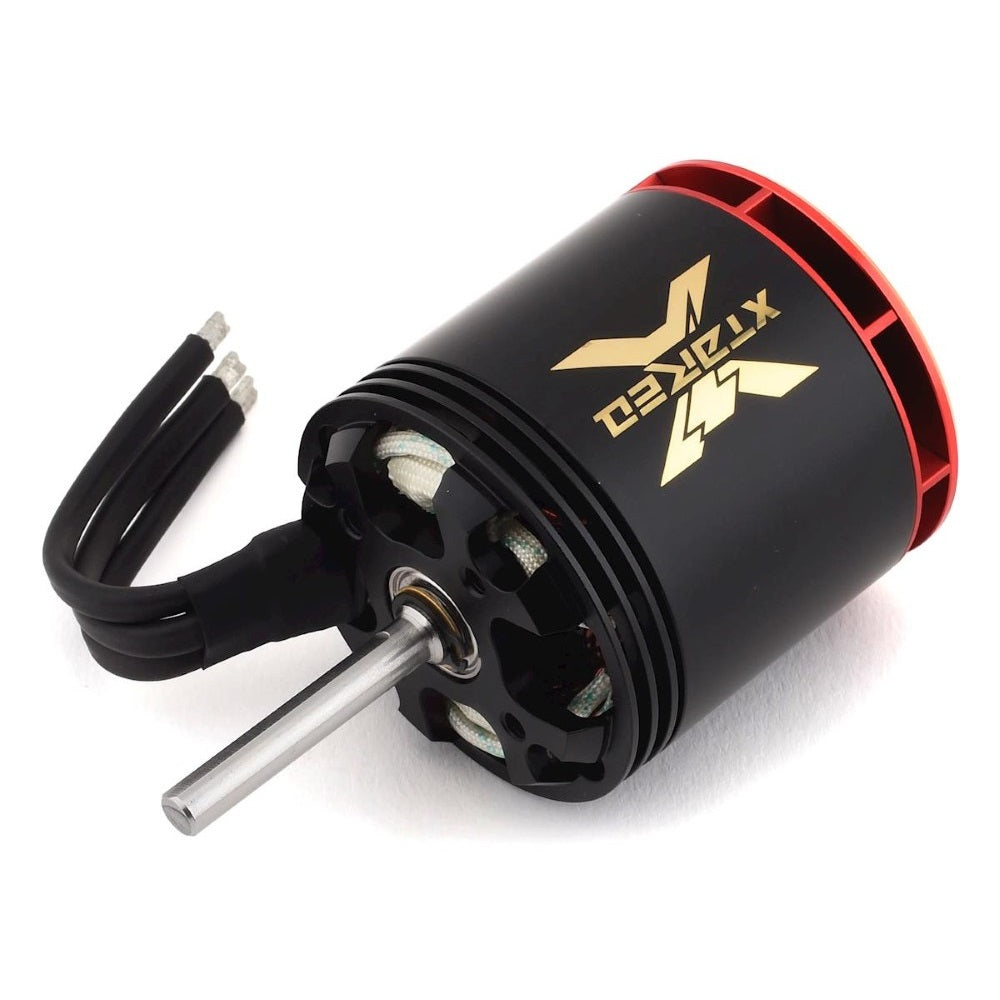

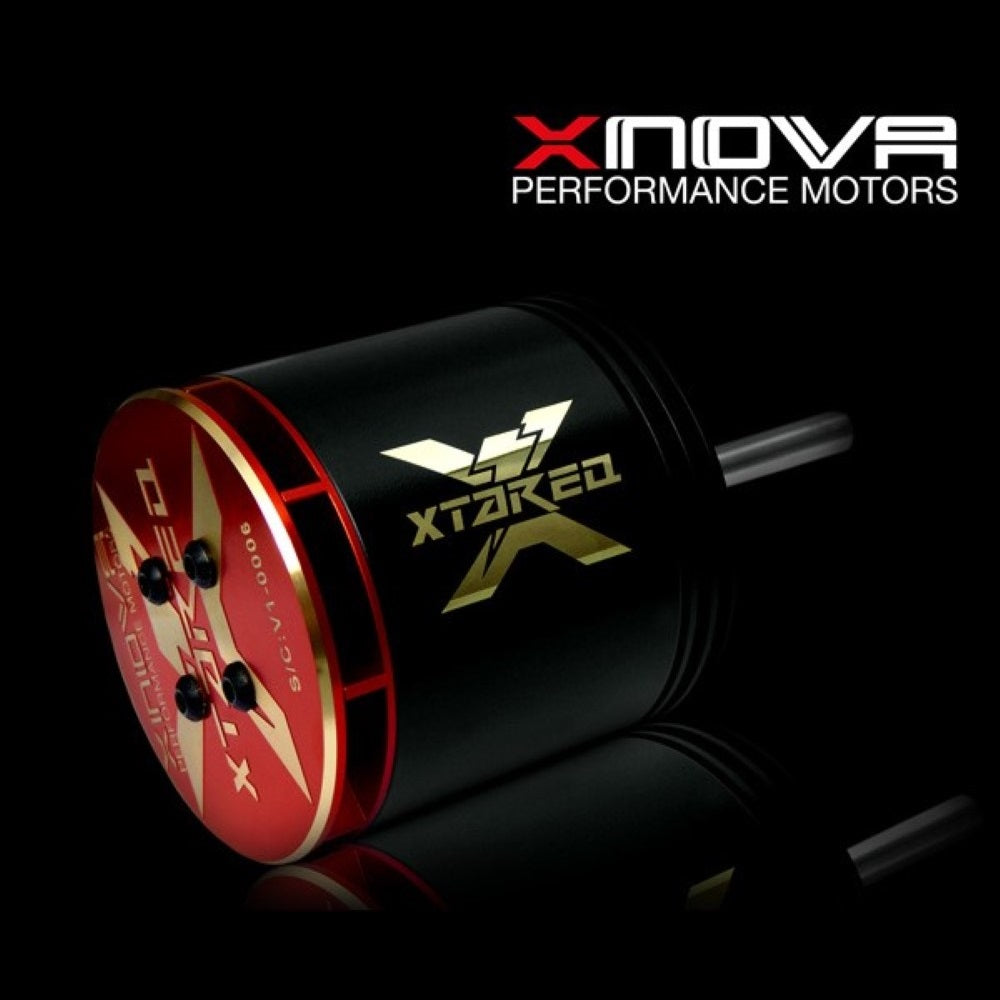

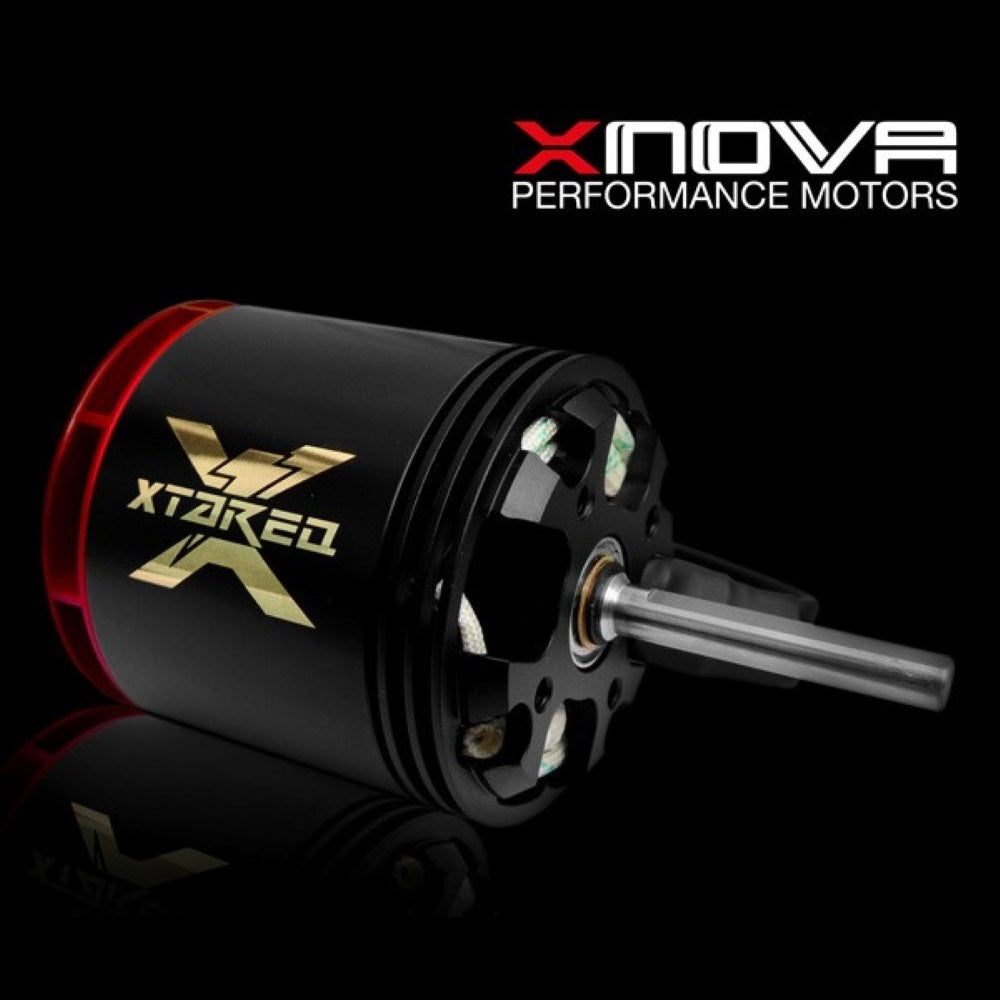

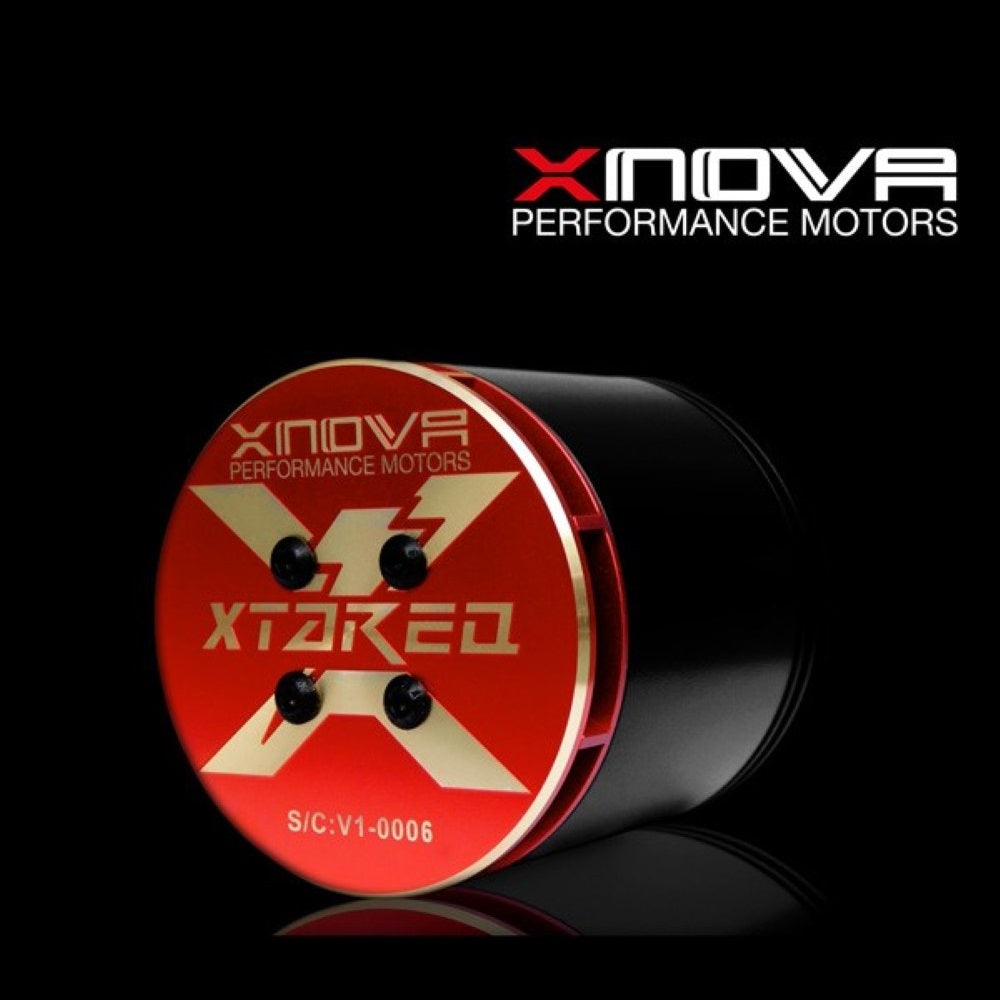

XTAREQ 700 class high-end motor

Tareq Alsaadi, legend and a mentor in the RC helicopter scene. For years we have worked with him for the idea to develope the most unique, powerful and strongest motor ever. A motor which have absolute no room left for any kind of improvements by the use of the very best components the industrie can provide. 3 bearings, the most advanced stator design with the highest copper filling grade you can come up with and a finninshing you never seen before.

Even in comparison versus a swiss highend clock this juwel not need to be fear of.

Xnova brushless high performance outrunner motor designed for extrem 3D performance in 690-710mm helicopter where highest power to weight ratio is important.

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
• Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
• High-performance latest type neodymium magnets, heat resistant up to 180 degrees C.
• 3D machined xtareq logo on fancover,with amayzing clean and stylish look.
• Developed with TAREQ ALSAADI and 100% approved by him to be the most powerful and solid motor he ever used.
• Highest copper filling grade that is possible
• 550KV/V and 560 gramms wo/w

Specifications

• Stator size: 4530
• Rpm/V (Kv): 550
• Weight (without connector): 560g
• Body Length (no shaft): 61mm
• Diameter: 55.7mm
• Shaft Length: 38mm
• Shaft Dia.: 6mm
• Mounting Holes & Screw (mm): 4*30*M4
