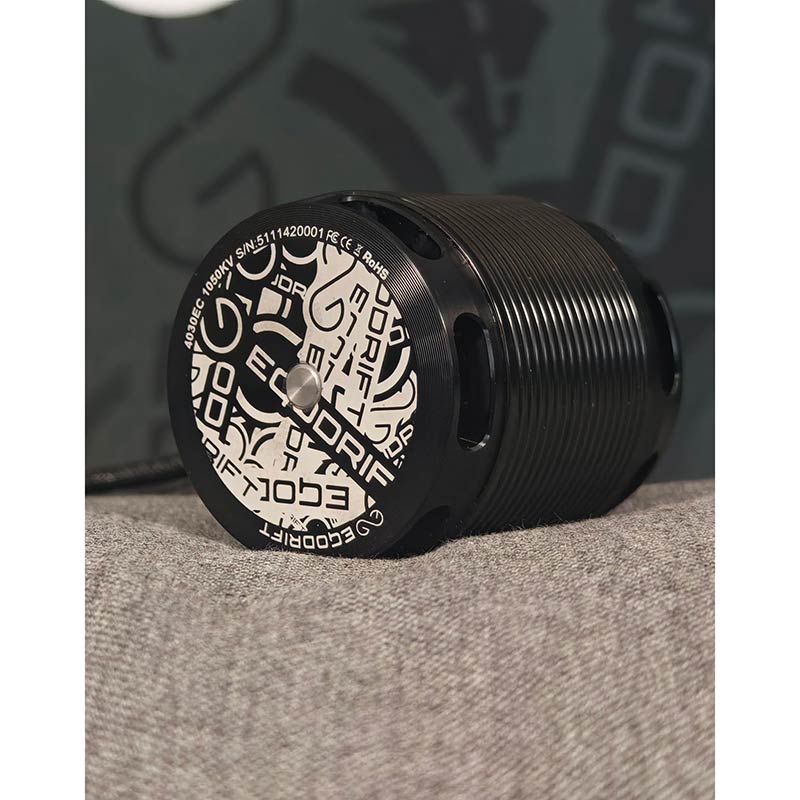

Egodrift Tengu 4030EC Eclipse / 1050kV (6x32)

ntroducing the EGODRIFT 4030 Eclipse Motor – a revolution in performance and design from our new 40xx Eclipse series. At its core is the cutting-edge custom EGODRIFT stator with a 40mm diameter, driving unparalleled efficiency and power.

Redesigned for Unmatched Performance

The 4030 Eclipse motor is the first model from our new 40xx Eclipse series, featuring our newly developed custom EGODRIFT stator with a 40mm diameter. The entire motor has been redesigned around this innovation:

A new 6mm shaft provides further weight reduction, while optimized arc magnets, an adjusted rotor housing, and a redesigned bell enable the stator to reach its full potential.

The result is a motor that is more efficient, cooler, and simultaneously more powerful than the 4030 Beta Series (which was a "Beta" due to the last missing component - the custom EGODRIFT stator - now featured in the Eclipse Series as part of this new generation).

Available kV Ratings:

• 550kV – Optimized for 12S setups.
• 800kV – Epic Combo 2.0 for 8S setups.
• 1050kV and 1150kV – Perfect for 6S configurations.

The motor base features 2xM4 (30) + 2xM3 (25) mounting holes, ensuring seamless compatibility with a wide range of models and mounting plates. As always, each motor includes:

• Three pairs of gold-plated Amass bullet connectors.
• Mounting screws. (Ensure the screw length fits your model during installation.)
• 2 sticker (decal) sheets

Elevate your performance with the EGODRIFT 4030 Eclipse – the next generation of power and precision.

• Manufacturer: EGODRIFT
• Motor configuration: 12N10P
• Shaft diameter: 6.0 mm
• External shaft length (mm): 32 mm
• Mounting hole pattern: 2xM4(30) + 2xM3(25)
• Laser Design: EGODRIFT Stickerbomb
• Stator diameter: 40 mm
• Stator height: 30 mm
