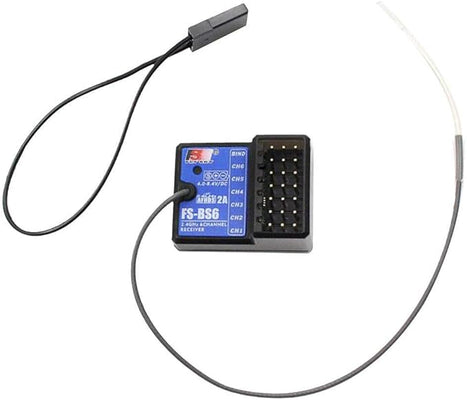

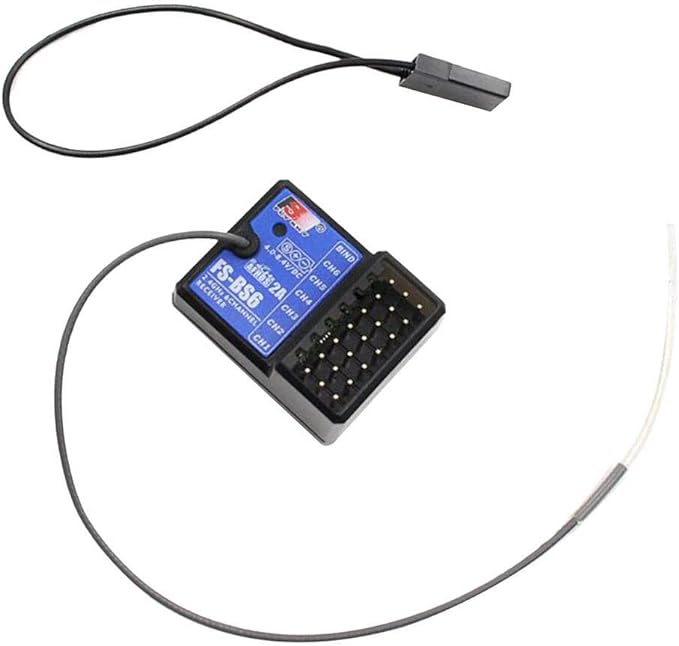

FlySky FS-BS6 6 CH Receiver

Description

Product Model: FS-BS6

PWM channels: 6

Wireless frequency: 2.4GHz

Wireless protocol: AFHDS 2A

Range: 100 ～ 300m (ground)

Antenna type: single antenna (180m)

Power: 4.0-6.5V

RSSI: Supported

Data port: PWM

Temperature range: -10 ℃ — + 60 ℃

Humidity range: 20% -95%

Online Update: Yes

Dimensions: 29 * 22 * 16.2 mm

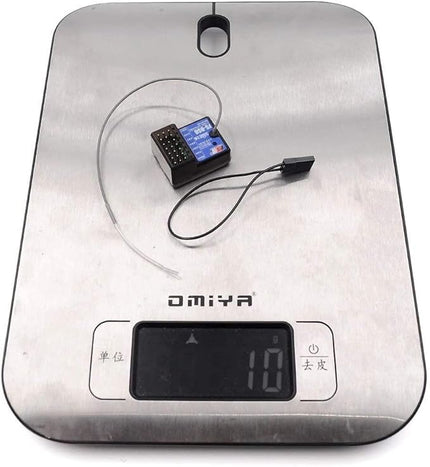

Weight: 7.6 g

Certification: CE, RCM, FCC ID: N4ZBS600

Bind FLYSKY BS6 Receiver to FLY SKY GT5 Remote Controller or Compatible Model or Brand

Binding

Please follow the steps below to bind the BS6 receiver to your remote controller

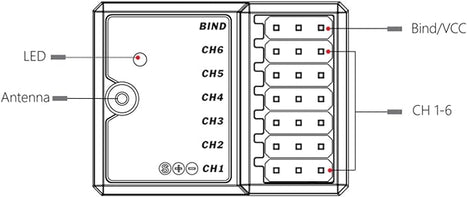

1. Connect the bind plug to the receiver's port B/VCC

2. Connect power to any other port on the receiver

3. Press and hold the transmitter bind key and turn on the transmitter in the same time.

4. Once binding is complete, the transmitter will exit bind mode. Remove the power and bind plug from receiver, then apply power to the port B/VCC

5. Check to make sure everything functions as expected, if not, please repeat the steps above.

Note, if you are quite sure you follow the above steps completely correctly, please consider to update the firmware of your radio controller or receiver. And if you are still having problem, please check and make sure the receiver IS compatible with the brand and model of your transmitter.
