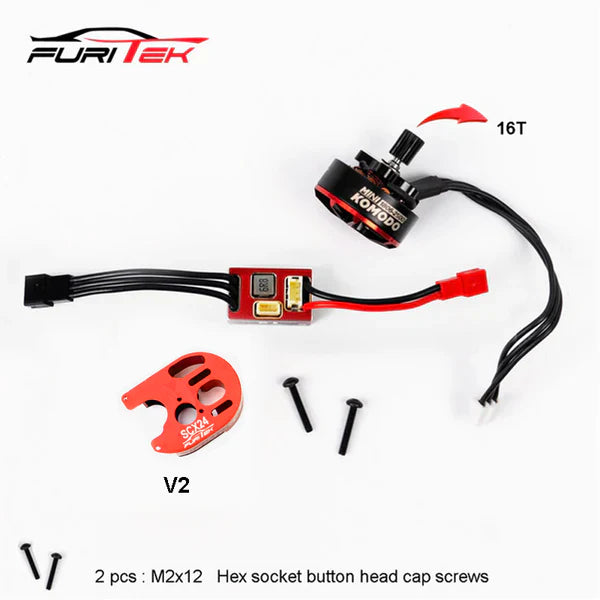

Furitek MicroSilk 2025 Brushless Power System with MicroPython and MiniKomodo For Axial SCX24

Mini Komodo V2  Features:
- 14 Pole 12 slot hi-torque motor design
- High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency
- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency
Japansese NMB --High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion

MiniKomodo V2 Specifications:

- Kv (RPM/Volt) 2500
- No-load Current(@10v)
- Watt 160W
- Battery 2-4S
- Resistance 0.20ohm
- Max Current 14A
- Slot/Pole 12S14P
- Motor Size Ø 23 * 15mm
- Stator Size 1806
- Weight(g) 19g
