🚀 Introducing the Furitek VORTEX-X
Brushless Sensored Power System with 3.17mm Shaft Motor for Losi 1/18 Mini LMT
Furitek, a trusted pioneer in the mini RC electronics world, is breaking new ground by bringing its cutting-edge technology to the monster truck scene.

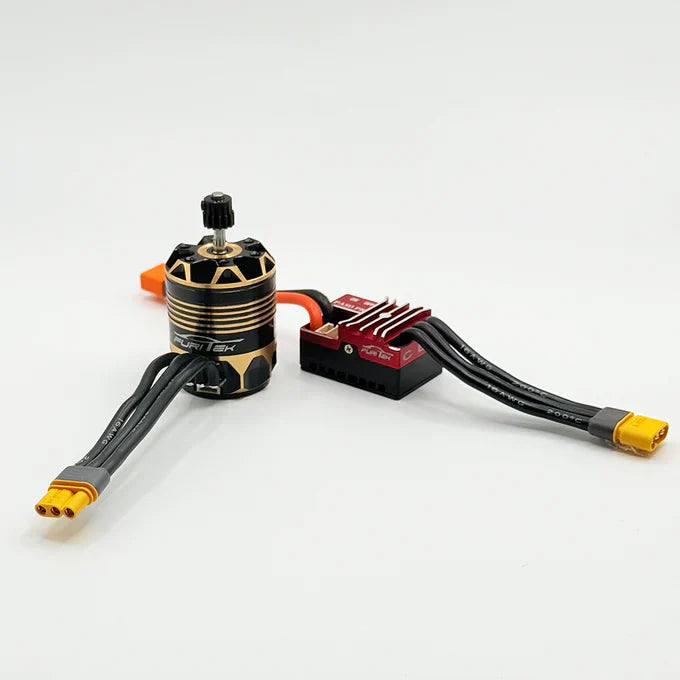

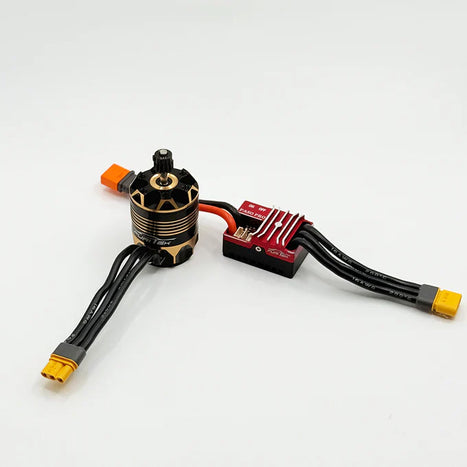

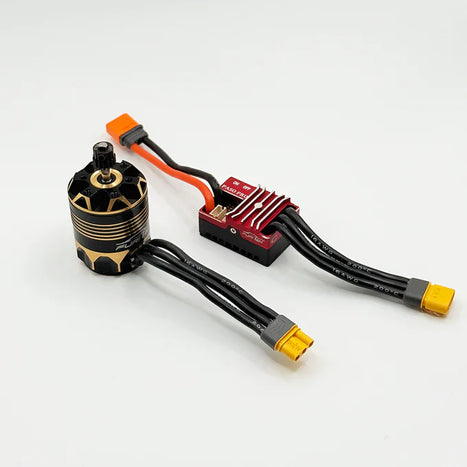

We proudly present the Furitek VORTEX-X Brushless Sensored Power System, designed specifically for the Losi 1/18 Mini LMT. Combining the powerful PASO PRO sensored ESC with the all-new IMPULSE 2835 5600KV motor featuring a reinforced 3.17mm shaft, this combo delivers incredible torque, smooth throttle response, and unmatched reliability — all in a true plug & play system.
To further enhance tuning flexibility, the system also includes two pinion gears (14T & 15T, 0.5M, 3.17mm shaft), allowing you to easily fine-tune gear ratios based on terrain and driving style.
🔥 Key Features:
✅ Plug & Play Ready – Direct-fit for Losi Mini LMT with no soldering required
Note: Requires aftermarket TX/RX system (not compatible with stock radio)
✅ Full Waterproof Design – Built to perform in wet and muddy conditions without compromise
✅ 3.17mm Hardened Shaft Motor – Built to handle extreme torque and eliminate flex or breakage under load
✅ Supports Sensored & Sensorless Operation – ESC handles 60A continuous / 100A burst current
✅ Built-in Wireless Setup Module – Tweak settings in real time with the Furicar App (iOS & Android)
✅ Live Tuning & Real-Time Telemetry – Make adjustments on the fly and monitor performance up to 10Hz
✅ Smooth Throttle Control – Precision-crafted for consistent power delivery during jumps, launches, and wheelies
✅ Free Lifetime Firmware Updates – Always stay up-to-date with the latest features
📐 ESC Specifications (Furitek PASO PRO):
📌 Battery Support: 2–3S LiPo batteries
📌 BEC Output: 5.5V / 7.4V @ 5A
📌 Constant Current: 60A
📌 Burst Current: 100A
📌 Built-in Power Switch: Integrated for convenience
📌 Built-in Wireless Setup Module
📌 Dimensions: 0.86 x 1.26 x 0.62 in (21.9 x 32 x 15.7 mm)
📌 Weight: 28.5g (1.0 oz)
🏎 Motor Specifications (Furitek IMPULSE 2835 – 3.17mm Shaft):
📌 Motor Type: Sensored Waterproof
📌 KV Rating: 5600KV
📌 Power Output: 450W
📌 Battery Support: 2–3S LiPo
📌 Resistance: 0.035 Ohm
📌 Max Current: 50A
📌 Slot / Pole: 12 slot / 4 pole
📌 Motor Size: 28 x 35mm
📌 Shaft: 3.17 x 12mm hardened steel shaft
📌 Weight: 60g
📌 Pinion Gears Included: 14T and 15T (0.5M, 3.17mm shaft) – allows tuning gear ratio for different driving styles
⚙️ Motor Features:
✅ 3.17mm Reinforced Shaft – Handles more torque, better durability under high-load monster truck use
✅ Sensored 4-Pole Hi-Torque Design
✅ Aerodynamic Cooling System – Turbo airflow slots enhance heat dissipation
✅ Pre-soldered Gold Bullet Connectors – Plug & play, no soldering needed
✅ CNC-Machined 7075 Aluminum Housing – Lightweight and thermally efficient
✅ 0.2mm Silicon Steel Laminations – Maximizes energy efficiency (94%)
✅ Magnetic Force Control System (M.F.C.S) – Fine-tune torque response
✅ Oversized Bearings & High-Temp Rotor – Rated for up to 200°C
✅ Midnight Purple Edition – Aggressive styling with premium finish
✅ Includes 14T & 15T Pinion Gears (0.5M, 3.17mm shaft) – Easily swap gears to match your terrain or driving style
🎁 Package Includes:
-
1x Furitek PASO PRO 60/100A Sensored/Sensorless ESC with built-in wireless module
-
1x Furitek IMPULSE 2835 5600KV Sensored Motor with 3.17mm Shaft
-
2x Pinion Gears – 14T & 15T (0.5M, 3.17mm shaft)
-

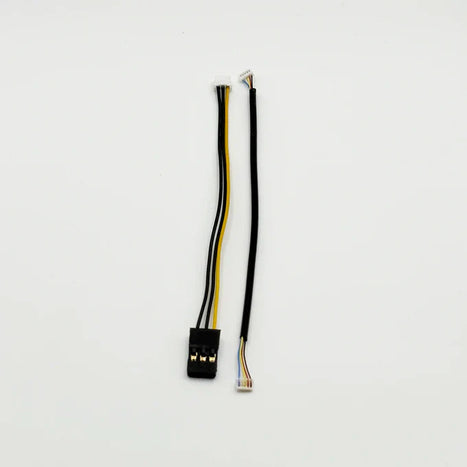

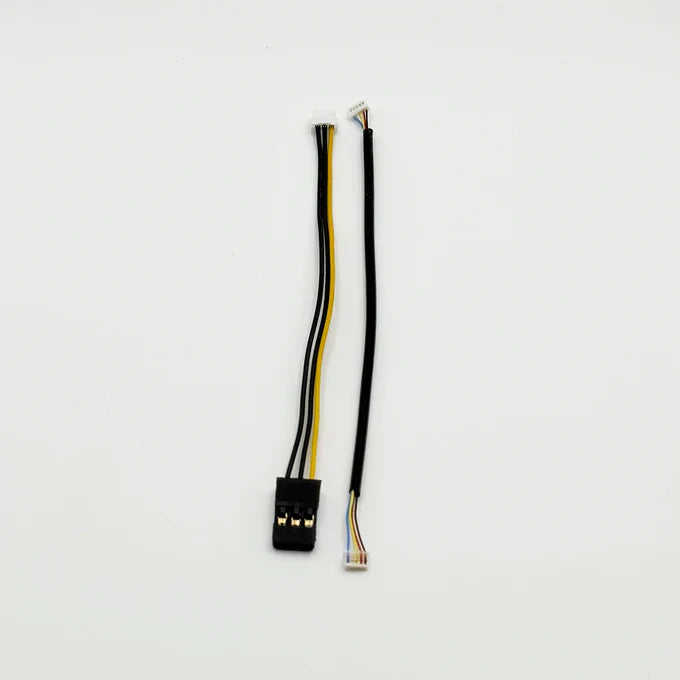

1x Sensored Cables
-
1x Signal Cable
-
1x User Manual
💬 Why Upgrade to VORTEX-X?
The stock Losi Mini LMT setup is fun, but the VORTEX-X system unleashes its full beast mode.
The ESC + 3.17mm shaft motor combo offers better throttle precision, more torque, and far greater durability.
With included 14T & 15T pinions, you can easily fine-tune your gear ratio for different driving styles.
Whether you’re bashing, backflipping, or wheelie-popping — this system keeps up and begs for more.
