MEUS Racing TRX4M Metal Isokinetic Front and Rear Axles with 3-Section CVDs, Maximum Steering Angle 52° Wider +5MM for 1/18 TRX4M Ford Bronco, Land Rover Defender, Chevrolet K10 High Trail, Ford F-150 High Trail RC crawlers.
Key Features:

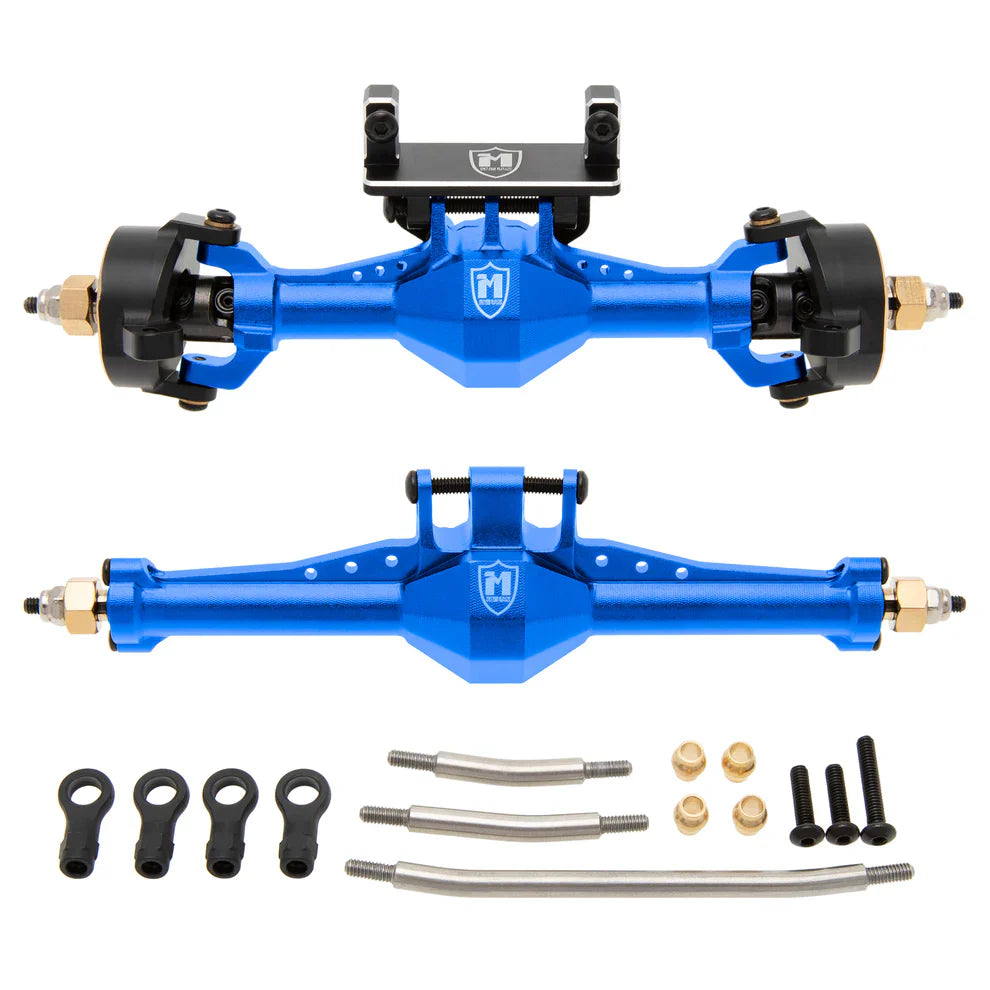

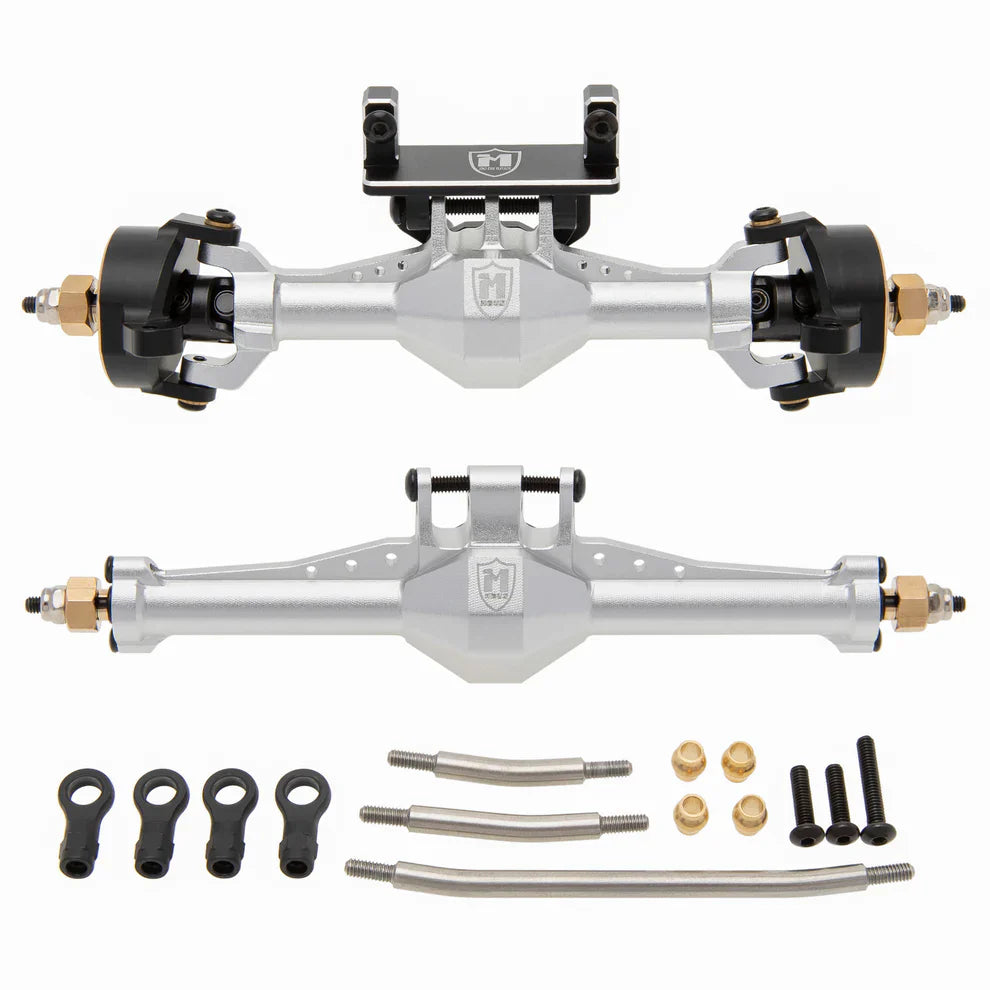

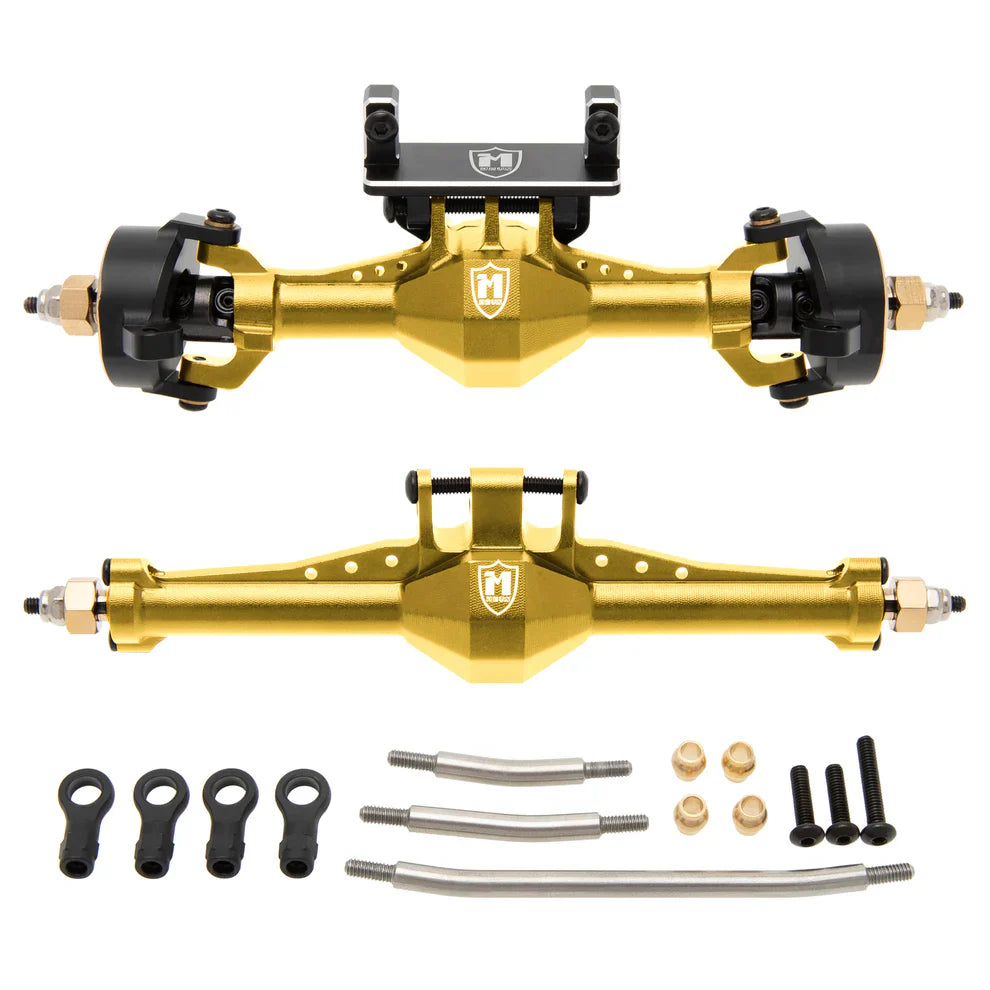

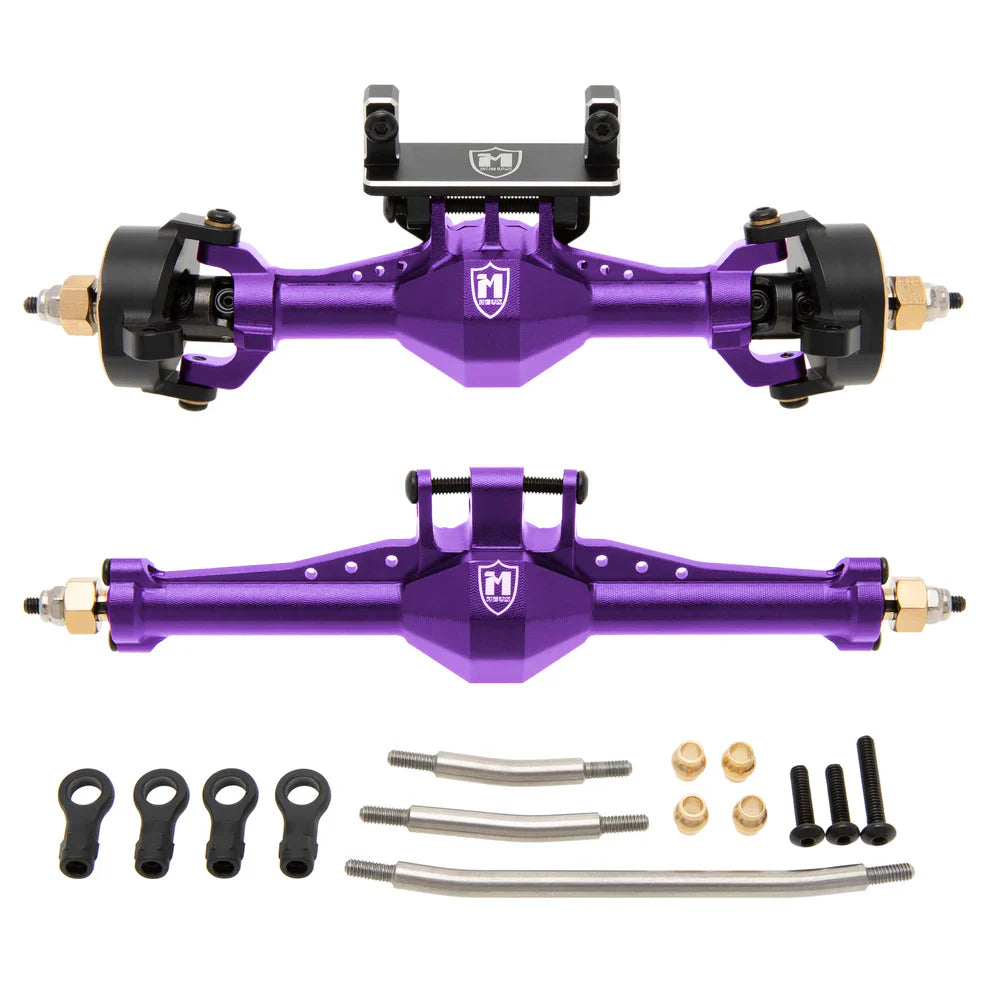

- 1. The silver and gold axle housing surfaces are chrome-plated, the blue and purple are anodized to improve corrosion resistance, enhance wear resistance, extend service life, and improve appearance.
- 2. MEUS Racing's patented 3-Section-CVD structure effectively reduces the shaking of the front wheel when turning and improves steering performance.
- 3. Both sides of the front and rear axles are widened by +5mm to obtain more space while steering, thus providing more tire options.
- 4. Front and rear are equipped with customized 12-24T gears. Front and rear axles support all specifications of aftermarket gears.
- 5. The front axle supports two servo fixing options, with the default being the horizontal servo.
- 6. Brass steering knuckles added weight; other parts, such as differential covers, servo mount, and rear link mount, are made of high-quality aluminum alloy for greater durability, strength, and stability to handle aggressive driving.
- 7. If you want the front wheels to overdrive, please change the differential gear of the front axle to 12-22T.
- 8. The TRX4M Isokinetic axles work with TRX4M Ford Bronco, Land Rover Defender, Chevrolet K10 High Trail, Ford F-150 High Trail.
Specifications:
- Axle housing material: Aluminum alloy
- Steering knuckle material: Brass
- Diff gear material: 20CrMo Alloy Steel
- CVD Shaft material: Hardened Steel
- Diff cover material: Brass
- Diff gear: 12-24T
Package List:
1 × TRX4M Isokinetic front axle
1 × TRX4M rear axle
3 × Steering Links
1 × Servo Mount
1 × Screws set
