Specifications:
Main rotor diameter: 935mm (with 420mm blades)
Main blades length: 420mm
Tail rotor diameter: 194mm (with 72mm tail blades)
Tail blades length: 60 to 70mm
Cyclic servos: Micro size 23mm
Tail servo: Mini size 35mm

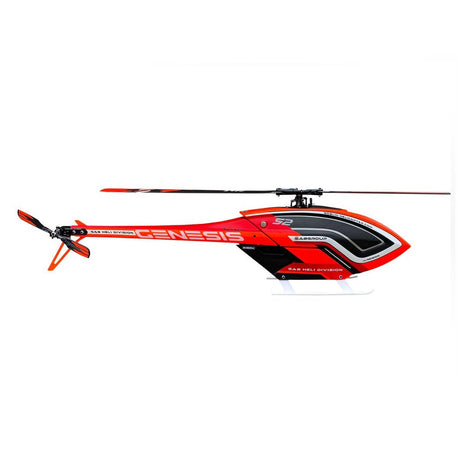

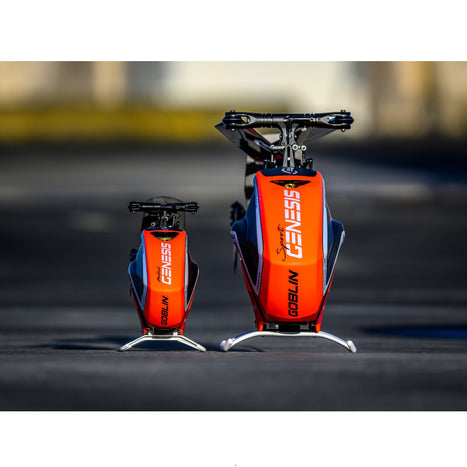

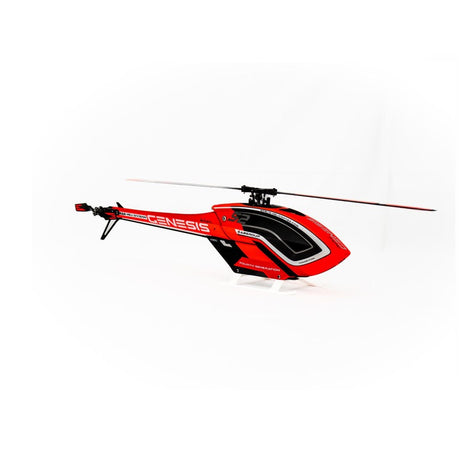

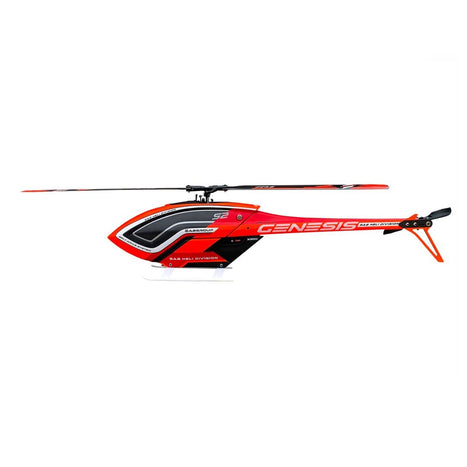

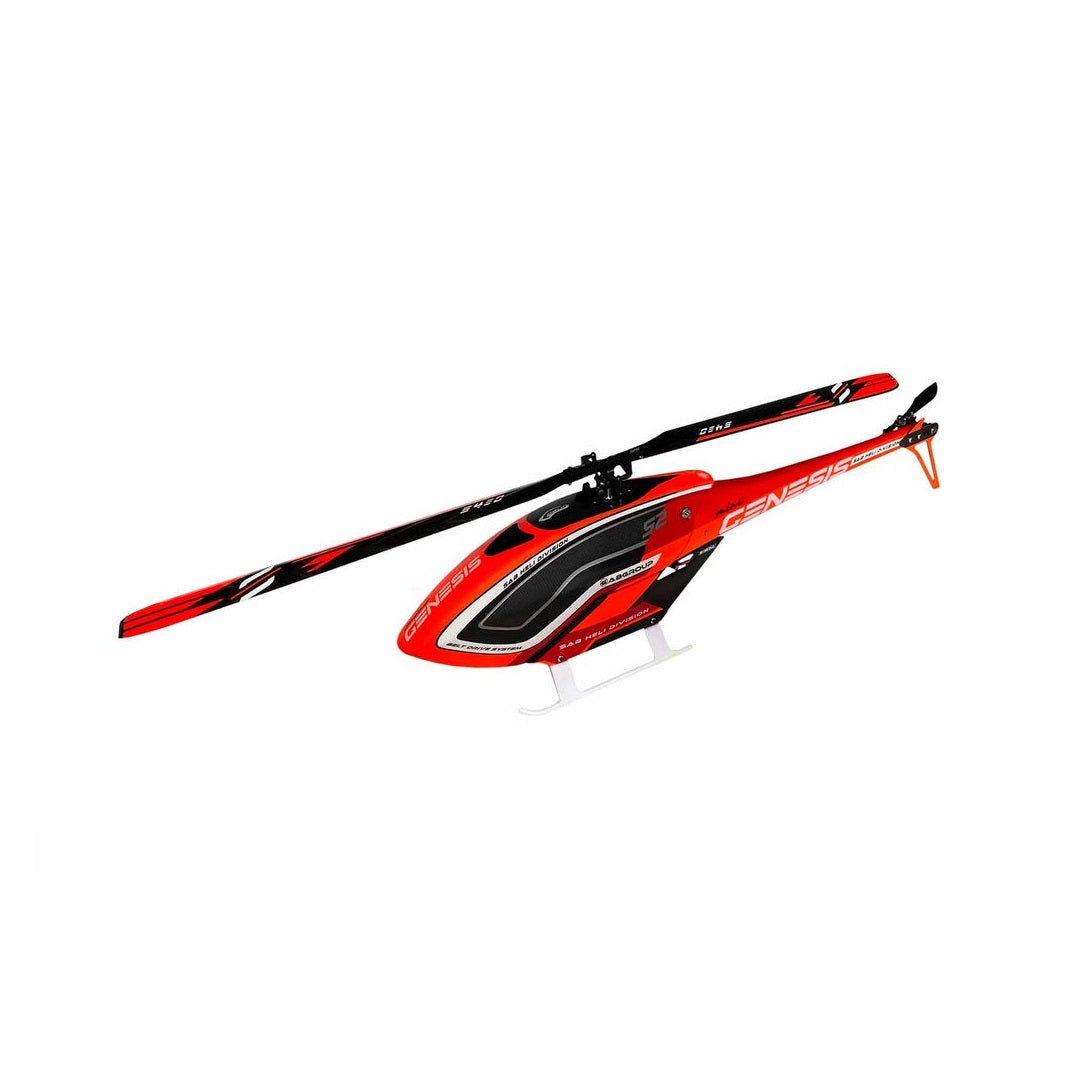

The all new Genesis Sport mini version is based on the already proven design of the Raw 420 competition. Sharing the same mechanics, transmission, head and tail, the Genesis Sport "mini" offers better visibility making it ideal for those who prefer an easier to see, sport flying or mild 3D flying machine.
Maximum battery size: 140x40x50mm (max)
Recommended battery: 6s 2200/2700 mAh
Recommended battery weight: 350-420 grams
Recommended motor: 3020 – 3215 – 3220/ 900-1000 KV
Recommended ESC: 60-80A
Molded carbon Canopy, Tail Boom, Side Frame
Main shaft: 8mm, Tail shaft: 5mm
Tail rotor ratio 4:1
Main Features:
Carbon Fiber Genesis fuselage
The same design Genesis fuselage but smaller, made by carbon fiber
Tail servo located on boom
Easy to install or remove tail servo
Battery tray with SAB connector insert backward
Easy insert/remove battery with out the need of open canopy
SAB ESC connector
No need to worry about ESC connector, kit includes!
Perfect match with SAB Battery connector and tray
New design tail push rod
Just as same as the ILGoblin PRO/RAW, mini Genesis using new design tail push rod
SAB traditional tail system
The traditional tail system maximum your control in flight
