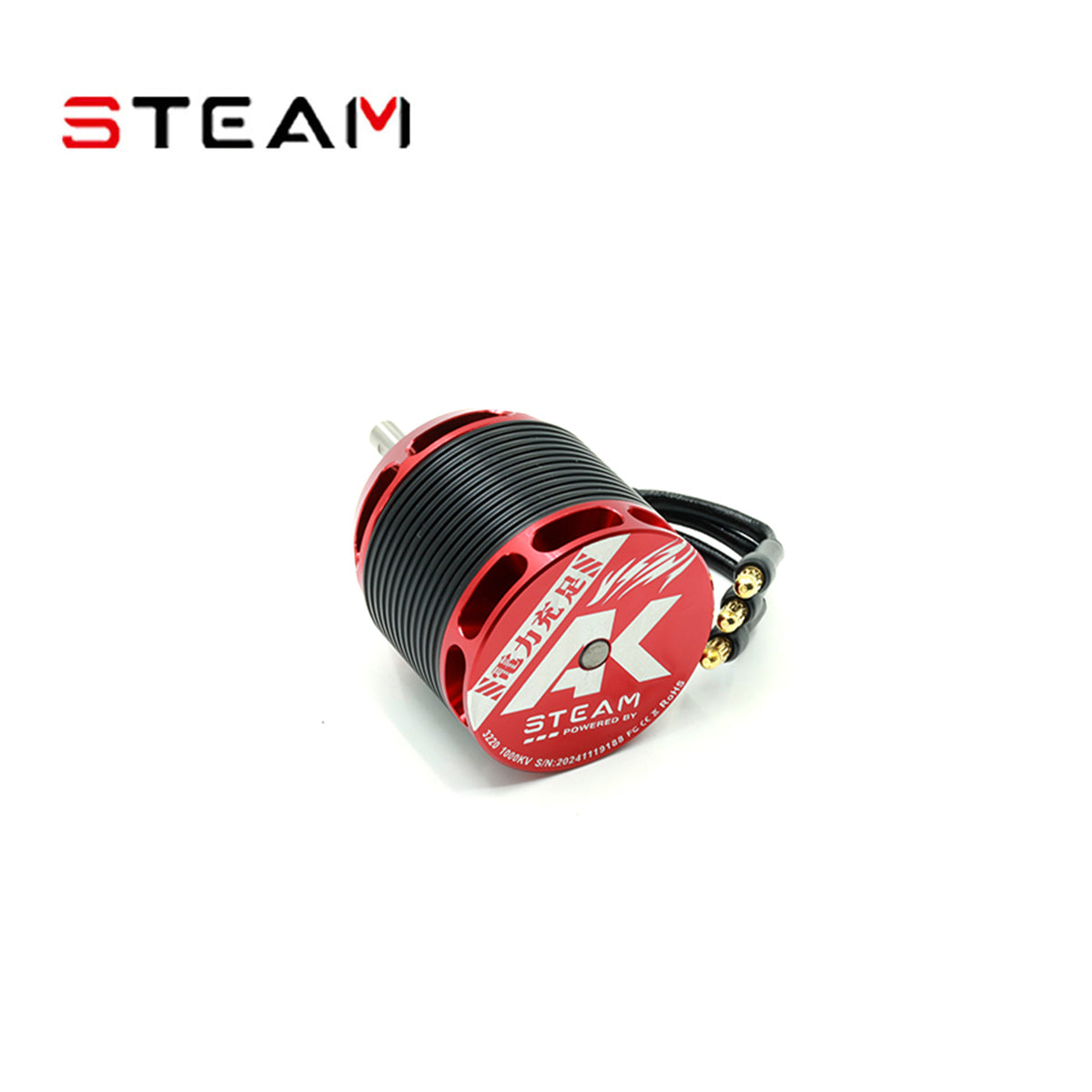

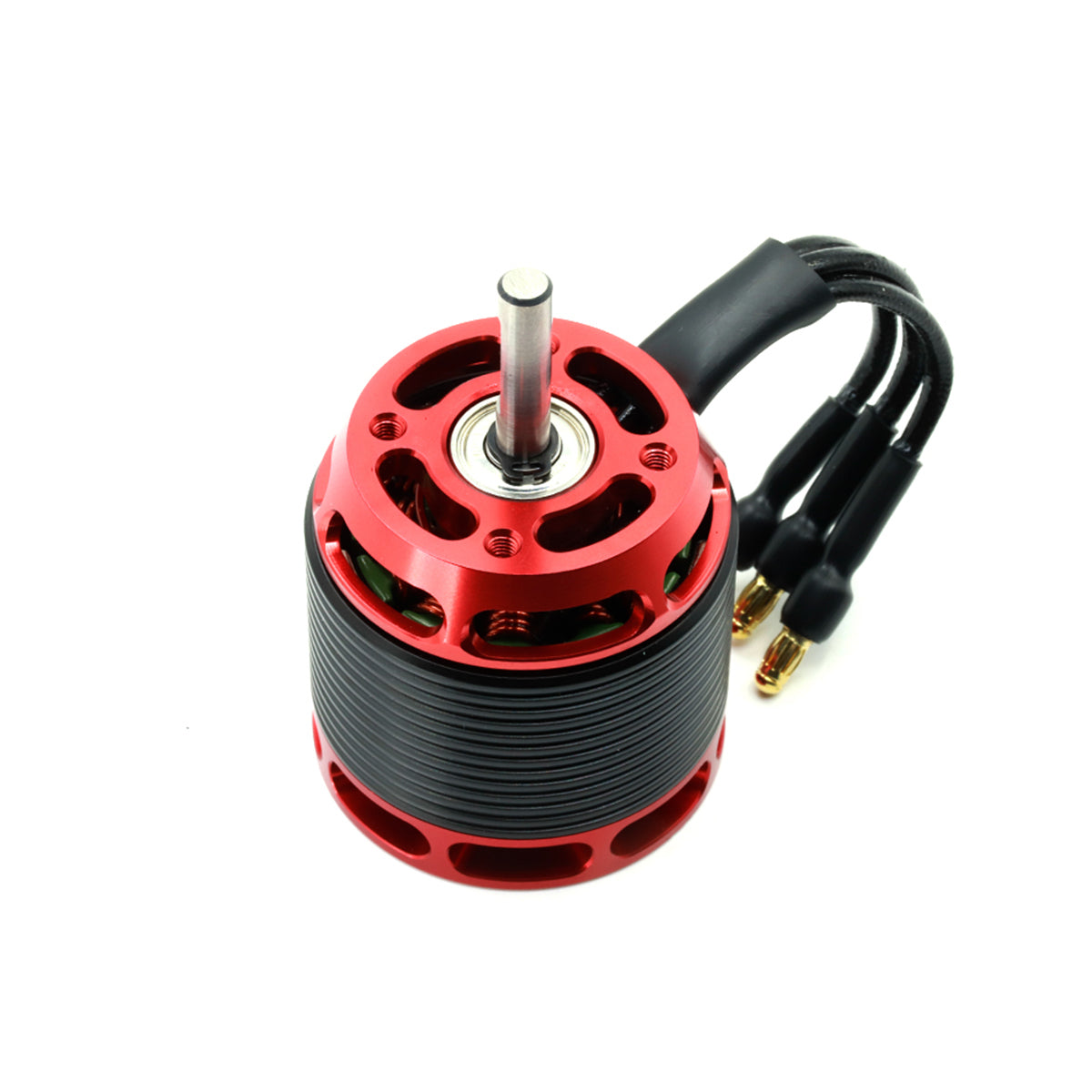

Steam 3220-1000kv Brushless Motor - Red
Steam 3220-1000kv Brushless Motor - Red
Steam 3220-1000kv Brushless Motor - Red

Steam 3220-1000kv Brushless Motor - Red

Vendor: SteamRC
SKU: MD3220-1000KV
$65.00
$65.00
Apply for Dealer Pricing
Steam 3220-1000kv Brushless Motor - Red

Steam 3220-1000kv Brushless Motor - Red

$65.00
Steam 3220-1000kv Brushless Motor - Red
Steam 3220-1000kv Brushless Motor - Red
Steam 3220-1000kv Brushless Motor - Red

Steam 3220-1000kv Brushless Motor - Red

$65.00
Description

Specification:

  • Motor shaft diameter：5mm
  • Motor shaft length：21mm
  • Stator Diameter：32mm
  • Stator Thickness：20mn
  • No. of Stator Arms：8mm
  • Number of slots/poles: 10N/10P
  • Motor Wind: 5+3 Turn Delta
  • Motor wire diameter：0.86mm
  • Motor Kv: 1000KV RPM/Volt
  • Weight: 172 Grams
  • Outside Diameter: 40.8 mm
  • Shaft Diameter: 5 mm
  • Body Length: 54.5 mm
  • Overall Shaft Length: 90 mm
  • Max Lipo Cell: 6s
  • Peak Continuous Current: 130 Amps (5 seconds)
  • Peak Continuous Power: 2920 Watts (5 seconds)
  • Motor Timing: 5deg~12deg
  • Drive Frequency: 8kHz~32khz
