TORQ Servo TCM-1011 for TRX-4M & TRX-4MT

Vendor: TORQ Servos
SKU: TORQ-TCM-CB3
$29.99
$34.98
$29.99
Apply for Dealer Pricing
TORQ Servo TCM-1011 for TRX-4M & TRX-4MT

TORQ Servo TCM-1011 for TRX-4M & TRX-4MT

$34.98 $29.99

TORQ Servo TCM-1011 for TRX-4M & TRX-4MT

$34.98 $29.99

TORQ Servo TCM-1011 fitting TRX-4M & TRX-4MT needs:

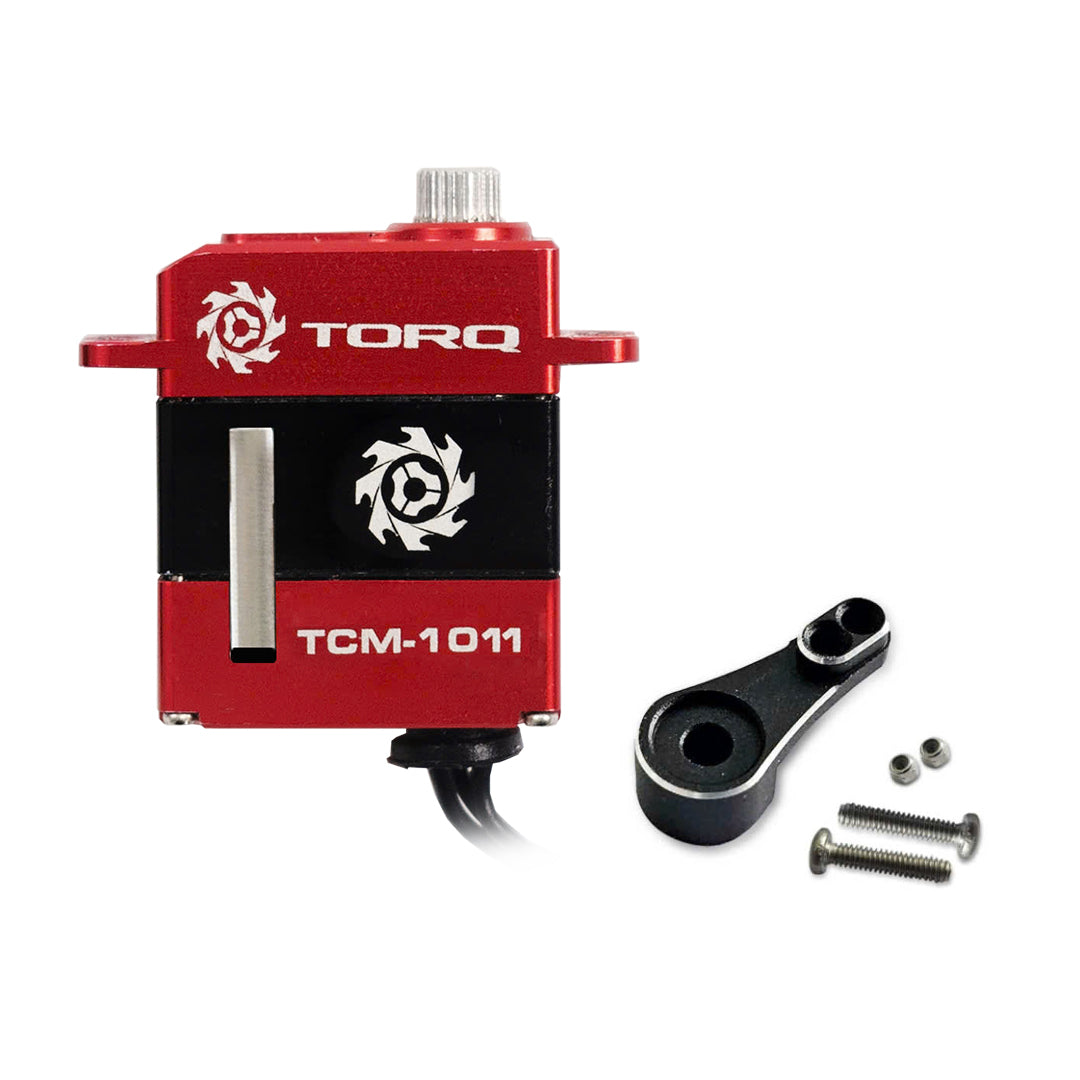

  • TCM-1011 Full CNC Case Metal Gear Coreless Servo

  • Features

    - High Torque Output: Delivers powerful performance for small-scale crawlers.

    - Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

    - Simplified Installation: Easy to mount due to its unique design.

    - Enhanced Clearance: Designed for ultimate clearance around the servo.

    Specifications

    - Dead Bandwidth: 2μs

    - Working Frequency: 1520μs / 330Hz

    - Operating Voltage: 6.0V - 8.4V

    - Motor Type: Coreless Motor

    - Operating Speed:

         - At 6.0V: 0.1 sec/60°

         - At 8.4V: 0.07 sec/60°

    - Stall Torque:

         - At 6.0V: 8.2 kg-cm (113 oz-in)

         - At 8.4V: 11.5 kg-cm (160 oz-in)

    - Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

    - Weight: 20.0 g (0.7 oz)

    - Connector Wire Length: JR 170 mm (6.7 inches)

    - Output Gear Spline: 25T

  • TSP-1001 Servo horn for TRX-4M & TRX-4MT
