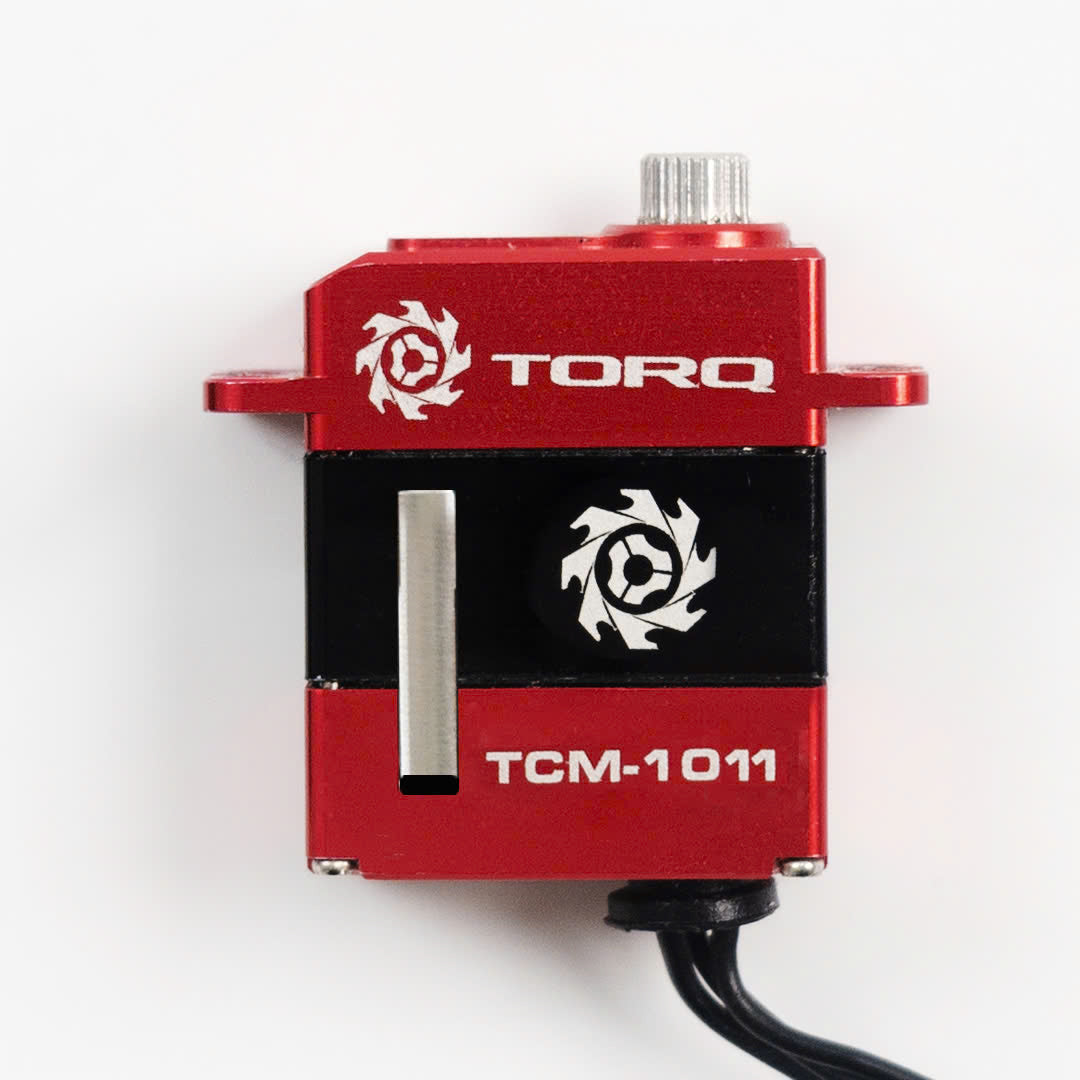

TORQ TCM-1011 Full CNC Case Metal Gear Coreless Servo

TORQ TCM-1011 High Torque Micro Servo - RED

The TORQ TCM-1011 High Torque Micro Servo is expertly engineered to cater to the needs of small-scale crawlers.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The servo bolts in for the Axial SCX24 Bronco, Axial SCX24 1967 Chevrolet C10, Axial SCX24 DODGE POWER WAGON, Axial SCX24 DEADBOLT, Axial SCX24 JEEP JT GLADIATOR (requires using the edge hole and trimming the shock mount slightly)

 Features

- High Torque Output: Delivers powerful performance for small-scale crawlers.

- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

- Simplified Installation: Easy to mount due to its unique design.

- Enhanced Clearance: Designed for ultimate clearance around the servo.

Specifications

- Dead Bandwidth: 2μs

- Working Frequency: 1520μs / 330Hz

- Operating Voltage: 6.0V - 8.4V

- Motor Type: Coreless Motor

- Operating Speed:

  - At 6.0V: 0.1 sec/60°

  - At 8.4V: 0.07 sec/60°

- Stall Torque:

  - At 6.0V: 8.2 kg-cm (113 oz-in)

  - At 8.4V: 11.5 kg-cm (160 oz-in)

- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

- Weight: 20.0 g (0.7 oz)

- Connector Wire Length: JR 170 mm (6.7 inches)

- Output Gear Spline: 25T

Benefits

- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

- Ease of Installation: Simplifies the mounting process, saving time and effort.
