XB-F1 XBILITY F1 1/28 Formula One Chassis (Without servo)

DOWNLOAD FULL MANUAL: HERE

Xbility XB-F1 – Precision, Innovation, and Performance in 1:28 Scale

The Xbility XB-F1 was designed to raise the standard in 1:28 scale racing, bringing fresh solutions, real adjustability, and a strong focus on track performance.

Key Features:

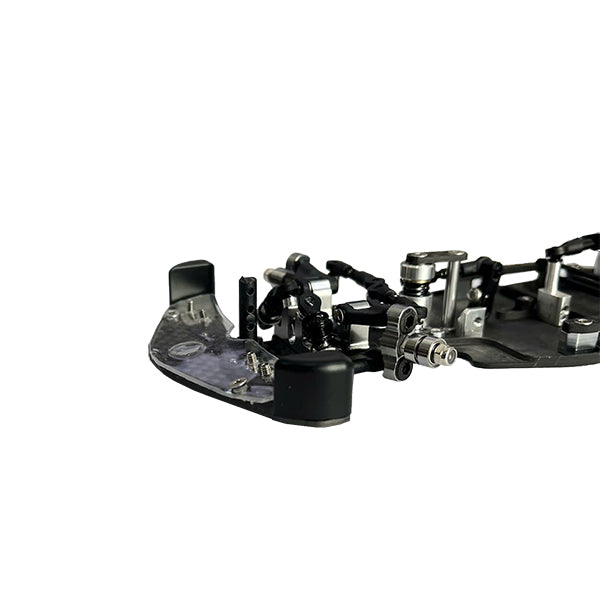

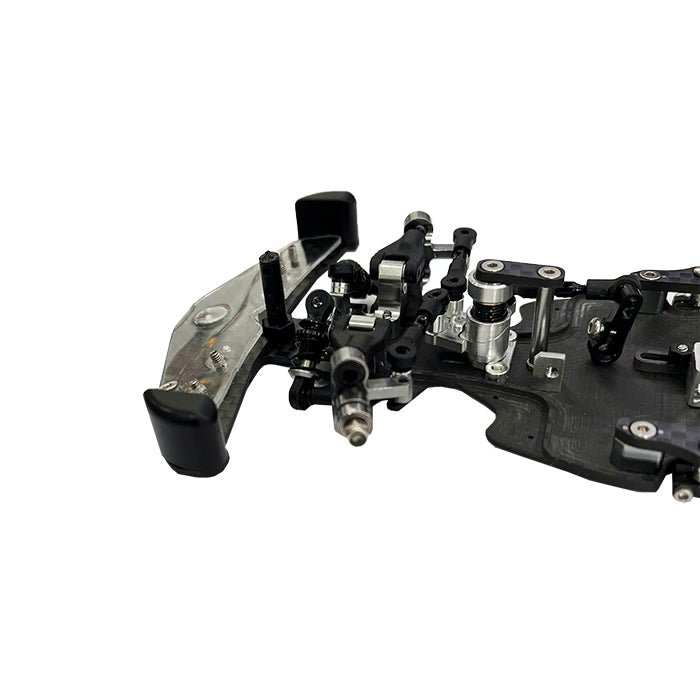

• New front-end with steering knuckles inspired by 1/8 on-road
  Easily adjust camber and track width for sharper, more linear steering response.
• Easy front and rear track width adjustment
  Quick and simple adjustment of both front and rear track width.
• Multiple roll center and camber gain options
  Fully tunable front geometry to suit different driving styles and track conditions.
• Revolutionary 3-point ball differential
  Solves common issues with wheel mounting and ensures smooth, consistent performance.
• Battery position adjustment (fits 24mm or soft packs)
• Fully aluminum servo saver with Ackermann adjustment
  Designed to protect the servo from impacts, always return to center, and allow Ackermann tuning directly on the servo saver.

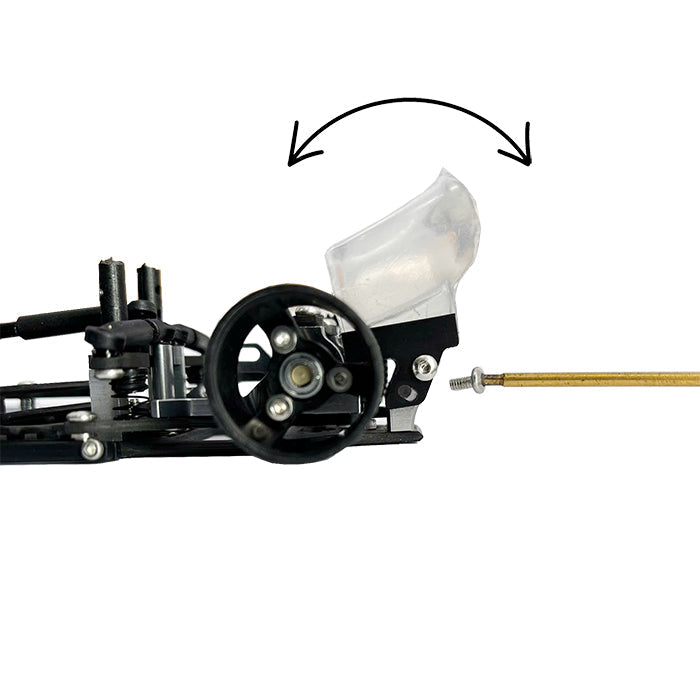

• Adjustable front and rear spoilers
  Angle-adjustable front and rear spoilers to fine-tune downforce for different track conditions.
• Machined carbon chassis
  Engineered for the perfect balance between strength and flexibility.

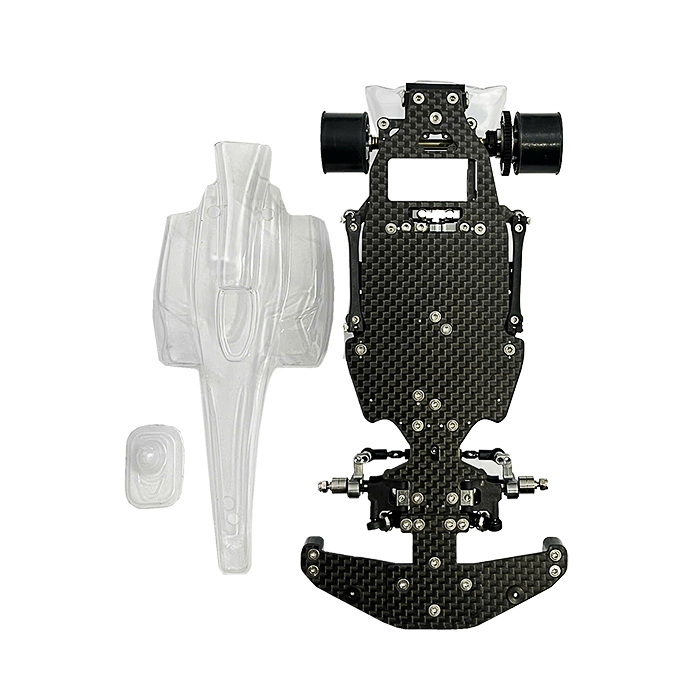

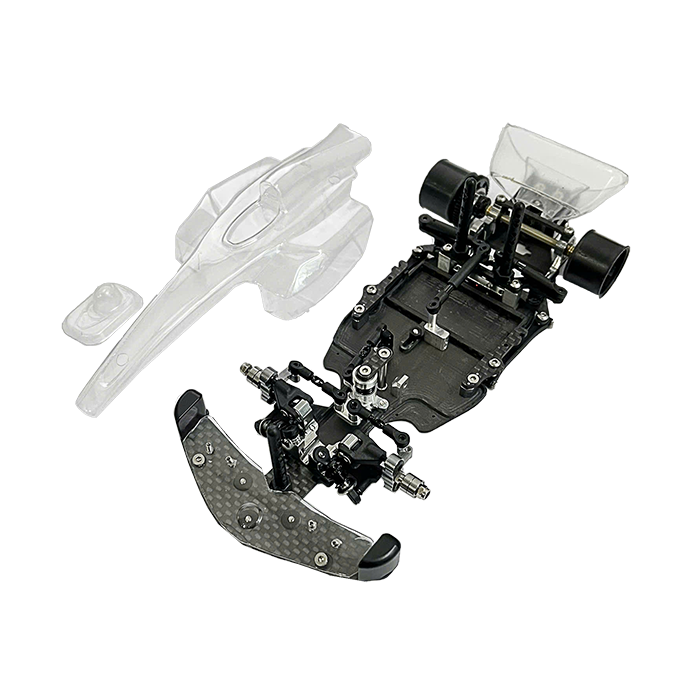

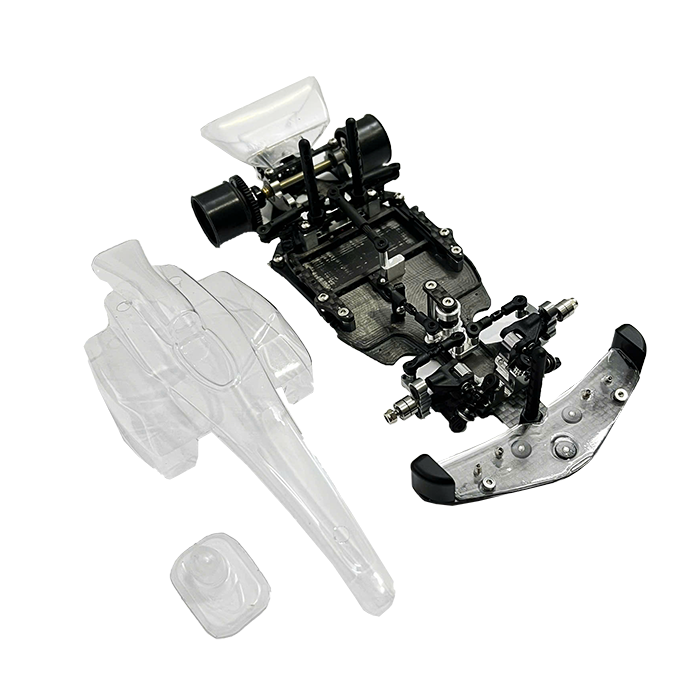

Included in the kit:

• Complete F1 body shell
• 2pcs 14mm rear rim
• Printed manual with setup and assembly guidance
