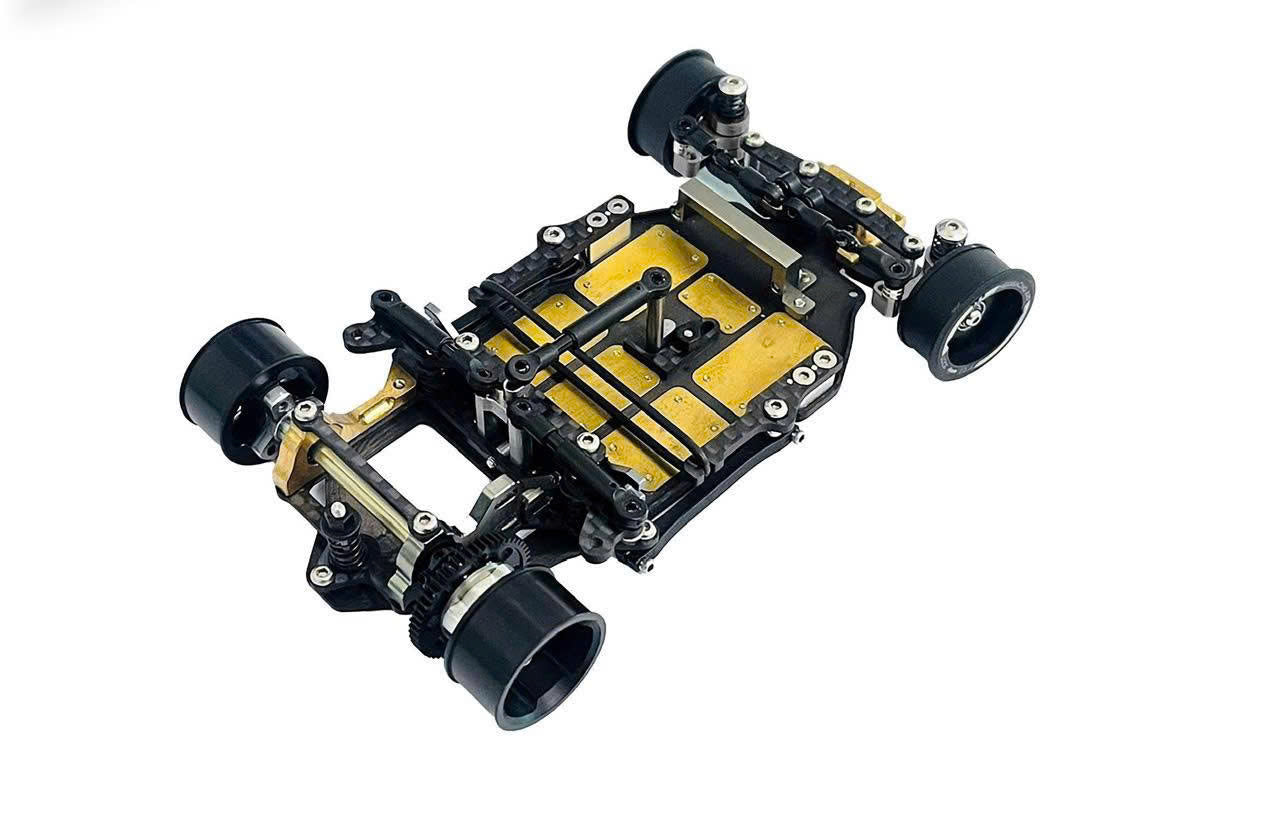

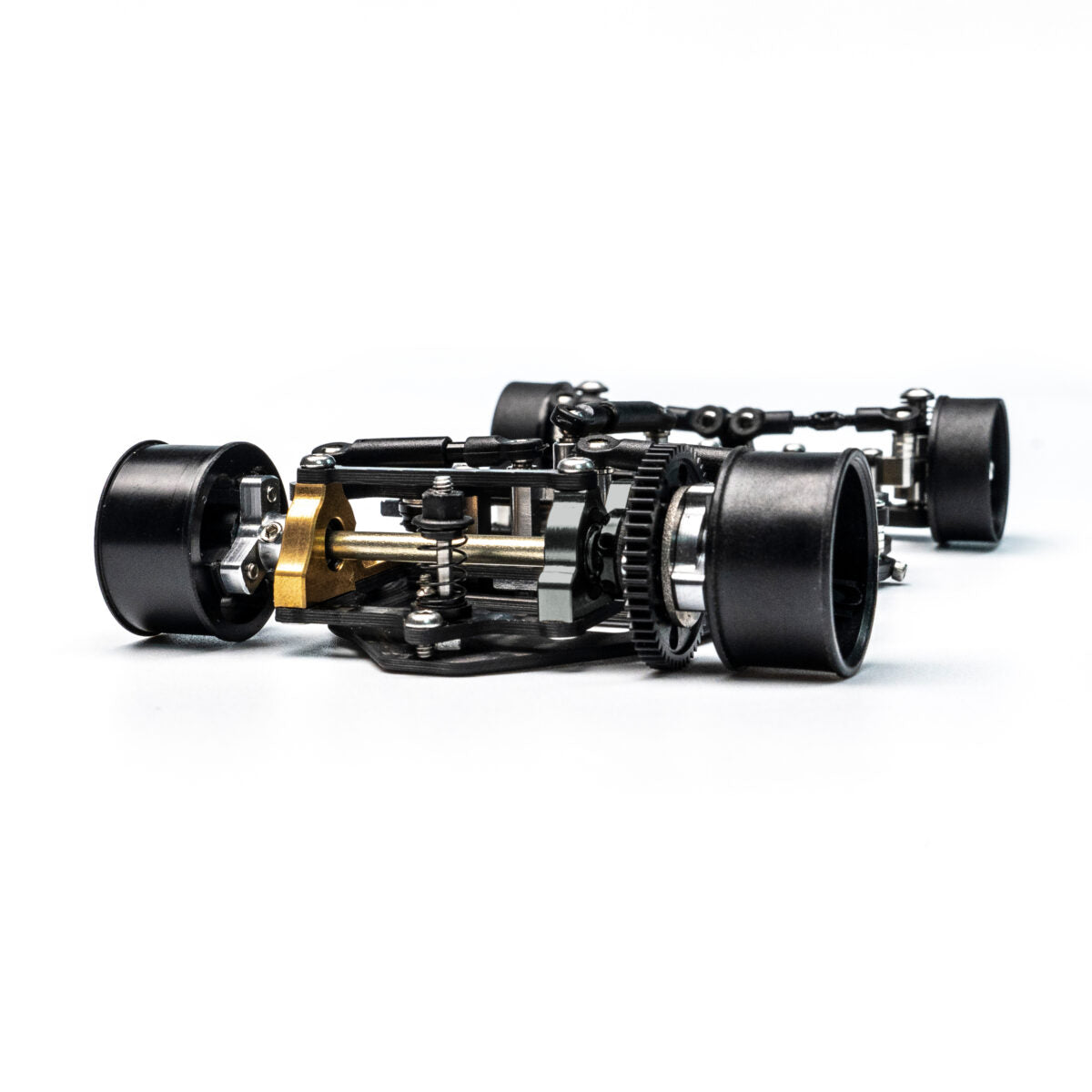

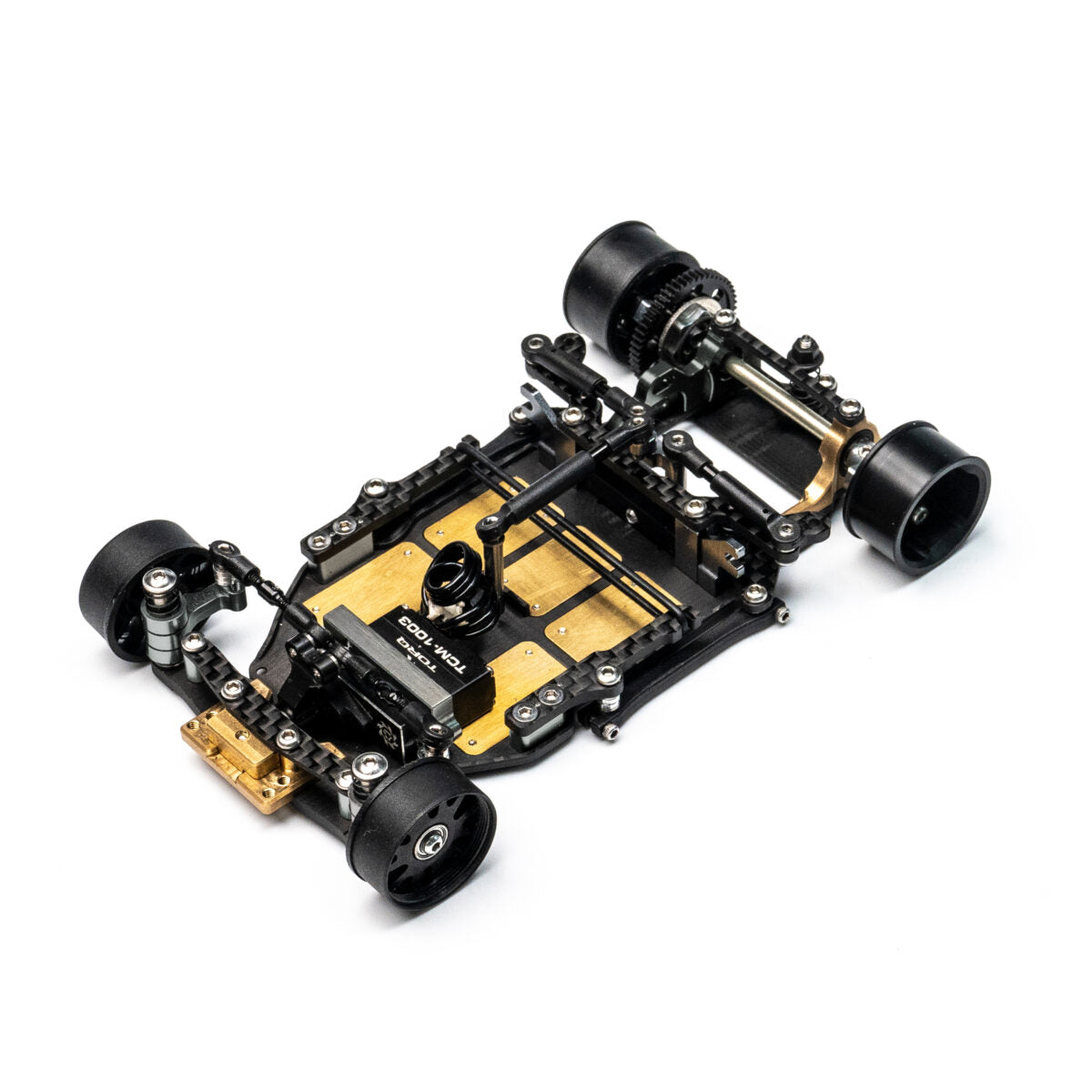

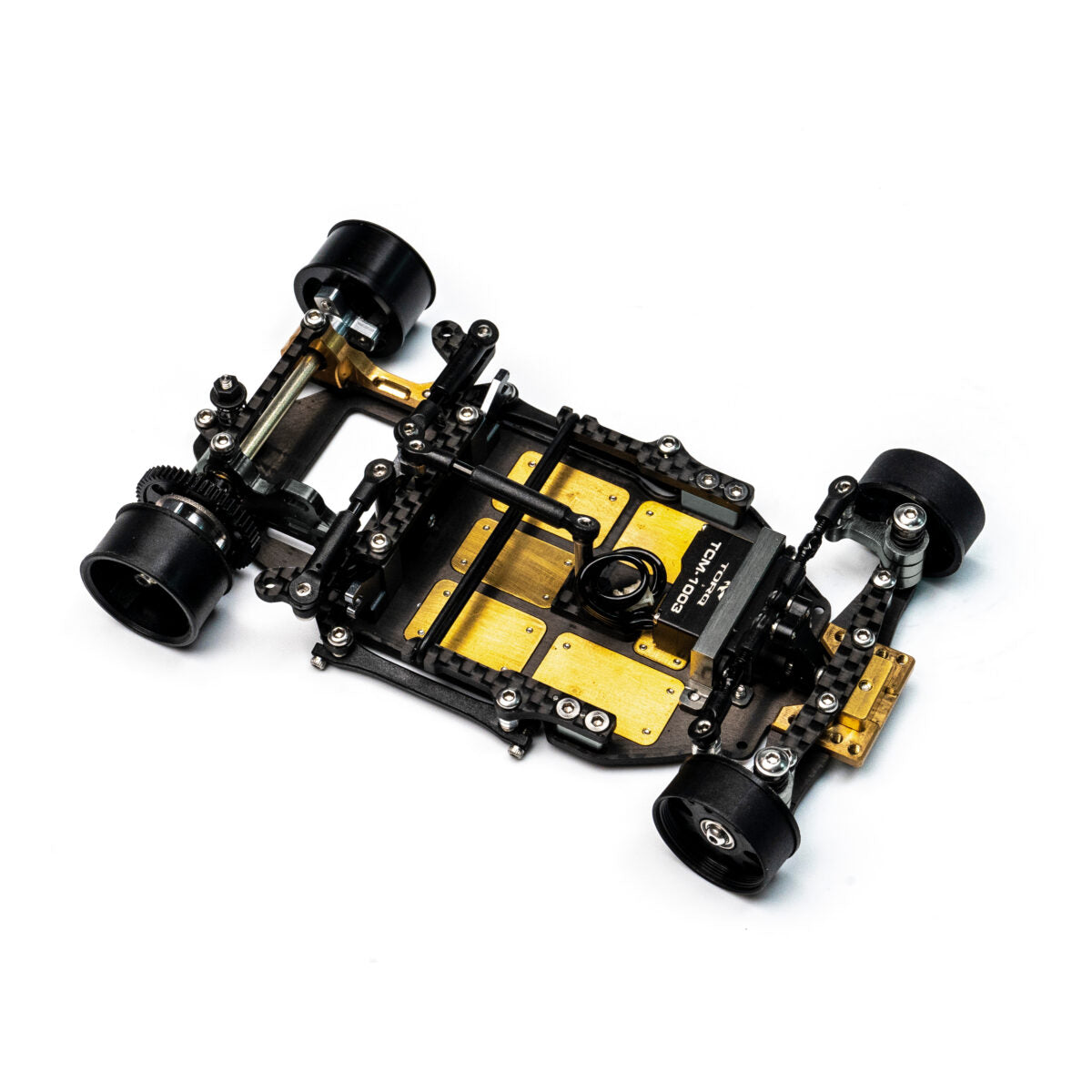

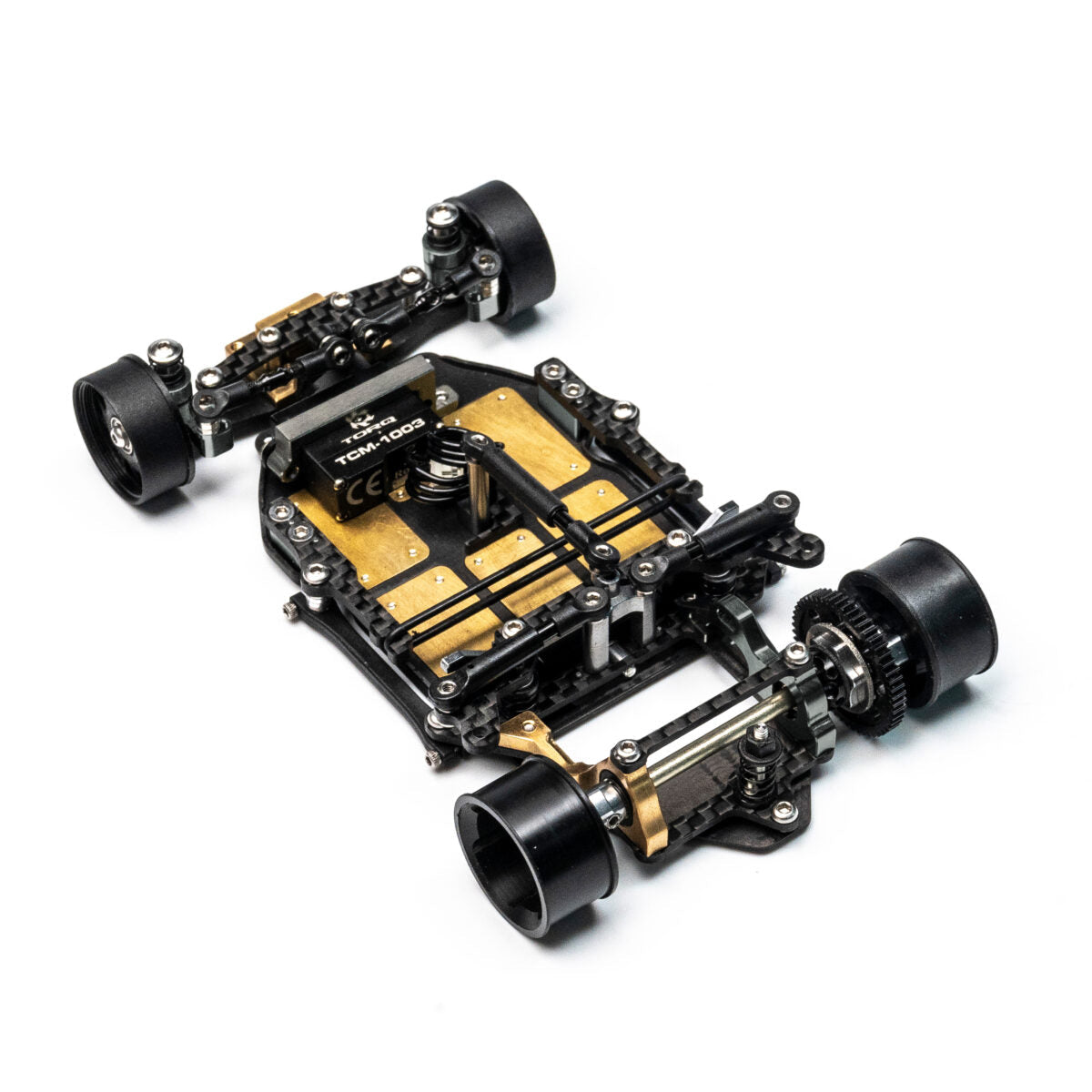

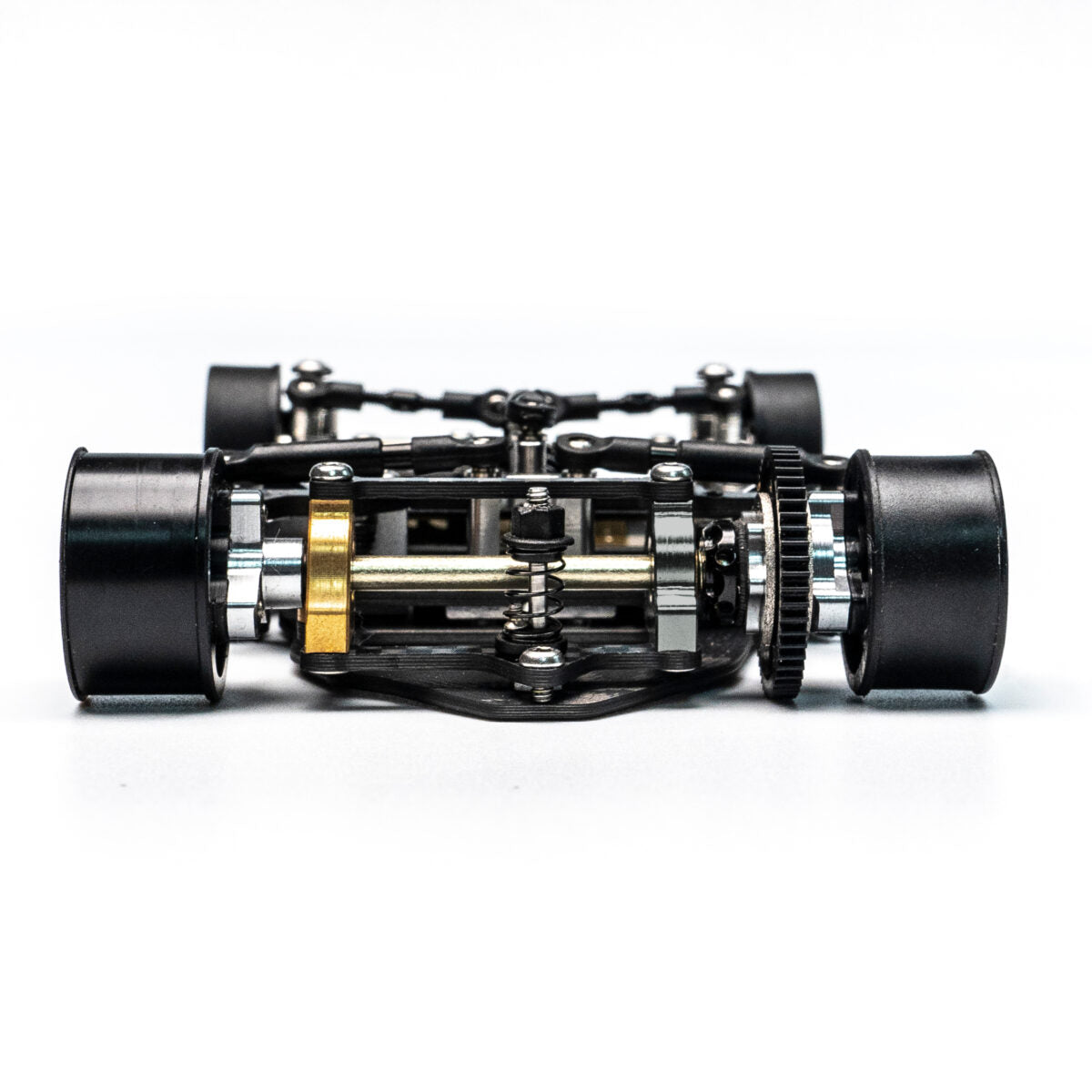

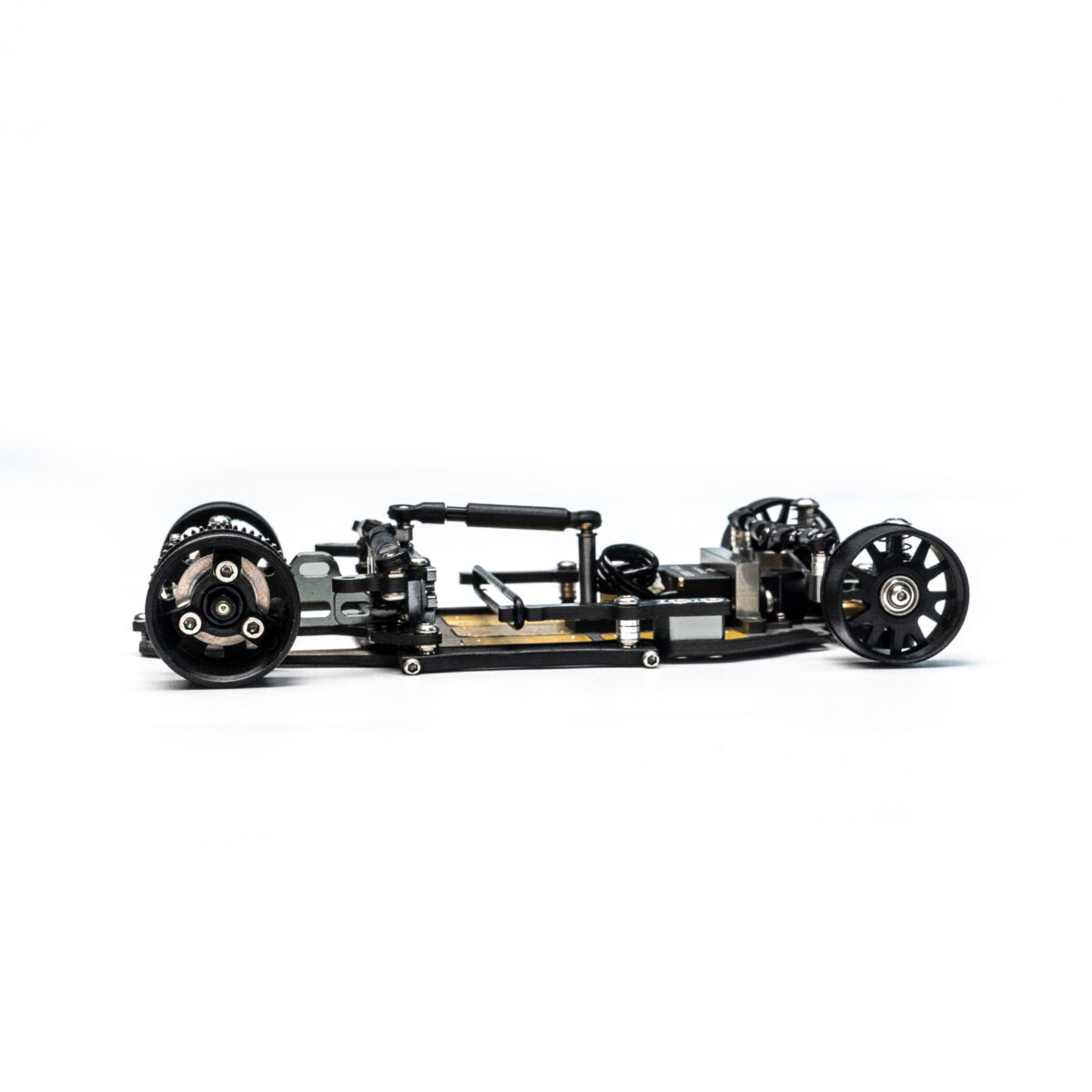

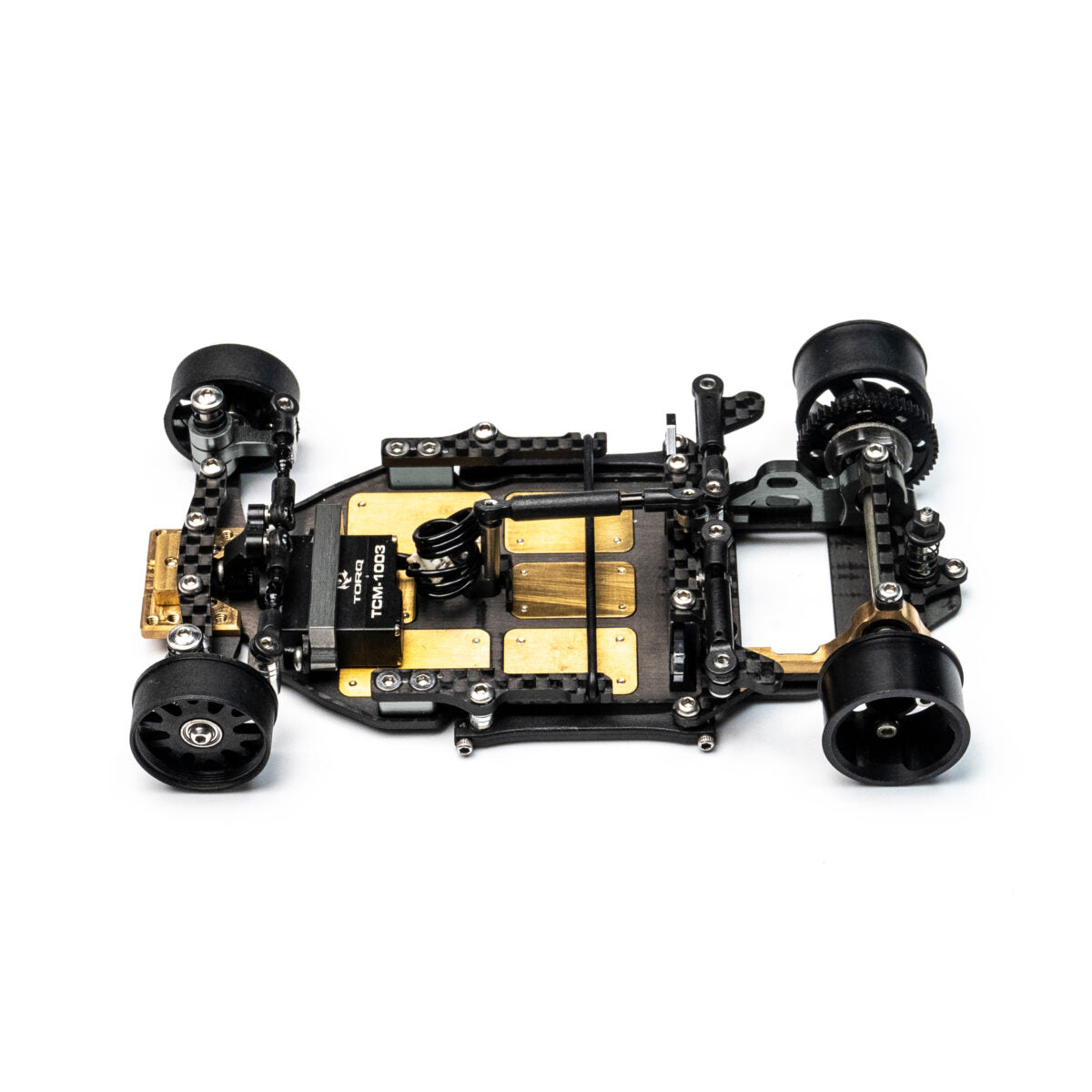

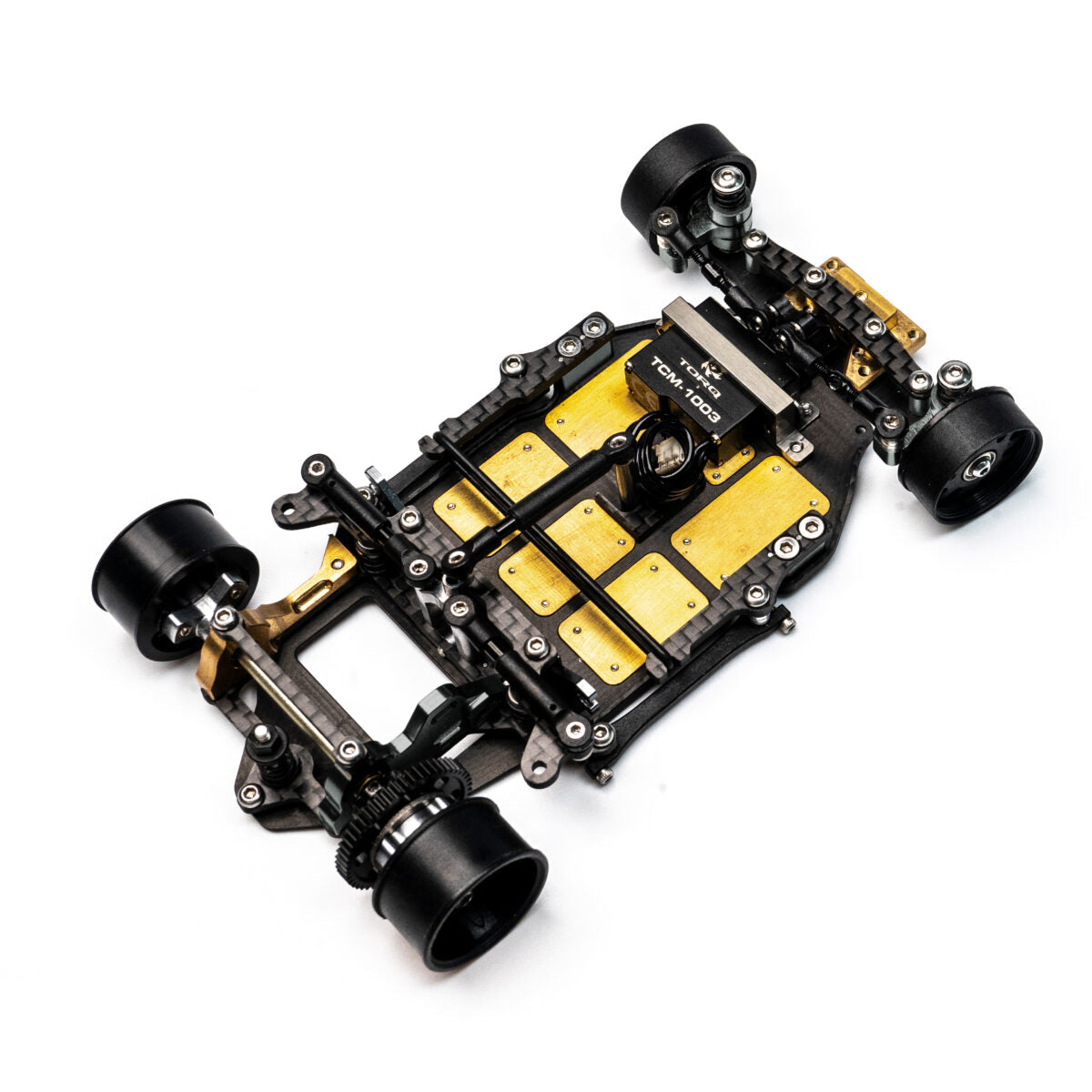

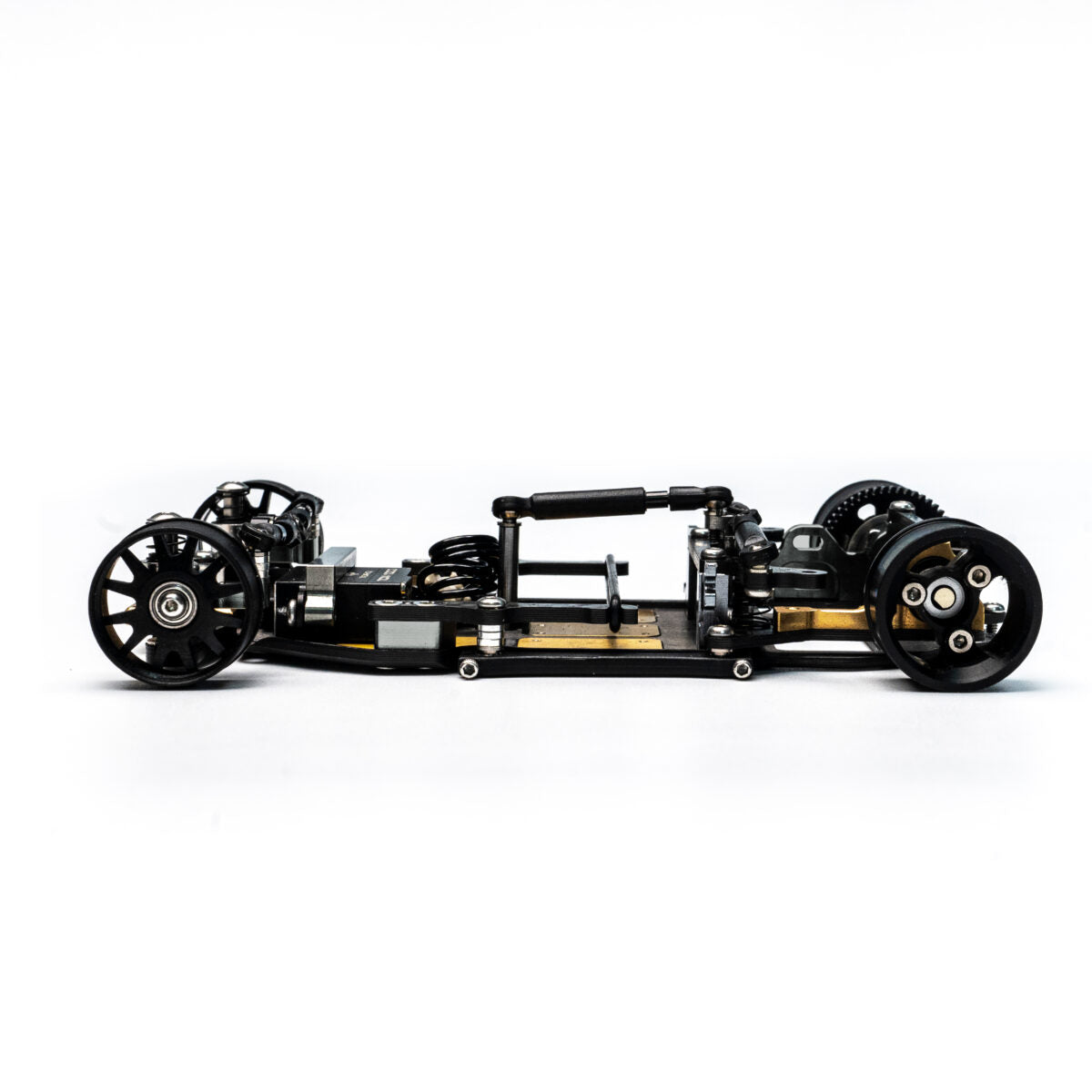

Xbility Simple Front 1/28 RWD Chassis (Without Servo)

Manual—> Click Here:Manual XB1-SF_FINAL

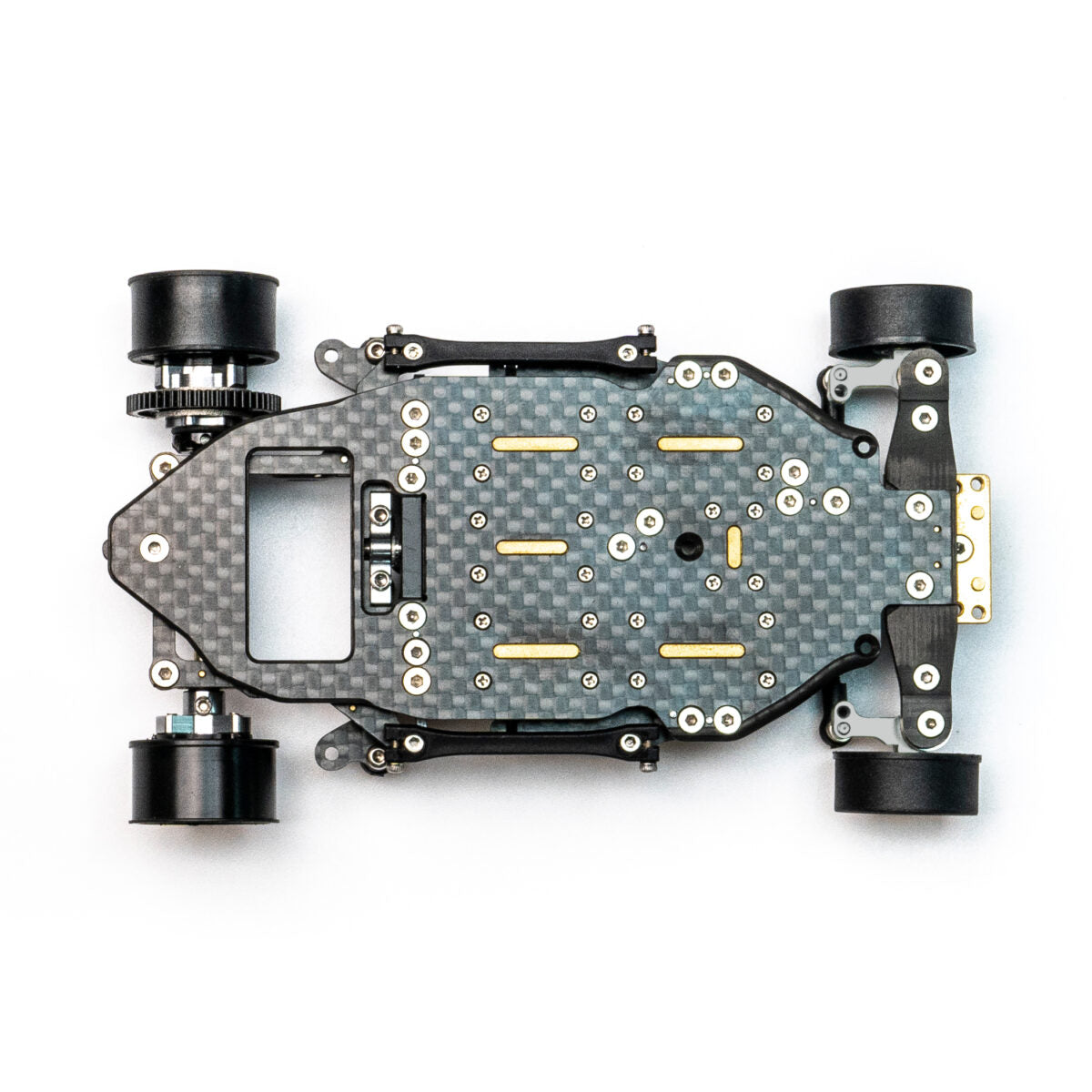

The lightweight carbon fiber chassis works together with strategically positioned brass components to achieve the ideal combination of chassis flex, weight distribution, and center of gravity. This combination provides excellent traction, predictable handling, and consistent performance across a wide range of track conditions.

Another key feature of the XB-SF is its front ride height adjustment system. Precision stainless steel shims are installed between the carbon chassis and the Simple Front assembly, allowing front ride height to be adjusted quickly and accurately without affecting camber, caster, or any other suspension settings. This enables fast, repeatable setup changes while preserving the car’s suspension geometry.

The redesigned damper plate features a new side spring geometry that has been carefully optimized to improve chassis rotation while maintaining stability and rear-end traction. By relocating the side spring mounting positions, the XB-SF delivers a more responsive feel through corner entry and mid-corner, resulting in improved rotation and overall balance.

To preserve the natural flex characteristics of the chassis, the XB-SF features a floating servo mount that prevents the servo from influencing chassis twist. This allows the chassis to flex exactly as intended, resulting in more consistent handling and improved cornering performance.

The redesigned center pivot assembly features a simplified design with improved precision, ensuring smoother suspension movement, easier maintenance, and greater consistency on the track.

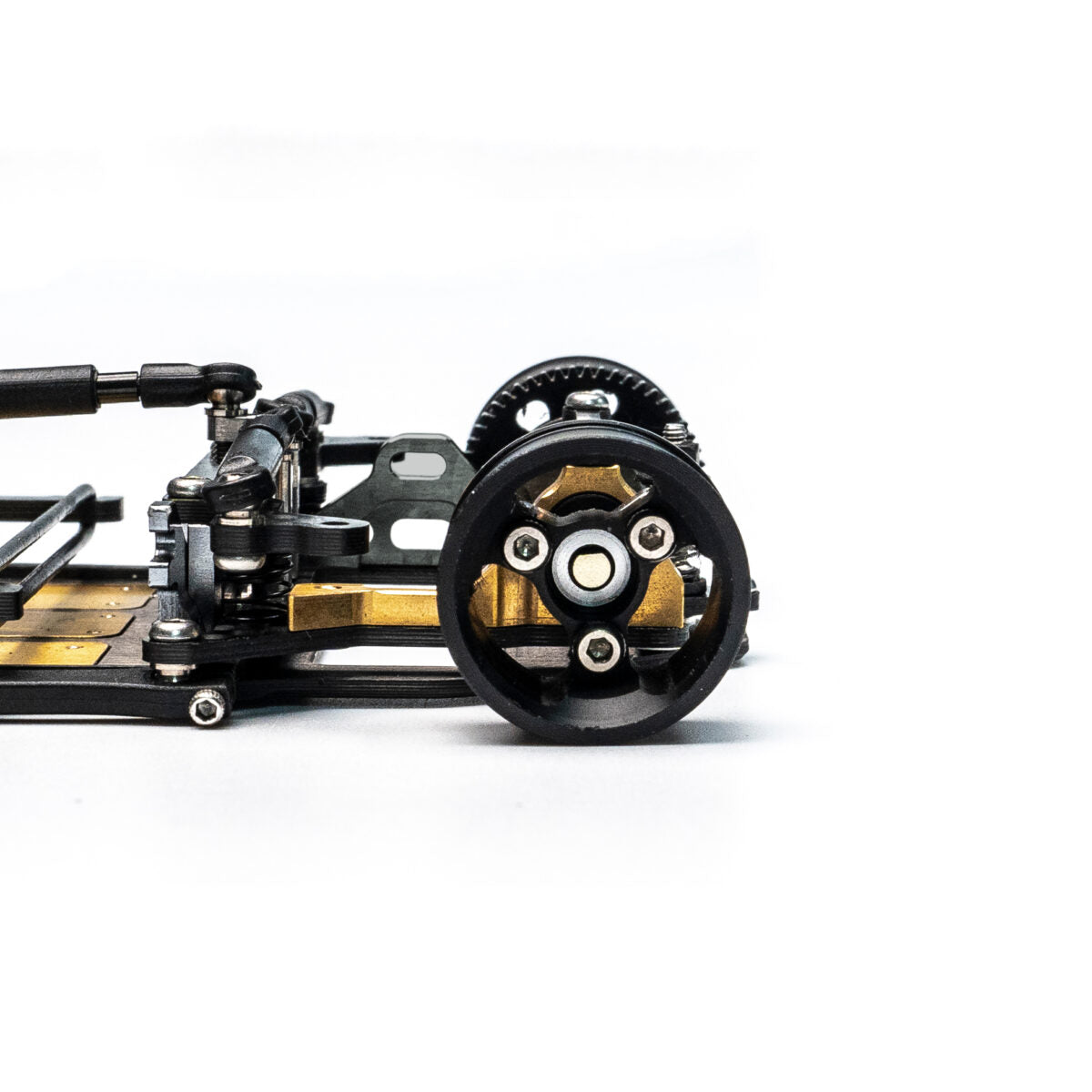

The XB-SF also features the Xbility 3-Point Ball Differential, a design pioneered by Xbility that has become recognized for eliminating wheel play while maintaining exceptional drivetrain precision. Its unique three-point wheel mounting system ensures perfect wheel centering, smooth operation, efficient power delivery, and outstanding reliability.

The newly developed V2 motor mount lowers the motor position by 0.5 mm, reducing the center of gravity and improving chassis balance. Complementing this is the V2 brass left motor mount, which strategically adds weight where it is most effective to optimize left-to-right weight distribution and achieve the ideal chassis balance.

The XB-SF kit is supplied with one pair of 11 mm rear wheels, one pair of 8.5 mm front wheels, and one pair of 23 mm front side discs, providing the ideal wheel package for the Simple Front suspension straight out of the box.

Every component of the XB-SF has been designed with a clear purpose: to simplify assembly and maintenance while maximizing performance. The result is a chassis that is easy to understand, easy to tune, and capable of competing at the highest level.

Key Features
Innovative Simple Front suspension.
Internal O-ring knuckles with integrated damping.
Camber adjustment by interchangeable king pins.
Caster adjustment by interchangeable carbon caster plates.
Lightweight carbon fiber chassis.
Strategically positioned brass components for optimized flex, weight distribution, and center of gravity.
Front ride height adjustment using precision stainless steel shims.
Front ride height adjustment without affecting suspension geometry.
Redesigned damper plate with optimized side spring geometry for improved chassis rotation.
Floating servo mount that preserves the natural chassis flex.
Simplified high-precision center pivot assembly.
Xbility 3-Point Ball Differential with zero wheel play.
V2 motor mount with a 0.5 mm lower motor position.
V2 brass left motor mount for optimized chassis balance.
Easy to assemble, maintain, and tune.
Competition-level performance.
Includes
1 × Xbility XB-SF 1/28 RWD Chassis Kit (Without Servo)
1 × Pair of 11 mm Rear Wheels
1 × Pair of 8.5 mm Front Wheels
1 × Pair of 23 mm Front Side Discs

Part Number: XB-SF
