XLPower Stratos 200

Compact Size · Big Heli Feel · Performance-Driven Design

Introduce

Meet XLPower’s new 200-class helicopter, engineered to deliver the feel of a larger machine in a compact, ultra-efficient package. Borrowing true 1:1 rotor geometry and control concepts from our 700-class platform, it delivers smooth, linear response with confident control. First in its class, an adjustable battery system unlocks true 4S performance. Factory-calibrated and built with an integrated motor and ESC drivetrain(Hobbywing Platinum V5 ESC), it features a clean, telemetry-ready electronics layout for a streamlined setup. A rapid service tail system ensures that even after a crash, repairs are quick and hassle-free, with no wiring or soldering required. Compact, performance-driven, and easy to maintain, it’s a micro helicopter that flies precise, responsive, and seriously fun.

Manual: Download

Features

True 1:1 Rotor Geometry

Using true 1:1 rotor geometry from our 700-class designs, it offers the feel of a big helicopter with smooth, predictable control and serious 3D capability.

• Big-heli feel
• Linear control
• Serious 3D

Dual Damping Options

With dual damping options, pilots can choose a direct, rigid feel or enjoy stable, quiet, and efficient 3D performance even at low head speeds

Option 1 - New Tapered design spindle dampers

• Maximum rigidity
• More direct control feel
• Precise and high head-speed 3D performance

Option 2 - Standard 90-degree O-ring dampers

• Excellent low head-speed stability
• Stable 3D performance even at low head speeds around 3700 RPM
• Quieter operation and higher efficiency

Azure Power - Factory High-Performance Blade Setup

Factory-equipped with Azure Power 195mm main blades and matched tail blades, delivering strong authority, smooth control, and serious 3D capability right out of the box.

• Extreme 3D capability
• Strong tail authority
• Smooth, linear control feel

Sacrificial blade grip arms

Sacrificial blade grip arms help minimize damage and get you back in the air faster and keeping repair costs low.

• Designed to break first in a crash
• Protects blade grips and swashplate
• Reduces repair cost and damage scope

High-Rigidity Rotor Control System

A high-rigidity rotor control system eliminates setup complexity while delivering precise, linear response. Five equal-length control links ensure perfect geometry, while the Stratos 700–inspired reverse-mounted phase arm provides rock-solid rigidity and accurate phasing. Paired with a 120-degree servo layout, it delivers clean, confident control with true big-heli feel.

• Integrated control links
• Ultra-short reverse-mounted phase arm
• 120° evenly distributed servo layout

Factory Pre-Calibrated Setup

Servos are factory-centered and the swashplate is perfectly leveled right out of the box. This eliminates complex setup after assembly and reduces build time significantly. The result is a smoother, more approachable experience for pilots of all skill levels.

Integrated Power and Frame Structure

The integrated power and frame structure combines the main shaft block, center frame, and motor mount into one rigid, compact drivetrain. A gearless drive design eliminates gear mesh and concentricity issues, delivering smoother and more efficient power. The quick-change main shaft allows fast maintenance without removing surrounding components, getting you back in the air sooner.

• Integrated frame structure
• Gearless drive design
• Quick-change main shaft design

Integrated Electronics Layout

The integrated electronics layout features a standard Hobbywing V5 ESC with support for major telemetry systems, including Rotorflight, VBar and Futaba. A dedicated gyro mounting position and integrated PCB gyro plate eliminate external power wires, delivering broad gyro compatibility and a clean, organized wiring setup.

• Hobbywing V5 ESC system
• Integrated motor and ESC layout
• Rotorflight, VBar telemetry, Futaba telemetry, Spirit telemetry
• Compatible with most mainstream gyros
• Gyro plate with integrated PCB

Flexible Battery System

A flexible battery system with an adjustable, tray-less compartment simplifies the design while increasing reliability for a cleaner, more dependable setup.

• Supports 3S to 4S setups
• Maximum battery size: 24mm × 32mm × 70mm

Ultra-Stable Landing Gear

Extra-wide and low landing gear delivers rock-solid stability during takeoff and ground handling. The planted stance prevents forward tipping and gives the helicopter a performance stance and controlled presence on the ground.

Beginner-Friendly Tail Layout

The top-mounted tail motor protects the tail blades from ground strikes, delivering safer, cleaner takeoffs and landings while keeping the tail protected where it matters most.

• Safer and more forgiving for beginners
• Cleaner, more protected tail assembly

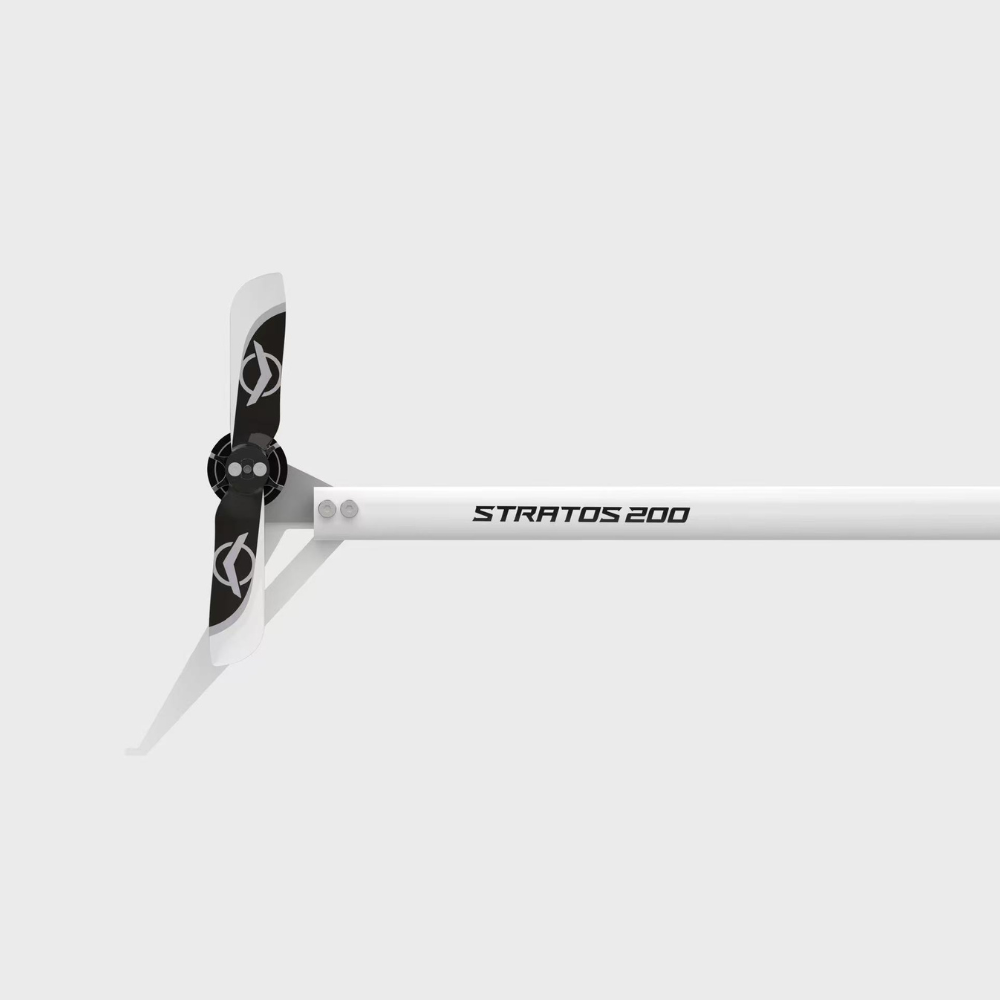

Fast-Service Tail System

The fast-service tail system is engineered for maximum simplicity and speed, featuring a plug-in tail boom with built-in gold connectors for quick removal and installation. An integrated PCB swash guide and servo-style tail ESC eliminate wiring, routing, and soldering, making adjustments fast and frustration-free. The result is a true rapid service design that gets you back in the air in minutes.

• Plug-in tail boom design with built-in gold connectors
• Integrated PCB swash guide combining two functions in one part
• Tail ESC uses servo-style connector
• Contact-type tail motor mount. No wires or soldering
• Rapid-service design.

Package Includes:

• Helicopter with pre-installed servos and integrated motor-ESC
• Azure Power 195mm main blades
• Azure Power 45mm tail blades
• VBar telemetry adapter
• Blade holder
• Spare grip arms and linkages
• Manual
